Appendix A Adept MV-5 and MV-10 Robot Controller Dimensions

Adept MV Controller User’s Guide, Rev. B 219

Adept MV-5 and MV-10 Robot Controller Dimensions

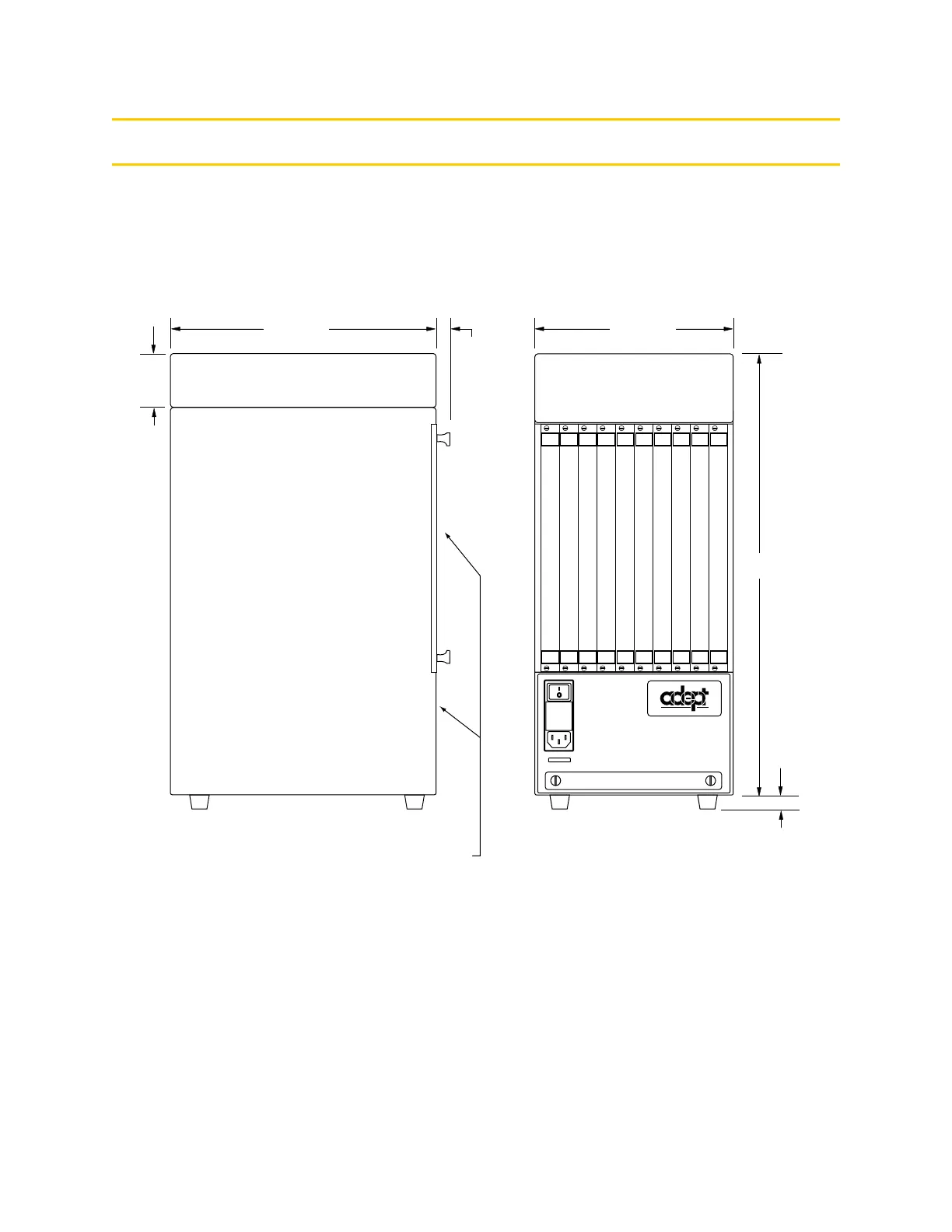

Figure A-2. Adept MV-5/10 Robot Outline Drawing

477.7 mm

15.0 mm

215.9 mm

16.0 mm

286.7 mm

Note 2: Allow 25 mm minimum at top and

bottom for air intake and exhaust.

Note 1: Allow 75 mm minimum at front

for power cord and signal cable

clearance.

57.4

Note 1: Allow 75 mm minimum at front for

power cord and signal cable clearance

Note 1: Allow 25 mm minimum at right

and left sides for air intake and exhaust
