172 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019
Chapter 7 Use I/O Modules
New Module
To use New Module to add a remote I/O module, complete the following
steps.

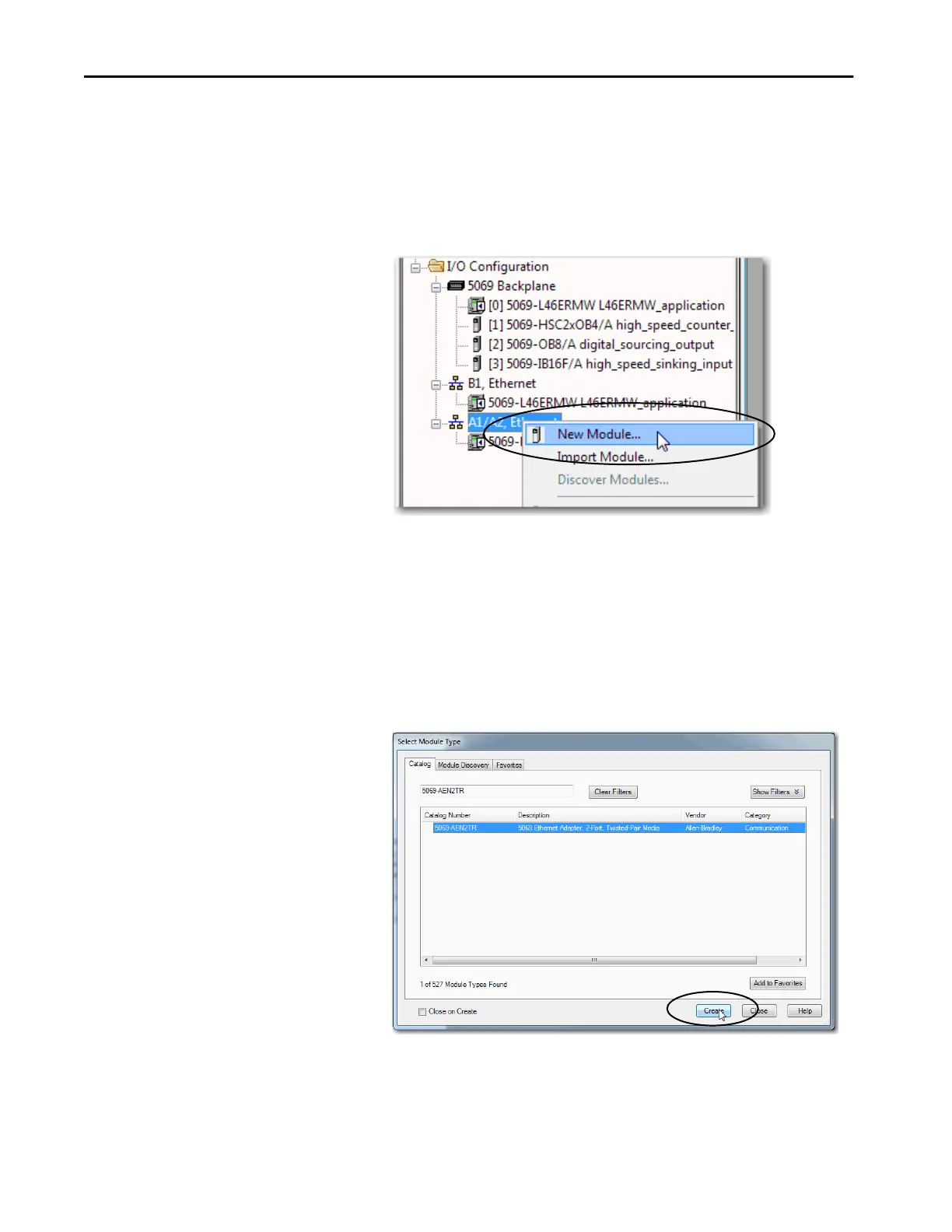

1. Right-click Ethernet and choose New Module.
2. Select the EtherNet/IP adapter and click Create.
TIP
For some modules, the Select Major Revision dialog box can appear.
If the dialog box appears, choose the major revision of the module
and click OK.
Remember, if the Series and Revision parameter values do not
match the values of the module for which this configuration is
intended, your project can experience module faults.
