Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 173

Use I/O Modules Chapter 7

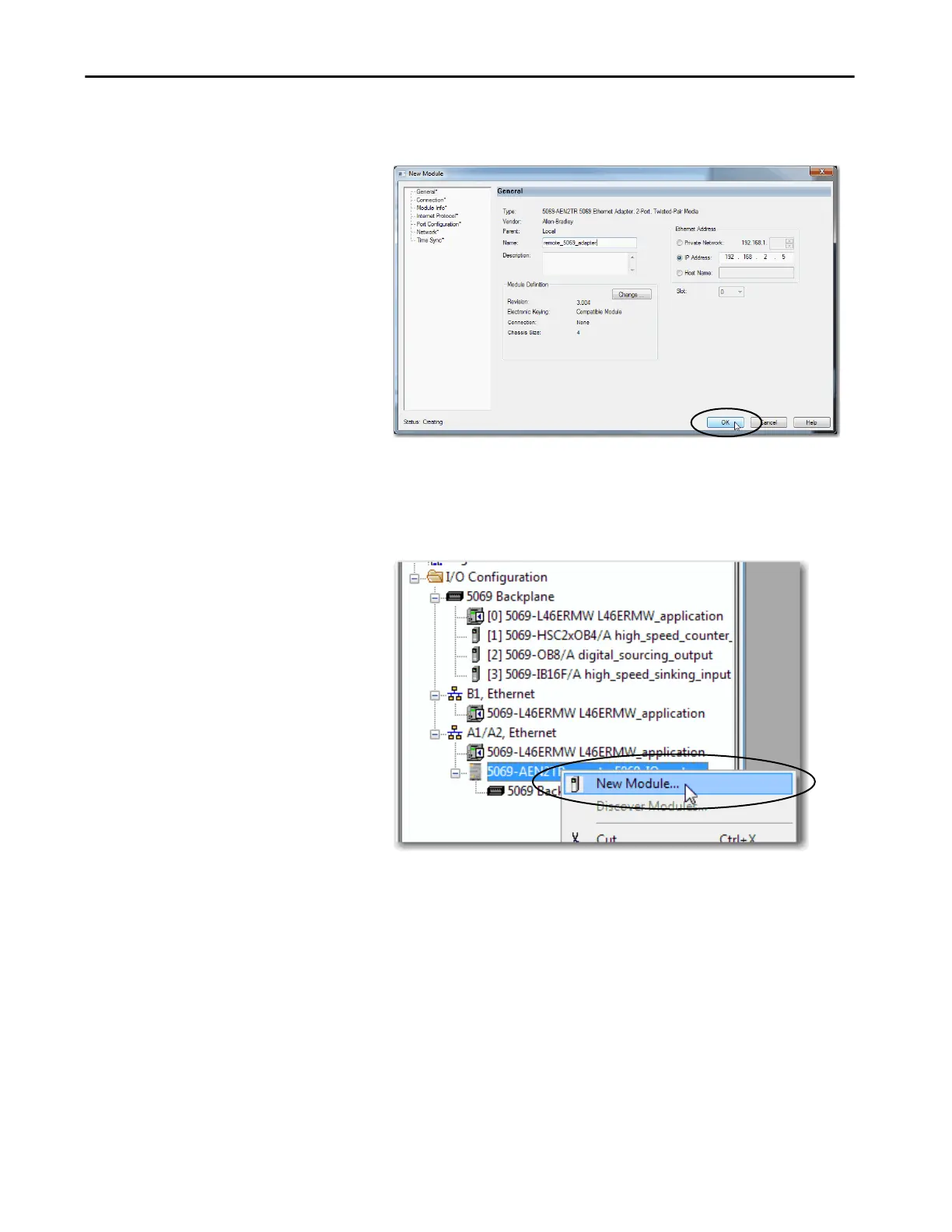

3. At the New Module window, configure the module properties and

click OK.

4. Close the Select Module Type dialog box.

5. Right-click the newly added EtherNet/IP communication module or

the backplane and choose New Module.
