174 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019
Chapter 7 Use I/O Modules

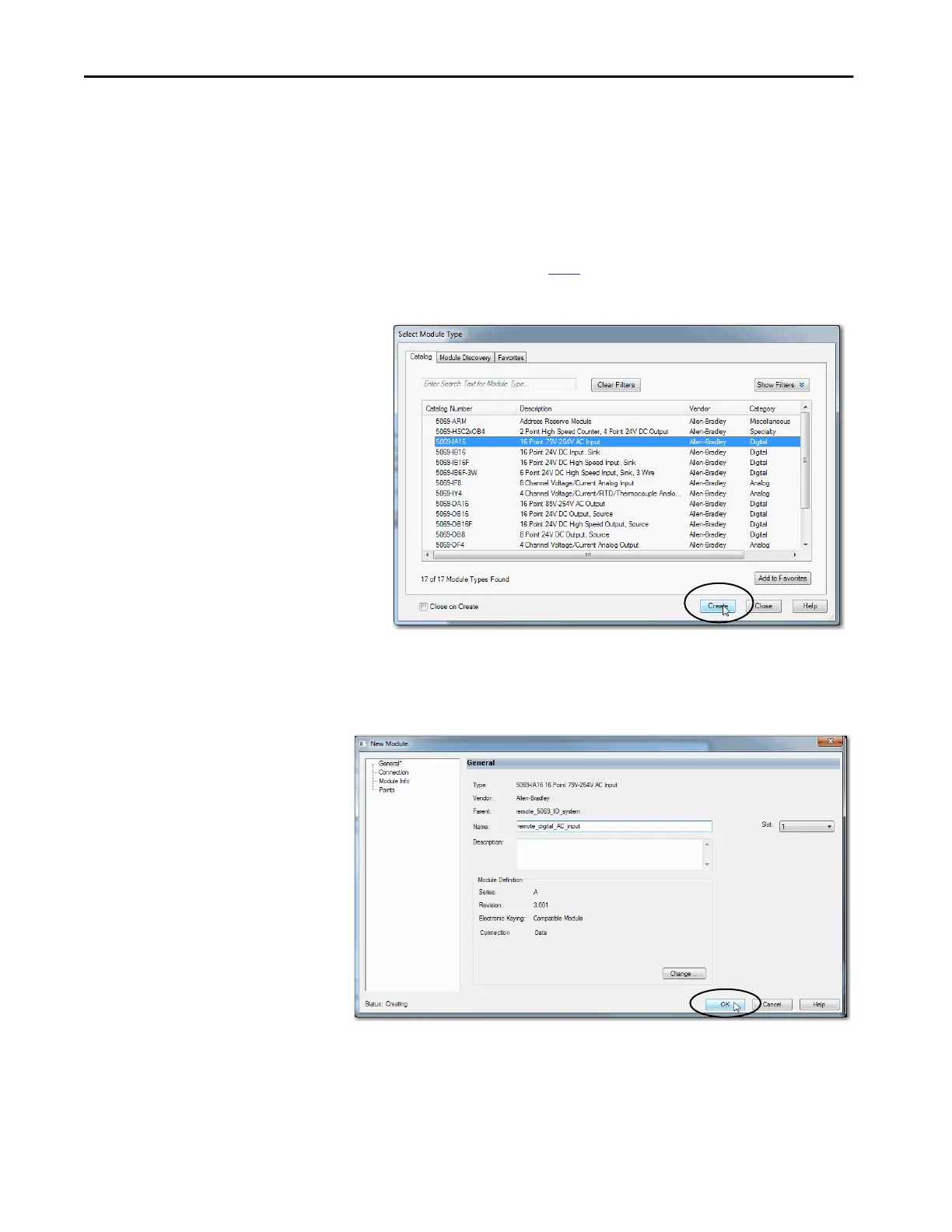

6. Select the I/O module that you want to add and click Create.
7. Configure the I/O module.
8. At the New Module window, configure the module properties and
click OK.
TIP If you must add multiple I/O modules to the same remote location, we
recommend that you clear the Close on Create checkbox before you
click Create.
If the Close on Create checkbox is cleared, when you complete configuration
for an I/O module, the Select Module Type dialog box appears automatically
and you can skip
step 5.
