Chapter 1 CompactLogix 5480 System
• System SA power bus current is calculated as each module draws SA
power bus current. The calculation begins with the controller. The
controller SA power bus current draw used for the calculation is 10 mA
for DC power.
In
Figure 6, after the 5069-IB16 module in slot 1 draws SA power bus
current, the system SA power bus current is 210 mA.
After the 5069-IB6F-3W module in slot 2 draws SA power bus current,
the system SA power bus current draw is 1.110 A. This process
continues until the system SA power bus current is 7.860 A.

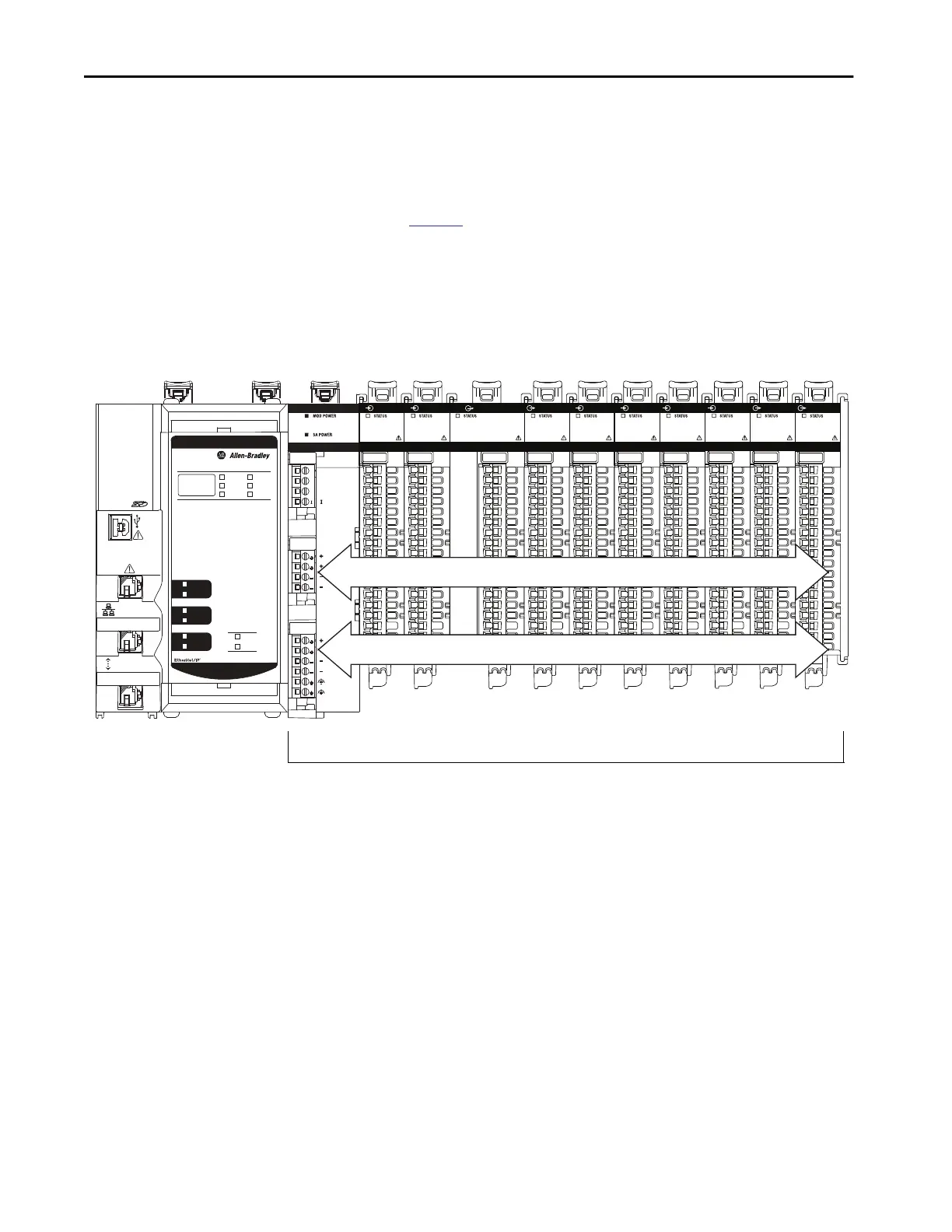

Figure 6 - Calculate SA Power Bus Current Draw
™
NET B1
LINK B1
NET A1
LINK A1
NET A1
NET A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB6F-3W
RELAY OUTPUT
5069-OW16
RELAY OUTPUT
5069-OW4I
COUNTER
5069-HSC2xOB4
COUNTER
5069-HSC2xOB4
ANALOG INPUT
5069-IF8
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF4
Continuous MOD Power Bus Limited to 10 A, Max
Continuous SA Power Bus Limited to 10 A, Max
SA Power Bus Current Per Module 10 mA
System SA Power Bus Current = 7.860 A
200 mA 900 mA 150 mA 0 mA 3 A 3 A 100 mA 100 mA 150 mA 250 mA
