Use a 5069-FPD Field Potential Distributor to Create a New SA Power Bus
You can use a 5069-FPD field potential distributor to add an SA power bus to a
CompactLogix 5480 system.
The field potential distributor blocks the current that passes across the SA
power bus to the left of the field potential distributor. Then the field potential
distributor establishes a new SA power bus for modules to the right.
The new SA power bus extends to the last module in the system or until
another field potential distributor establishes another SA power bus.
The SA power bus that a field potential distributor establishes functions in the
same way as the SA power bus that a controller or adapter establishes.

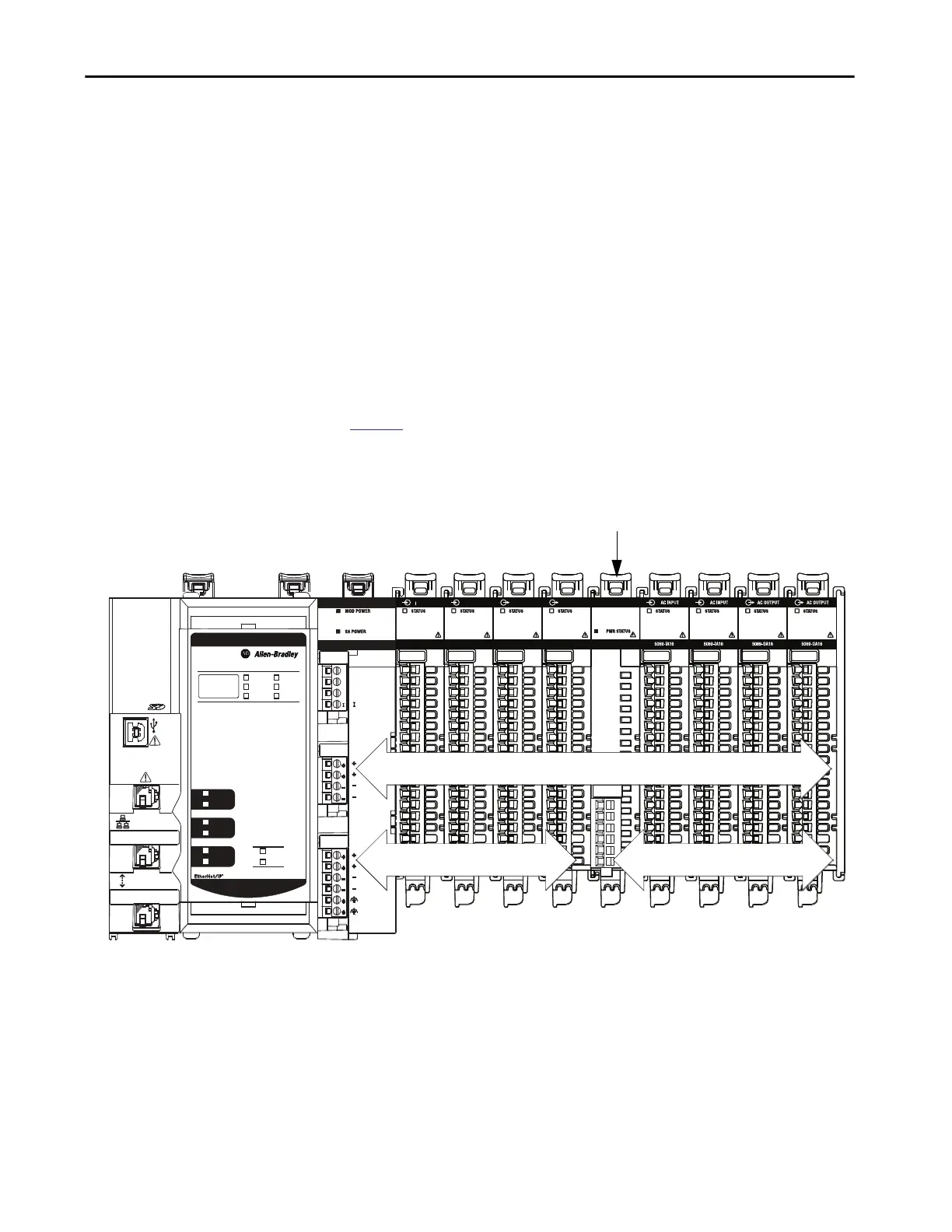

Figure 7 shows a CompactLogix 5480 system that uses a 5069-FPD field
potential distributor to create a second SA power bus.
Figure 7 - CompactLogix 5480 System - Create a New SA Power Bus
DC INPUT
5069-IB16
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
DC OUTPUT
5069-OB16
5069-FPD
FIELD POWER
™
NET B1
LINK B1
NET A1
LINK A1
NET A1
NET A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
DC OUTPUT
5069-OB16
5069-FPD
FIELD POWER
™
NET B1
LINK B1
NET A1
LINK A1
NET A1
NET A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
MOD Power Bus
5069-FPD Field Potential Distributor
SA Power Bus Providing DC Power SA Power Bus Providing AC Power
