Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 33

CompactLogix 5480 System Chapter 1

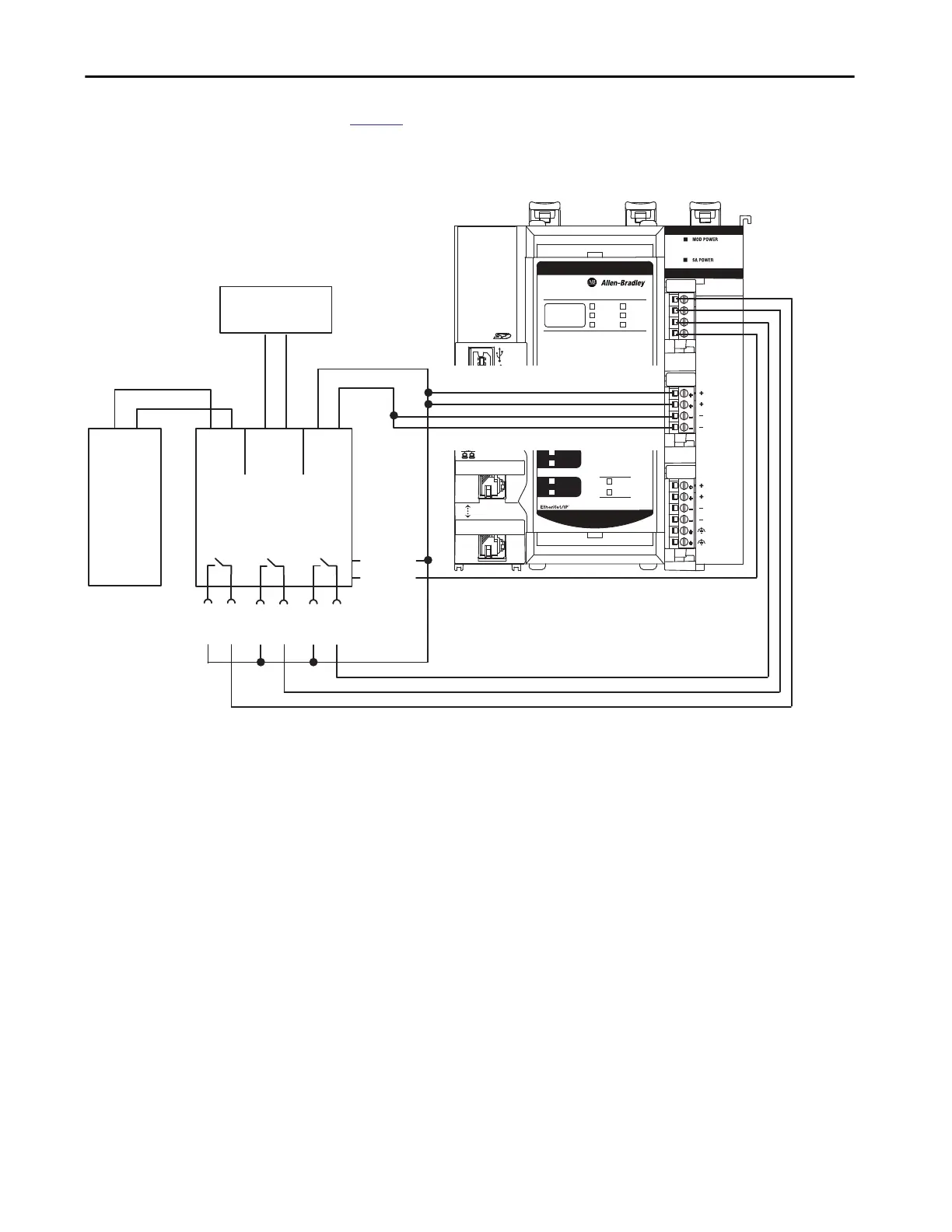

Figure 8 shows a 1606-XLS240-UPS power supply that is connected to a

CompactLogix 5480 controller.

Figure 8 - Power Connected to UPS RTB

™

NET B1

LINK B1

NET A1

LINK A1

NET A1

NET A2

SPEED X1

LINK X1

RUN

FORCE

FAN 1

FAN 2

CompactLogix 5480

5069-L46ERMW

CONTROLLER

UPS

UPS Ready

Buffering

Battery Fail

Inhibit

(7) Inhibit +

(8) Inhibit –

24V DC

Power

Supply

Ready

(1) (2)

+–

+– +– +–

NLPE

Buffering

(3) (4)

Battery Fail

(5) (6)

12V DC Battery

+–

DC-UPS

24V

12V

BAT

24V

OUT
