Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 47

Connect to the Controller Chapter 2

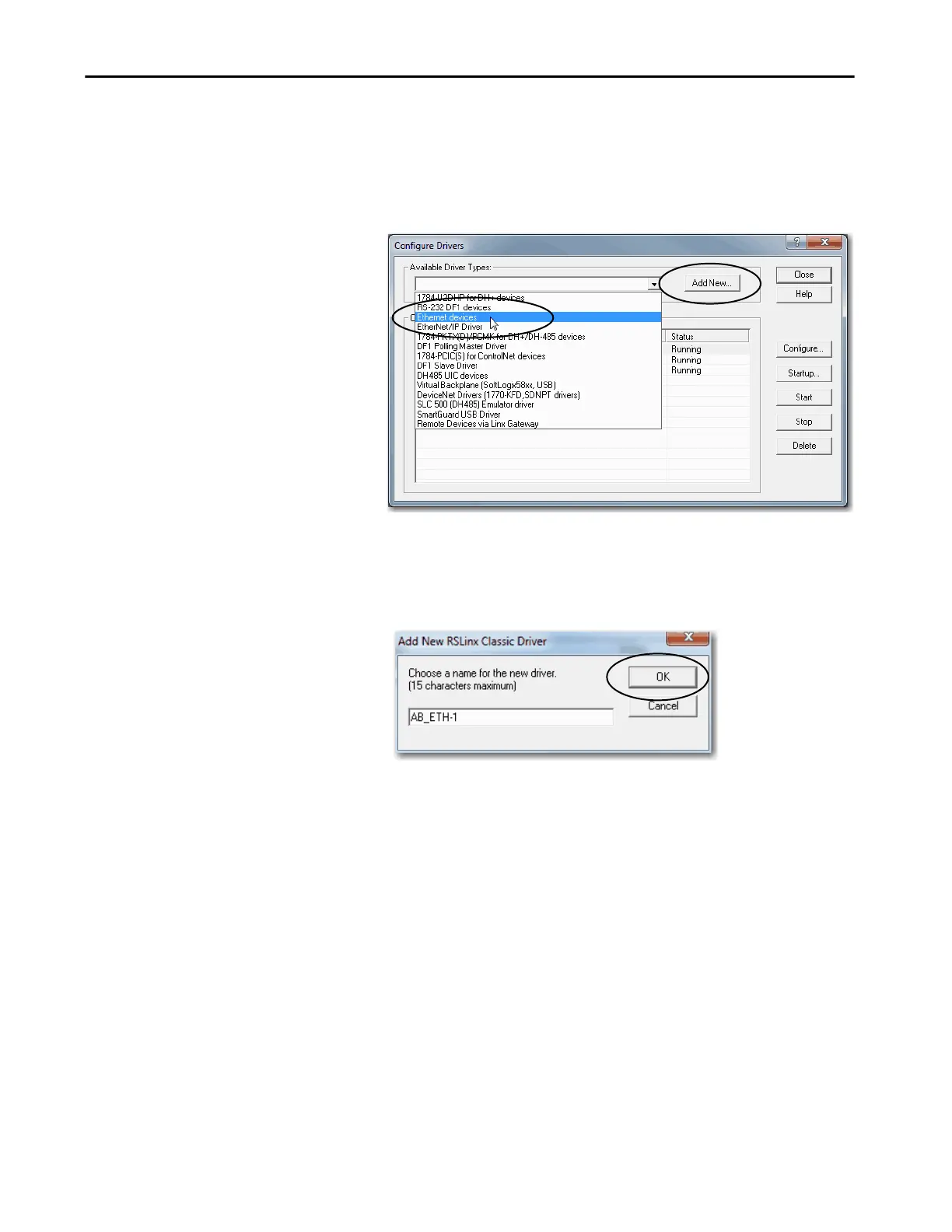

The Configure Drivers dialog box appears.

2. From the Available Driver Types pull-down menu, choose

Ethernet devices.

3. Click Add New.

The Add New RSLinx Driver dialog box appears.

4. You can use the default name for the new drive or type a new name, and

click OK.
