9960 Self-Propelled Peanut Combine Ground Drive and Rear Axle Service
MAN091 06/03/05 191
Drive Wheel Bolt Torque
1. Each time a drive wheel is repositioned or
replaced, torque the wheel bolts to 200
N*m (150 lb/ft) without using a torque
multiplier. Tighten the bolts in a criss-
cross pattern.
2. Use a 4 to 1 torque multiplier and turn bolt
head ¼ turn (ratchet or torque wrench will
make a full turn). Pull the multiplier handle
against inside of wheel when you tighten
bolts.

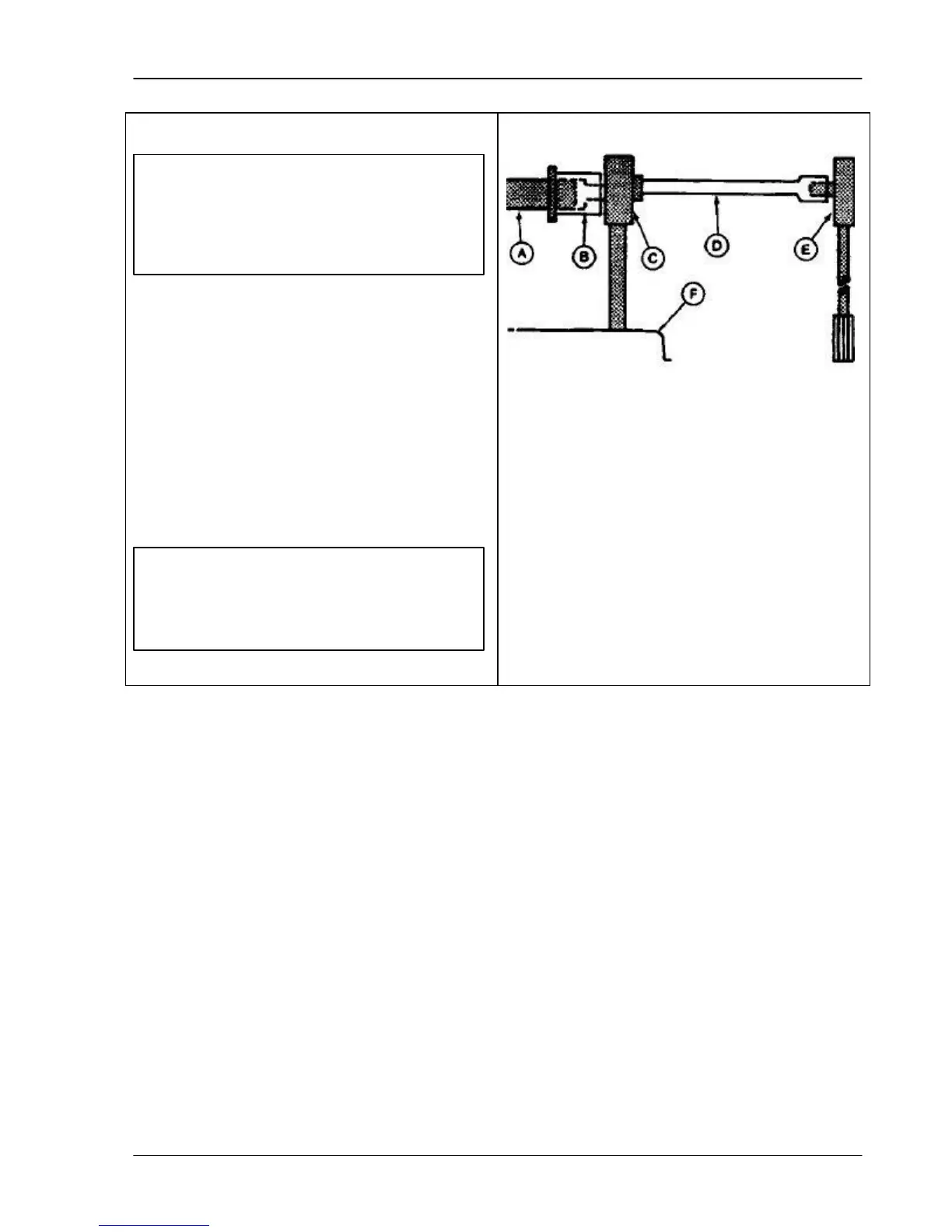

A – Wheel bolt
B – 30 mm socket ( ¾ in drive)
C – 4 to 1 multiplier (1000 lb/ft capacity) ½
in. input drive ¾ in. output drive
D – ½ in. drive x 18 in. long extension
E – Torque wrench
F – Wheel
Wheel bolts must be clean
and free of lube before they are installed.
Torque valve is for clean, dry bolts.
Lubricating reduces friction and overloads
the bolts.
100mm (4 in.) wheel spacers, turn
bolt head ½ turn (ratchet or torque wrench
will make two full turns).
To Next Page
