Digital Display Lines
The upper line of the digital display shows the
ground speed in miles per hour (MPH).
The middle and lower lines can display the
same data. You can select any of the
following to be displayed:
• Engine speed (MPH)
• Cylinder speed (RPM)
• Header auger speed (RPM)
• Elevator fan dampener speed as a relative
number.
Use the display as follows:
• To display the engine and separator hours,
press the hour switch (photo). The engine
or separator hours display on the second
line, along with the symbol indicating which
is displayed. The hours display for 10
seconds or until you press another switch.
• To display cylinder speed, press the
cylinder speed switch (photo).
• To display header auger speed, press the
header auger speed button (photo).
• To display the speed of the elevator fan
dampener, press the elevator fan
dampener button (photo).
The middle and lower display always show the
last information displayed when the key was
turned off.

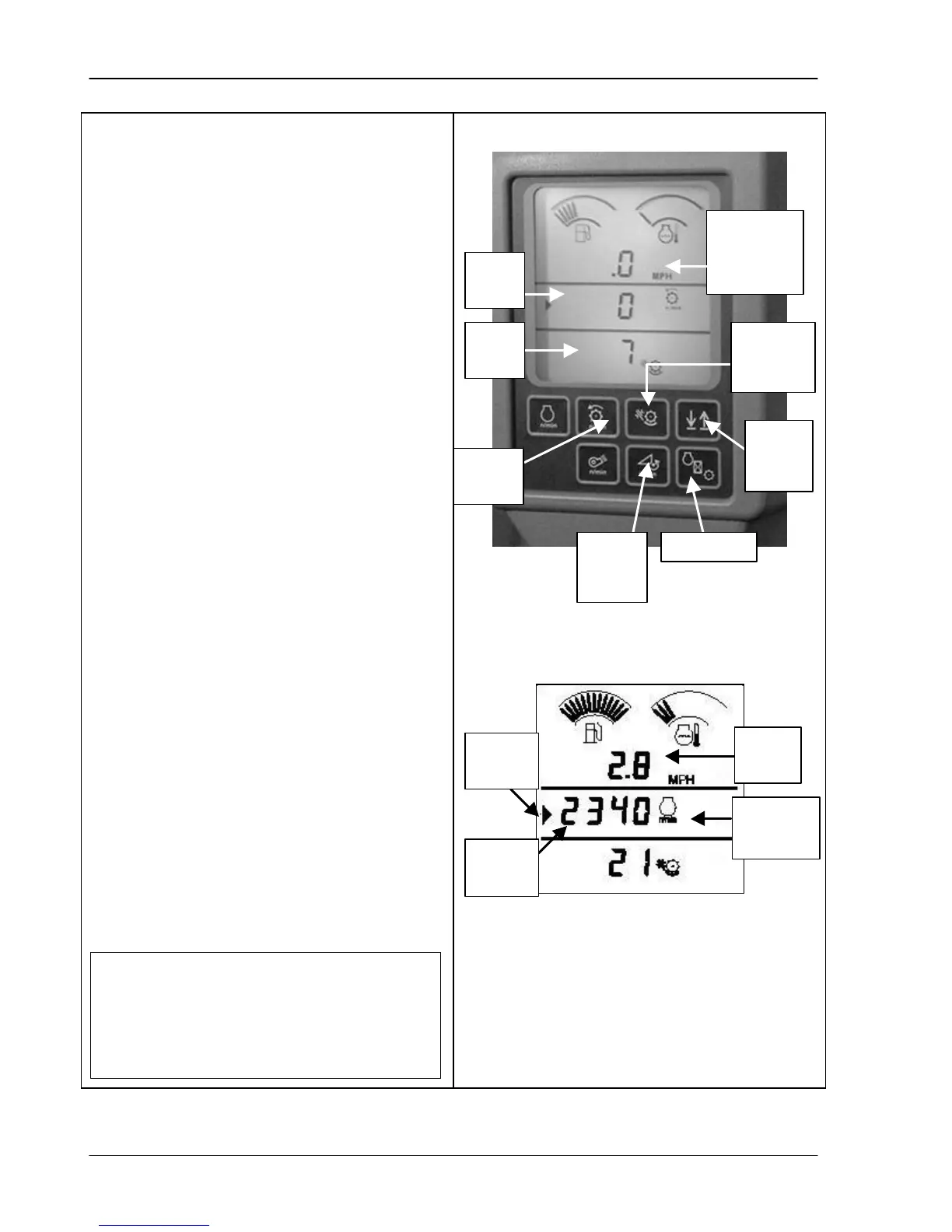

The indicator arrow (sketch) displays on the
line that is currently active. Press the up/down
arrow button (photo) to move the indicator
from one display line to the next.
Hour switch
Upper line
;
displays
only ground
speed
Up/
Down
arrows
Middle
line
Lower
line
Indicator
arrow
Ground
speed
Symbol for
engine or
separator
Number
of hours
Header
Auger
Speed
Elevator
Fan
Dampener
NOTE:
When the elevator fan or cylinder
speed is changed, that function will take
over the bottom display line during the
change and for a short time after the
change is made.
Cylinder
speed
