9960 Self-Propelled Peanut Combine Operator’s Station
MAN091 06/03/05 37
Unloading Conveyor Drive Button
(Off-load Conveying System (OCS) option
only)

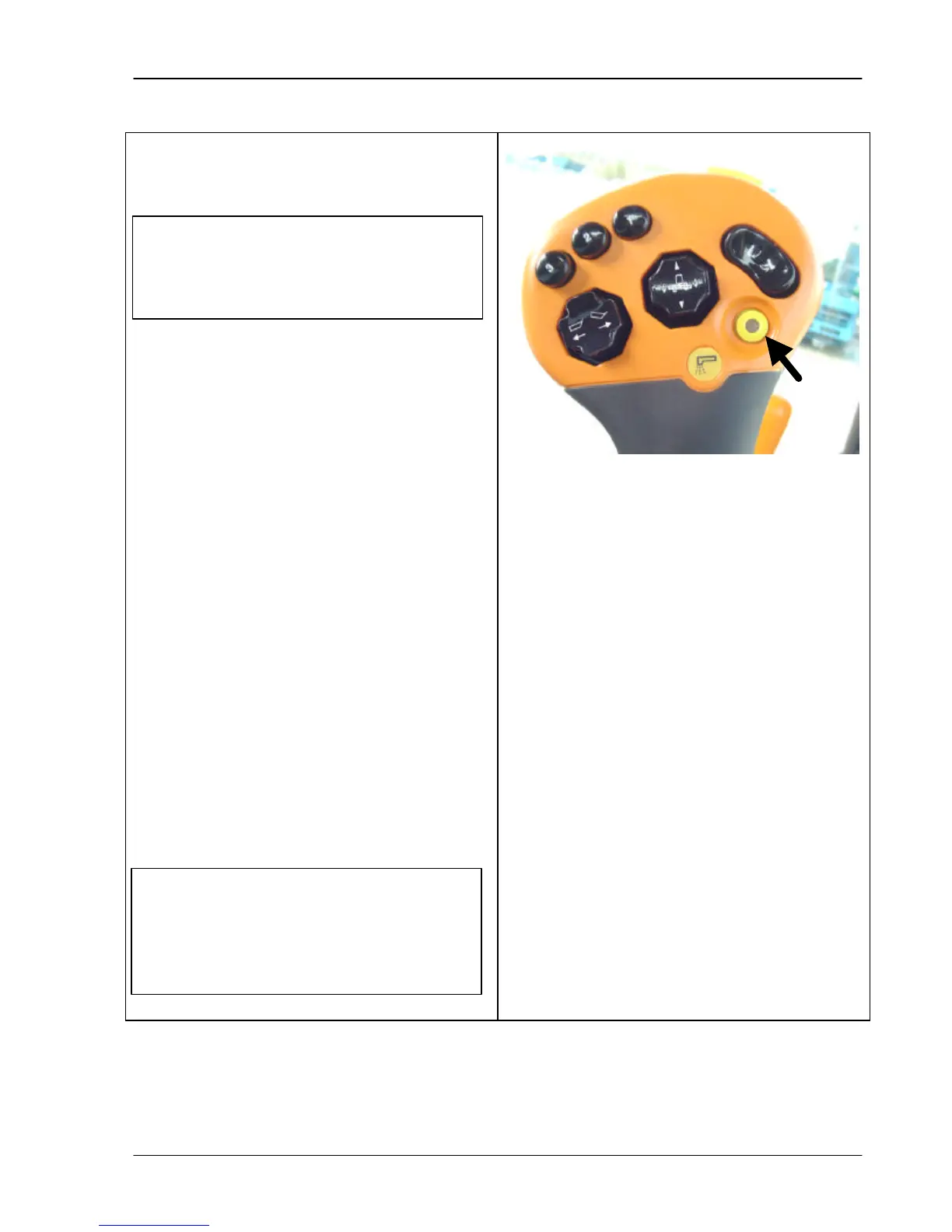

The unloading conveyor drive switch is used
for combines equipped with the OCS option. It
is used to turn the unloading drive on the
conveyor on and off.
To start the unloading conveyor, press the
button. A light in the middle of the button
comes on to indicate the conveyor is
unloading. To stop the conveyor, press the
button again. The light goes out to indicate
the conveyor has stopped.
If you need to stop the conveyor quickly, you
can also use the Quick Stop switch. If you
stop the unloading conveyor with this switch,
press the unloading button once to start up the
conveyor again.
The unloading conveyor will engage only while
the button is pressed if the conveyor is less
than 50% extended. Once the conveyor has
passed 50% extension and the button is
pressed, the unloading conveyor drive will stay
engaged until the button is pressed and
released again or the quick stop button is
pushed.
The indicator light for the road
transport disconnect switch must be OFF
for you to be able to turn on the unloading
conveyor drive.
second time lag is factory
set for the conveyor, which means the
unloading auger starts five seconds after
the conveyor. To change the
Chapter 12, Unloading Conveyor.
