Amadas 9960 - Header Height Activation Buttons; Quick Stop Switch

Operator’s Station 9960 Self-Propelled Peanut Combine
34 06/03/05 MAN091
Header Height Activation Buttons
The header height activation buttons perform
the following functions:
• Header height resume
• Header height sensing.
Header height is controlled using the header
height activation buttons, the header engage
switch, and the top monitor on the cornerpost.
A description on how to use these buttons
begins on page 41.

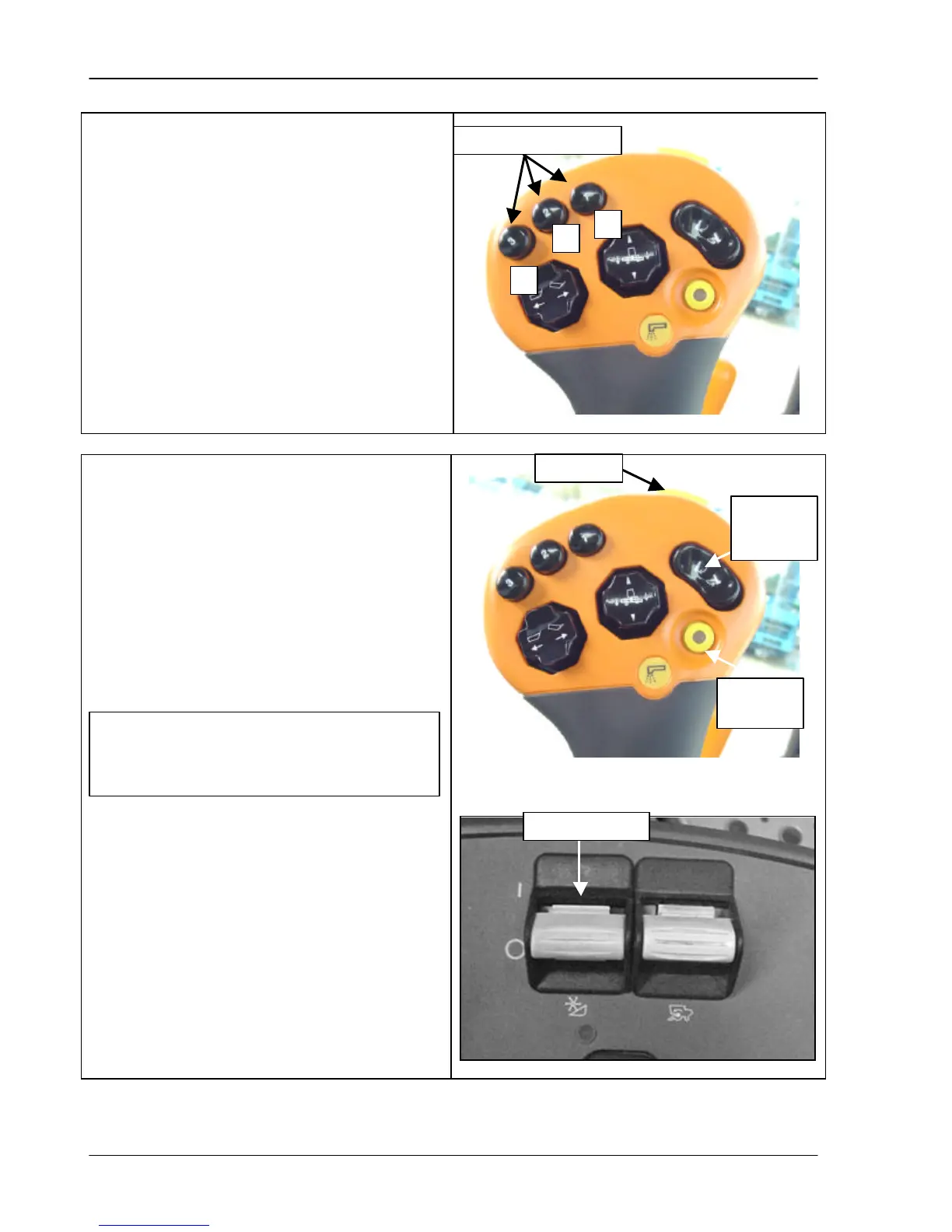

Quick Stop Switch
The quick stop switch shuts off the header
engage, unloading conveyor drive, and
conveyor swing at the same time. Press the
switch once to stop all of these items at the
same time.
To restart the conveyor swing or drive, press
the appropriate button on the handle (top
photo). To restart the header drive, turn the
header engage switch located on the armrest
panel on and off (bottom photo).
Header height buttons
1
2
3
Q
uick stop
IMPORTANT!
The header drive can be
disengaged by this switch in case of
malfunctions.
Unloading
conveyor
Unloading
conveyor
swing
Header engage
