Operator’s Station 9960 Self-Propelled Peanut Combine
36 06/03/05 MAN091

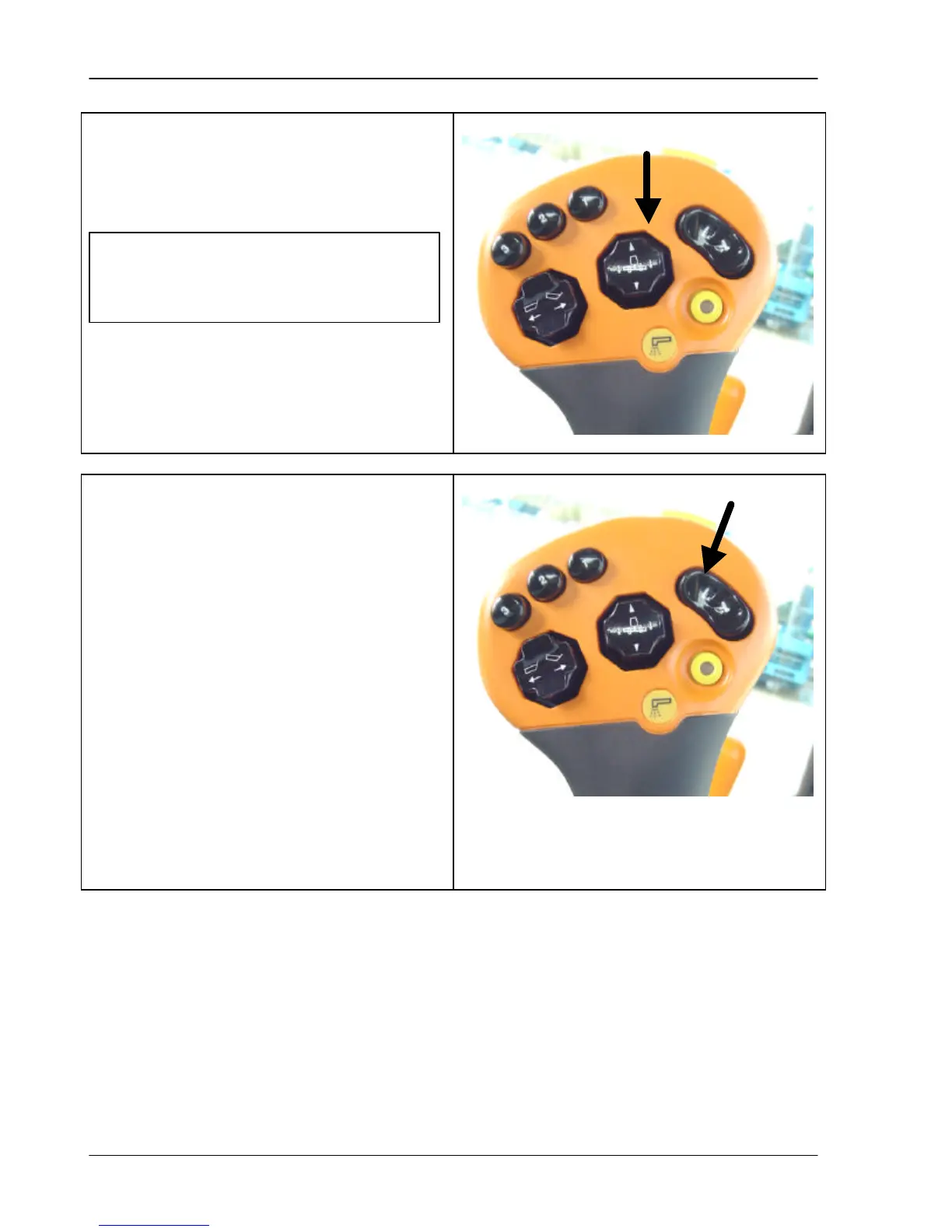

Header Lift Switch
The header lift switch raises and lowers the
header. Press and hold the top of the button
to raise the header. Press and hold the
bottom of the button to lower the header.
Conveyor Swing Switch OR
Dump Combine Lip Extend and Retract
This switch is used to swing the Unloading
Conveyor in or out for combines equipped with
the Off-load Conveying System (OCS)
option.
Otherwise, it is used to extend and retract the
bin lip and to dump the bin.
To use the switch, press the top of the switch
to swing the conveyor out or retract the bin lip,
as applicable. Press the bottom of the switch
to swing the conveyor back in or extend the
bin lip.
This switch has two stages. The first detent
you feel in either direction is for manual
control. If the switch is completely pressed
and held for three seconds, the operation in
that direction continues automatically. Any
change in switch position cancels the
automatic mode.
NOTE!
The indicator light for the road
transport disconnect switch must be OFF
for the header lift switch to function.
