9960 Self-Propelled Peanut Combine Unloading Conveyor
MAN091 06/03/05 203
Using the Conveyor
1. Press the top of the conveyor swing switch
(bottom photo) on the multi-function handle
to swing the conveyor out. This switch has
two stages. The first detent you feel in
either direction is for manual control. If the
switch is pressed fully (the second detent)
and held for two or more seconds, the
conveyor will automatically swing for 12
seconds. Any change in the position of the
switch during automatic mode cancels the
automatic mode.
2. Press the conveyor unload button to start
the conveyor. A light in the middle of the
button comes on to indicate the conveyor
is unloading and the button functions as
follows:
• If the conveyor is swung out more than
50%, the conveyor will continue
unloading automatically once you
press the conveyor engage button.
• If the conveyor is swung out less than
50%, you must continue to hold down
the conveyor engage button to keep
the conveyor unloading.
There is a five second delay between the
time the conveyor starts and the time the
augers start moving material onto the
conveyor.
3. To stop the conveyor, press the button
again. The light goes out to indicate the
conveyor has stopped.
The indicator light for the road
transport disconnect switch must be OFF
for you to be able to turn on the off
loading conveyor drive.

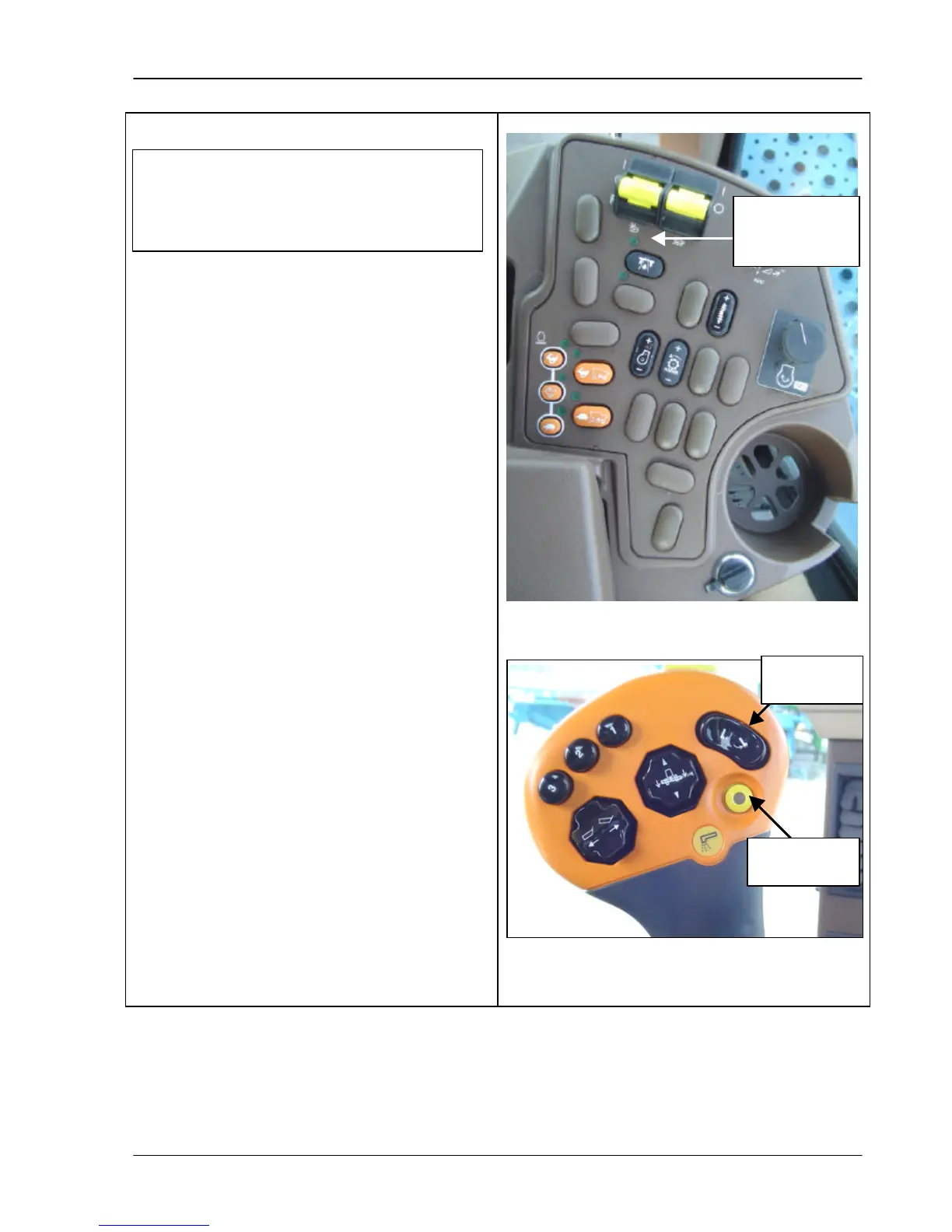

unload button
swing switch
