9960 Self-Propelled Peanut Combine Ground Drive and Rear Axle Service
MAN091 06/03/05 197
Rear Axle Adjustment
10. Re-torque the first side to 620 N*m (460
lb/ft), then re-torque the second side to
N*m (460 lb/ft).

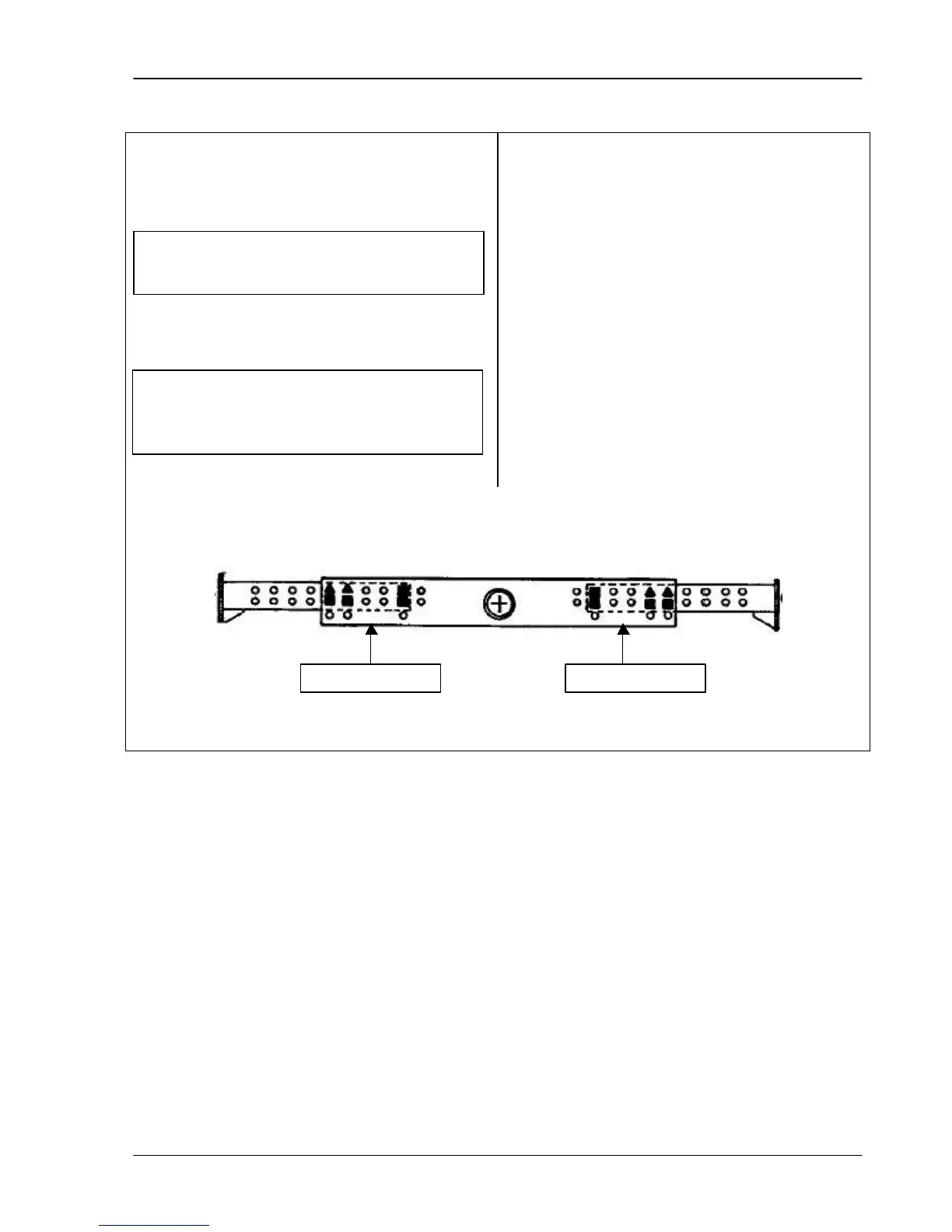

Drive Spacing Chart
Clamp bolts = black squares
Steering cylinder mounting bolts = black triangles
followed because the bolts “relax.”
The steering cylinder anchors may
move slightly if the
the full left or right while on cement.
