Working with Workspace Files
14
NetLinx Studio - Instruction Manual
9. Enter a name for the new System in the text box. To enter an optional text description (2,000 characters max) for the
new System, click Workspace File Description and enter the description in the System Description dialog
(FIG. 25). Click OK to return to the System Information dialog.
10. Click Next to proceed to the Assign System ID dialog (FIG. 26).
11. To associate a System ID to the new System, enter the System ID in the text box. By default the ID is set to zero
(0 = this System).
12. Click Next to proceed to the System Communications dialog (FIG. 27). This dialog displays the current Master
Communication Settings (read-only).

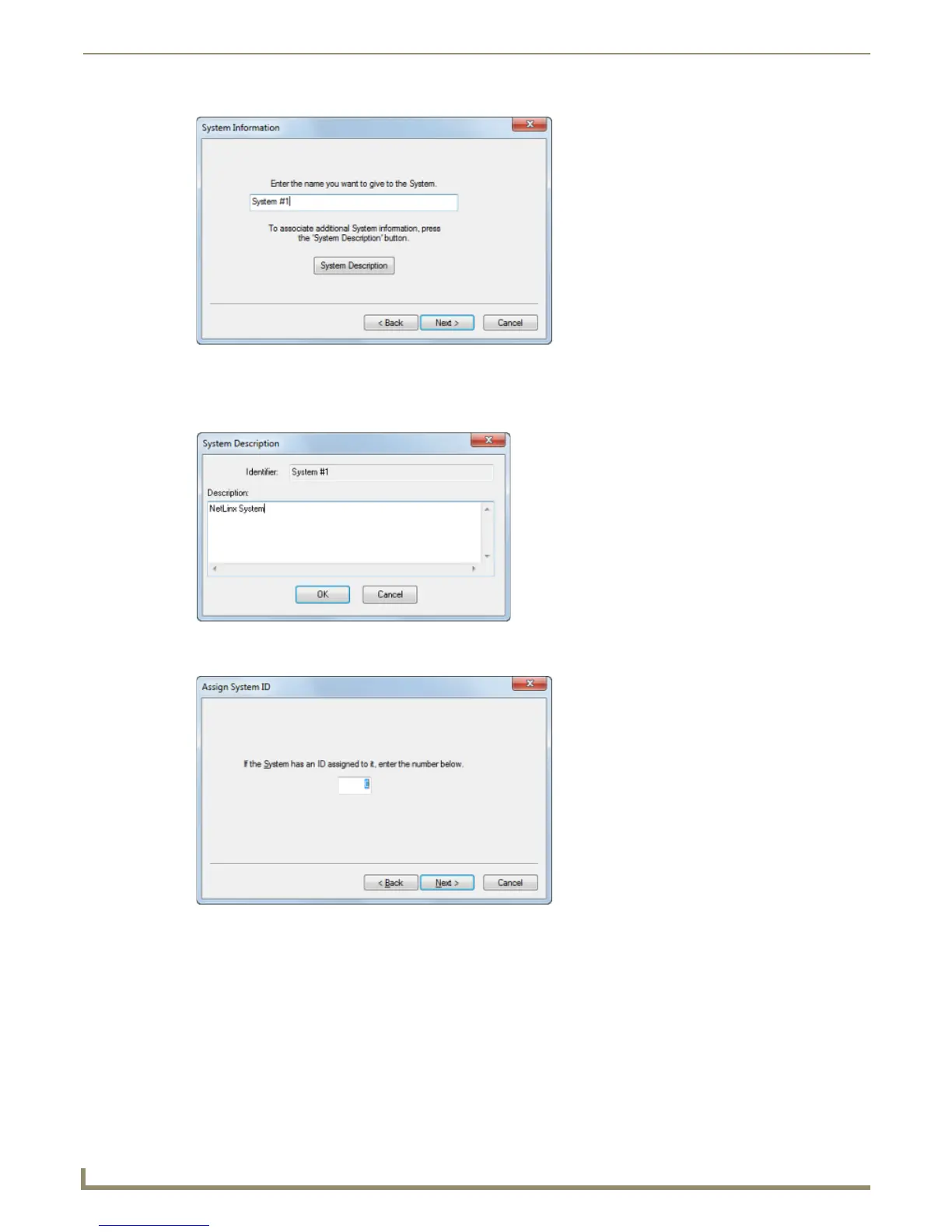

FIG. 24 System Information dialog
FIG. 25 System Description dialog
FIG. 26 Assign System ID dialog
