Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.

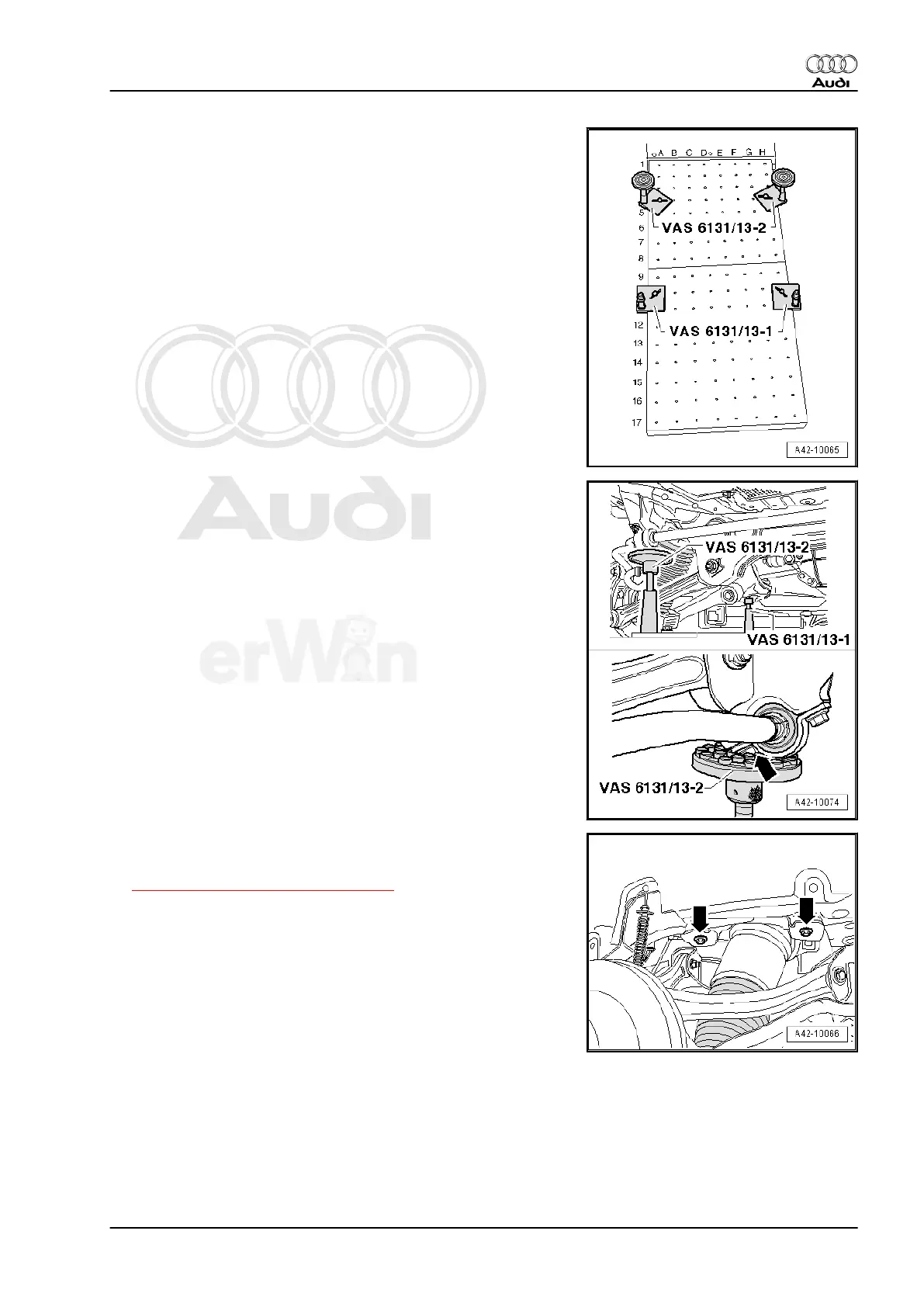

Attach both Supports - VAS 6131/13-1- and -VAS 6131/13-2-
from Scissor Lift Table - Q7 Set - VAS6131/13- on Scissor Lift
Table - VAS6131- .
Support subframe with Scissor Lift Table - VAS6131- .
Support rear of subframe so that front screw from stabilizer bar
bracket is located in center of Mount - VAS 6131/13-2-
-arrow-.
Mark position of crossmember on body using felt-tip pen.
Remove left and right screws -arrows- from crossmember.
Secure subframe, refer to
⇒ “2.3 Subframe, Securing”, page 128 .
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
2. Subframe, Stabilizer Bar, Coupling Rod and Stone Deflector 127
