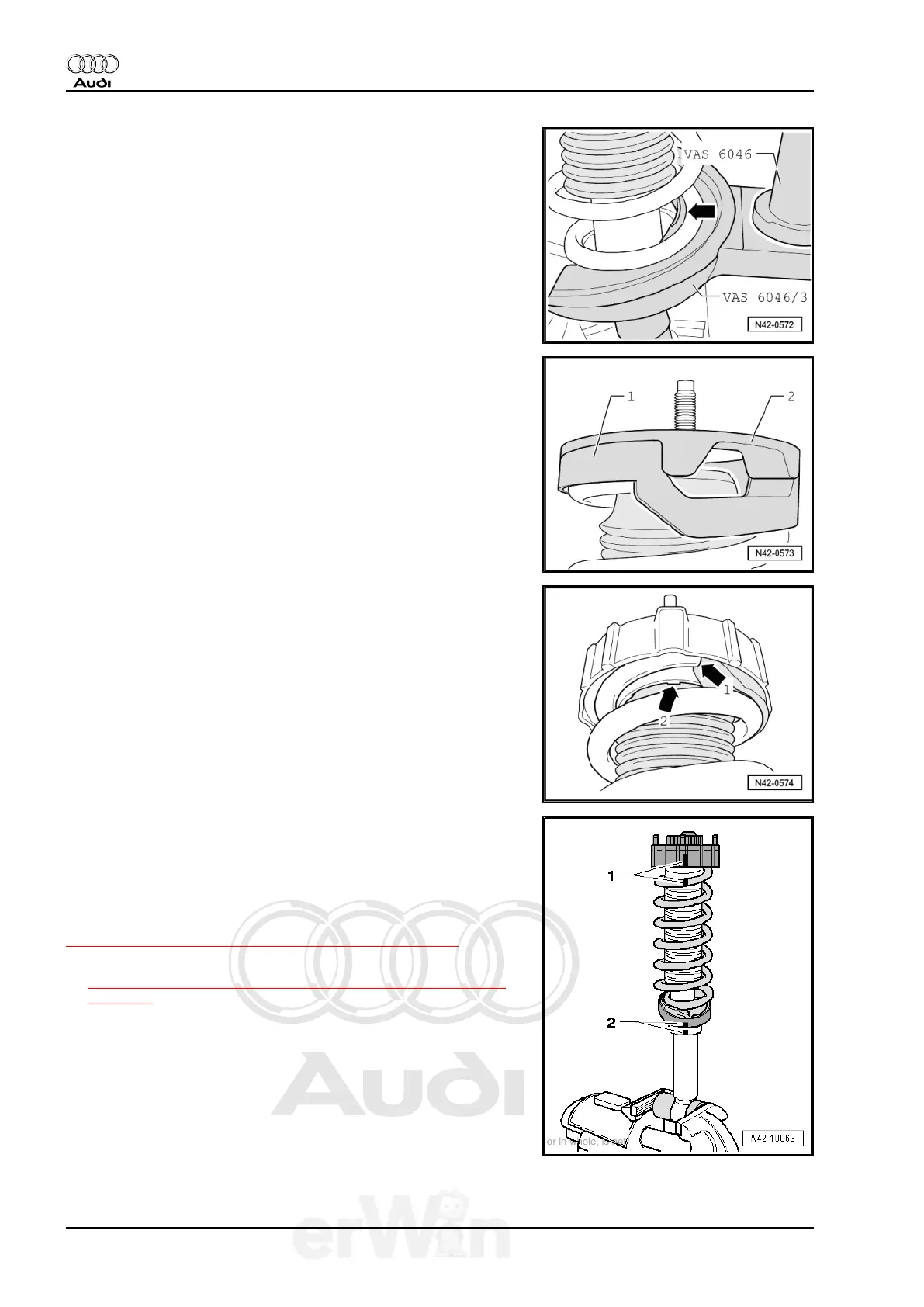

Assembling
Place coil spring on Spring Support - VAS6046/3- at bottom.
Make sure that coil spring is seated correctly in Spring Support
- VAS6046/3- -arrow-.
Place upper backing plate -1- onto coil spring and upper wash‐
er -2- on upper backing plate.
End of spring coil -arrow 1- must rest against upper washer
stop.
Make sure that protective sleeve -Arrow 2- is clipped into up‐
per spring plate.
Install new nut on piston rod.
Before releasing coil spring tension, rotate upper spring plate,
coil spring and lower spacer in relation to each other so that
-marking 1- and -marking 2- align.
Relieve the tension on the Spring Tensioner - VAS6046- and
remove from the coil spring.
Tightening specifications, refer to
⇒ “5.3 Coil Spring Suspension Strut Overview”, page 163 .
Suspension strut, installing, refer to
“5.2 Coil Spring Suspension Strut, Removing and Installing”,
page 162 .
