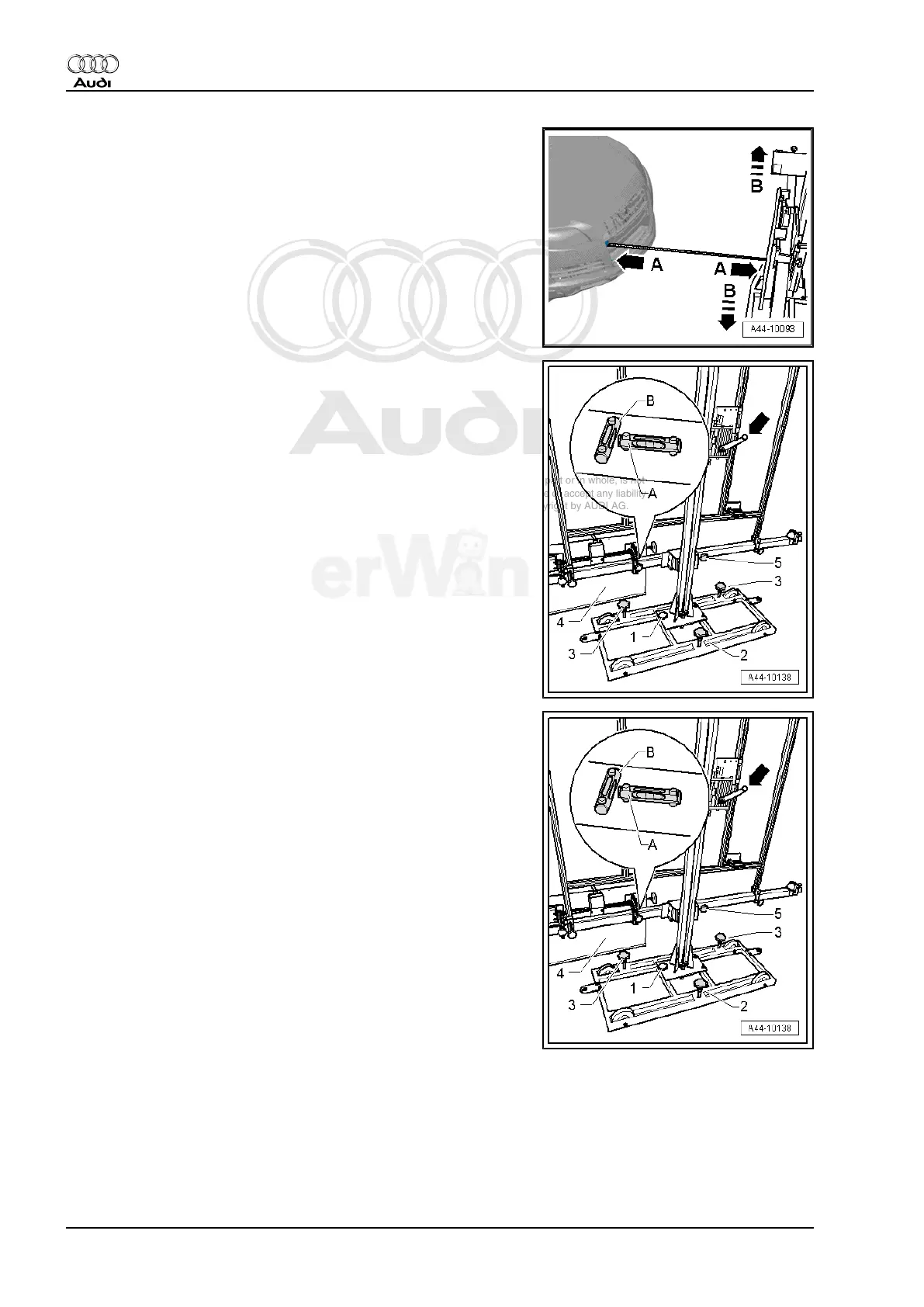

– Now align by sliding it sideways -arrows B- ACC Adjustment
Device - VAS 6430- so that the laser beam is horizontally cen‐
tered on the senor lens.
– Level the bubble levels -A- and -B- on the ACC Adjustment
Device - VAS 6430- using the adjusting screws -1-, -2- and
-3-.
– Adjust the mirror -4- using the crank -arrow- on the ACC Ad‐
justment Device - VAS 6430- so the laser beam is vertically
centered on the sensor lens.
– Adjust the same front axle individual toe settings using fine
adjustment screw -5-.
– The difference between individual toe values must be less
than 6' or they must be the same.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
266 Rep. Gr.44 - Wheels, Tires, Wheel Alignment
