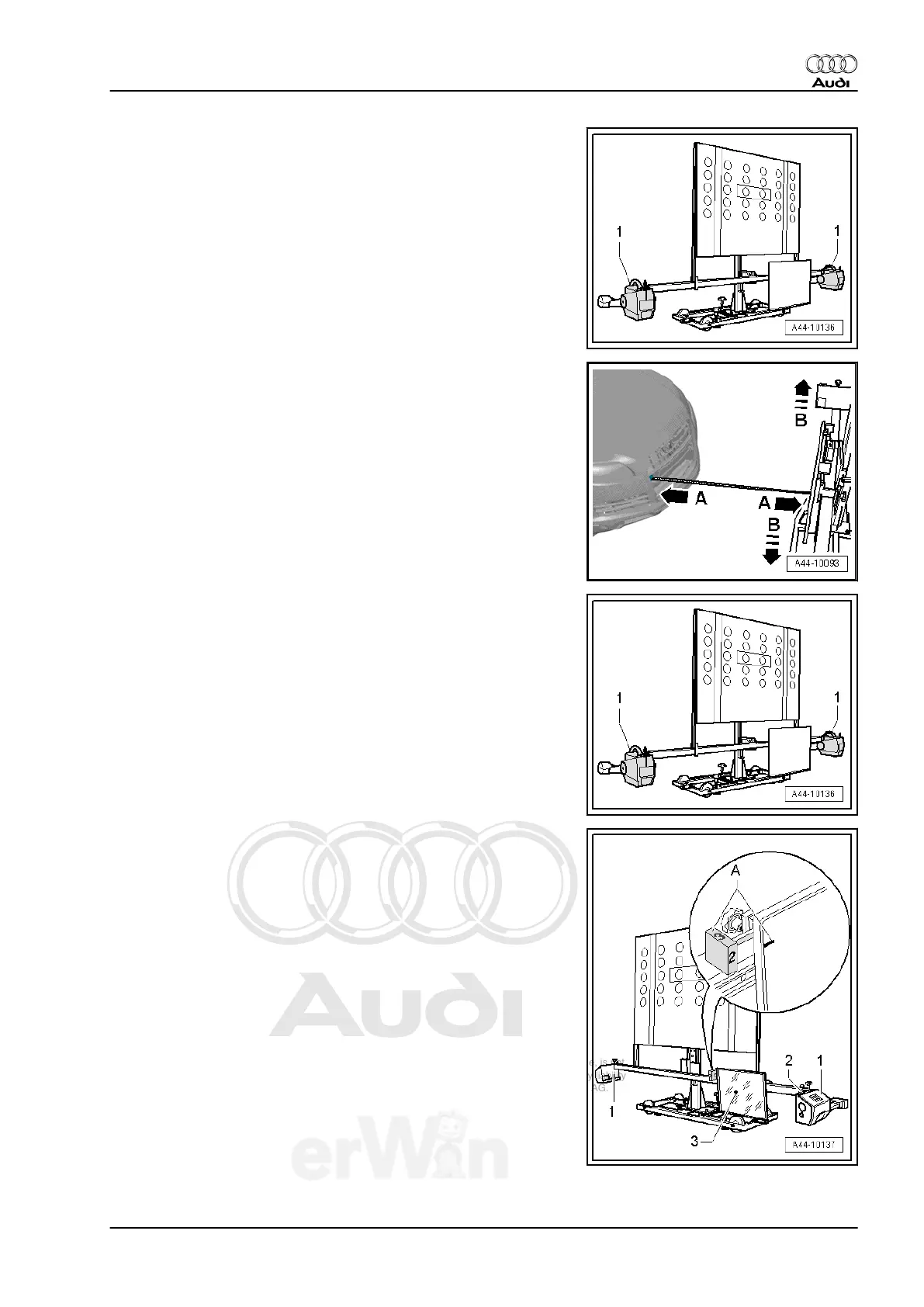

– If necessary, remove the mirror installed at the center and in‐
stall it all the way at the right near the vertical slits.
– Position ACC Adjustment Device - VAS 6430- at a distance
-A- of 120 cm +/- 5 cm from sensor lens to mirror surface.
– Install the front wheel measuring sensors -1- on the ACC Ad‐
justment Device - VAS 6430- .
– In area -A-, bring item -2- on rotary knob into alignment with
marking on mirror (number 2 on rotary knob must face toward
vehicle).
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
6. Adaptive Cruise Control 265
