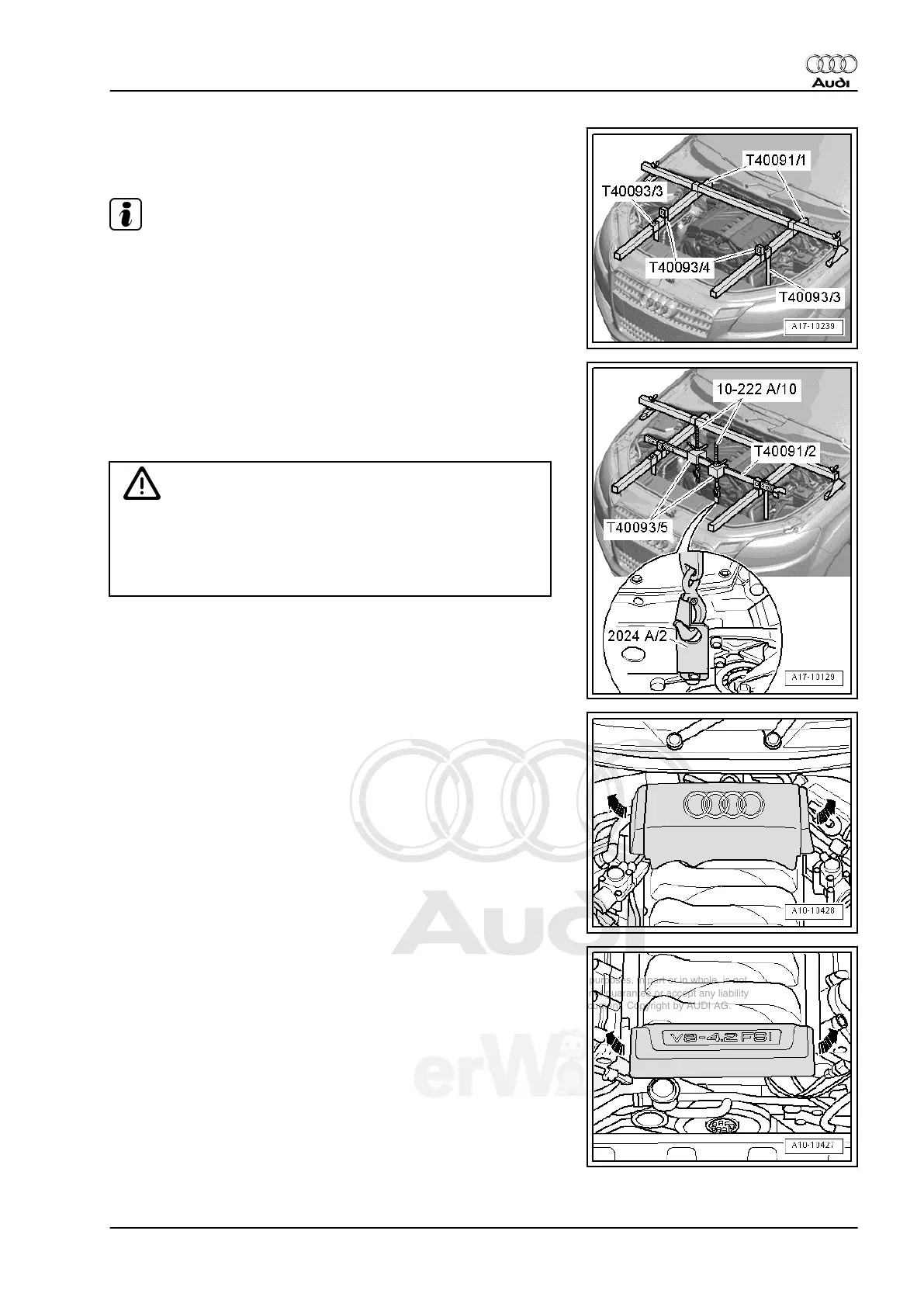

– Attach the parts from the Engine Support - Basic Set - T40091-
and from the Engine Support - Supplement Kit - T40093A- as
illustrated.
Note
Mount the Engine Supports Bracket - T40093/3- to the notches
on the longitudinal member. Push the left refrigerant lines to the
side and out of the way.
– Push the Support - T40091/2- with both Slides - T40093/5- into
both Mounts - T40093/4- .
– Install the long spindles from the Engine Support Bridge -
10-222A- and engage the hooks to the front engine lifting eye
and to the Engine Sling - Cover Plate - 2024A/2- .
WARNING
Loose parts on the engine support bridge can cause serious
personal injury.
♦ Secure the Support - T40091/2- with the connector pins
and Mounts - T40093/4- .
– Tension engine by tightening 2 spindles evenly.
Affects Vehicles with 4.2L FSI Engine
– Remove rear engine cover -arrows-.
– Remove front engine cover -arrows-.
– Remove left and right air filter housing ⇒ Rep. Gr. 24 .
