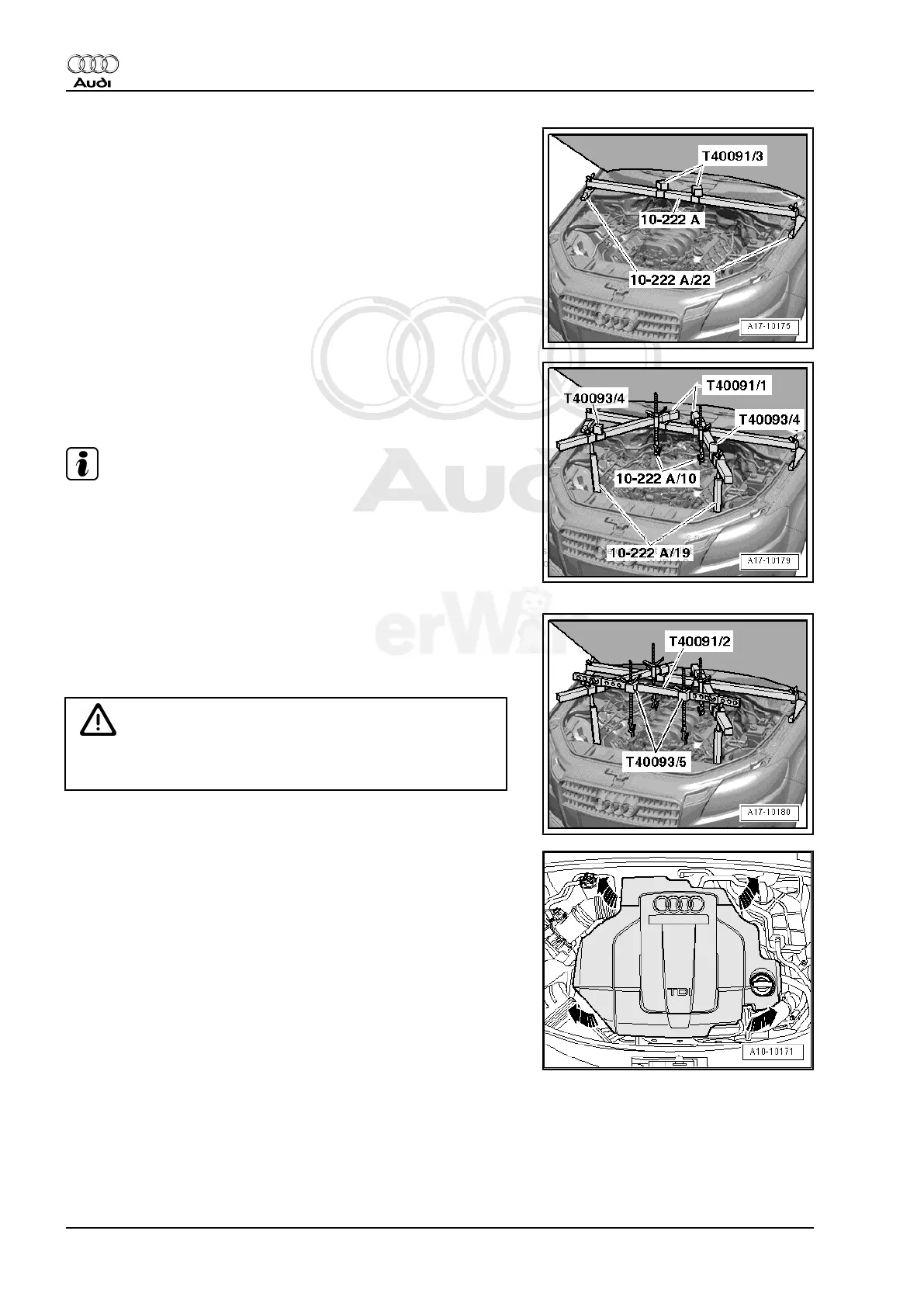

Position Engine Support Bridge - 10-222 A- with Adapter -
10-222 A/22- and Supplement Set - T40091/3- on bolted
fender edges.
Install additional Engine Support Bridge - 10-222A- parts as
shown in illustration. Also place Engine Support Bridge - En‐
gine Support 19 - 10-222A/19- on notches on longitudinal
members.
Note
Mount the Engine Support Bridge - Engine Support 19 - 10-222A/
19- to the notches on the longitudinal member. Push the left re‐
frigerant lines to the side and out of the way.
Engage hooks on both Engine Support - Bracket w/Spindle
and hook - 10-222A/10- at rear engine lifting eyes.
Slide Support - T40091/2- with both Slides - T40093/5- in both
Mounts - T40093/4- .
Install long spindles from Engine Support Bridge - 10-222A-
and engage spindle hooks at both front engine lifting eyes.
WARNING
Secure Support - T40091/2- with connector pins and Mounts -
T40093/4- .
Tension engine by tightening 4 spindles evenly.
Affects Vehicles with 3.0L TDI Engine
Carefully remove engine cover from 4 retaining pins in suc‐
cession -arrows-.
Remove air filter housing ⇒ Rep. Gr. 23 .
