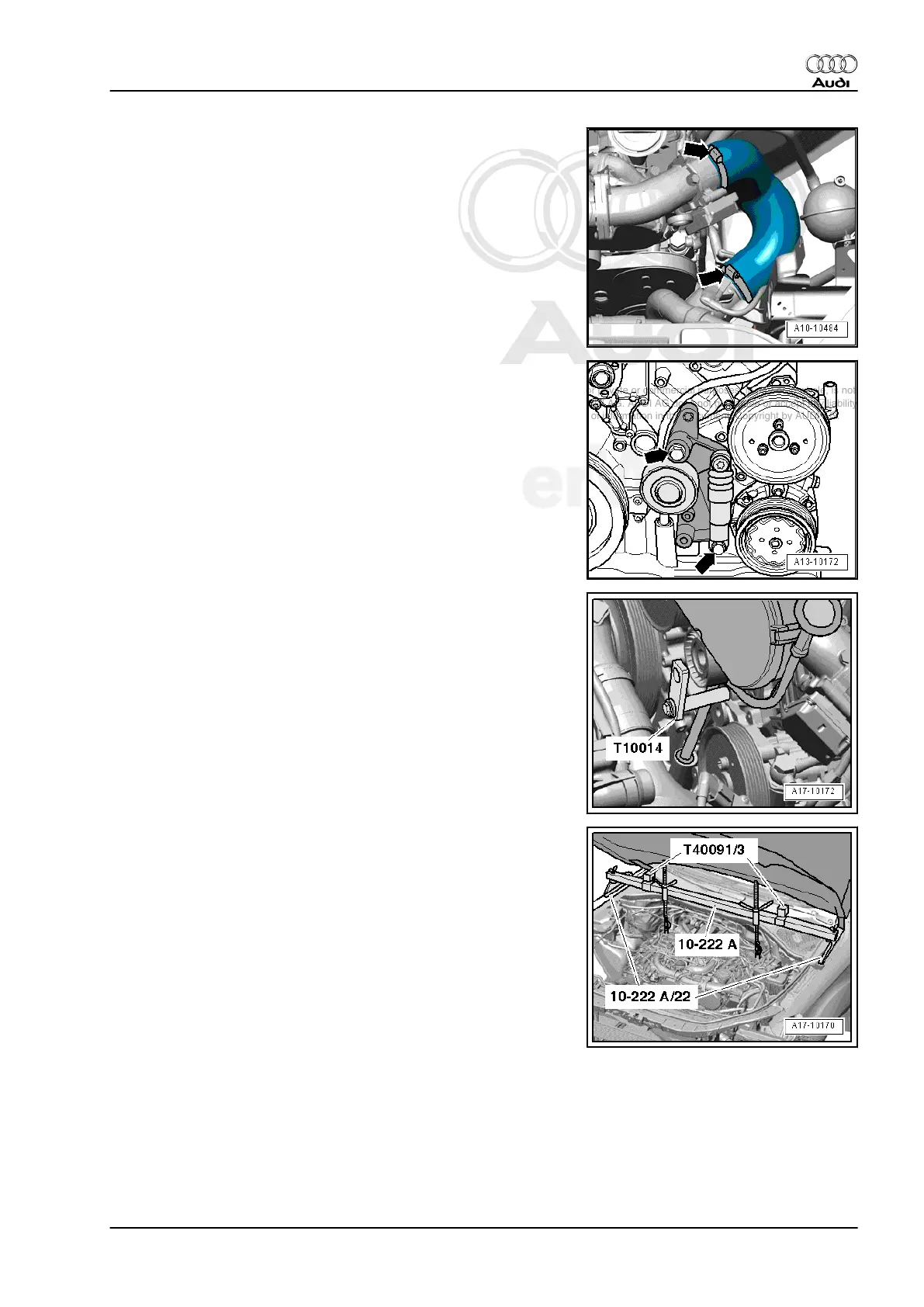

– Remove air guide hose -arrows-.
– Remove ribbed belt ⇒ Rep. Gr. 13 .
– Remove ribbed belt tensioner ⇒ Rep. Gr. 13 .
– Install Engine Support - T10014- in ribbed belt tensioner se‐
curing hole.
– Position Engine Support Bridge - 10-222 A- with Supplement
Set - T40091/3- and 2 spindles on bolted fender edges.
• Spindles are at front.
– Engage both spindles at rear engine lifting eyes.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
2. Subframe, Stabilizer Bar and Coupling Rod 23
