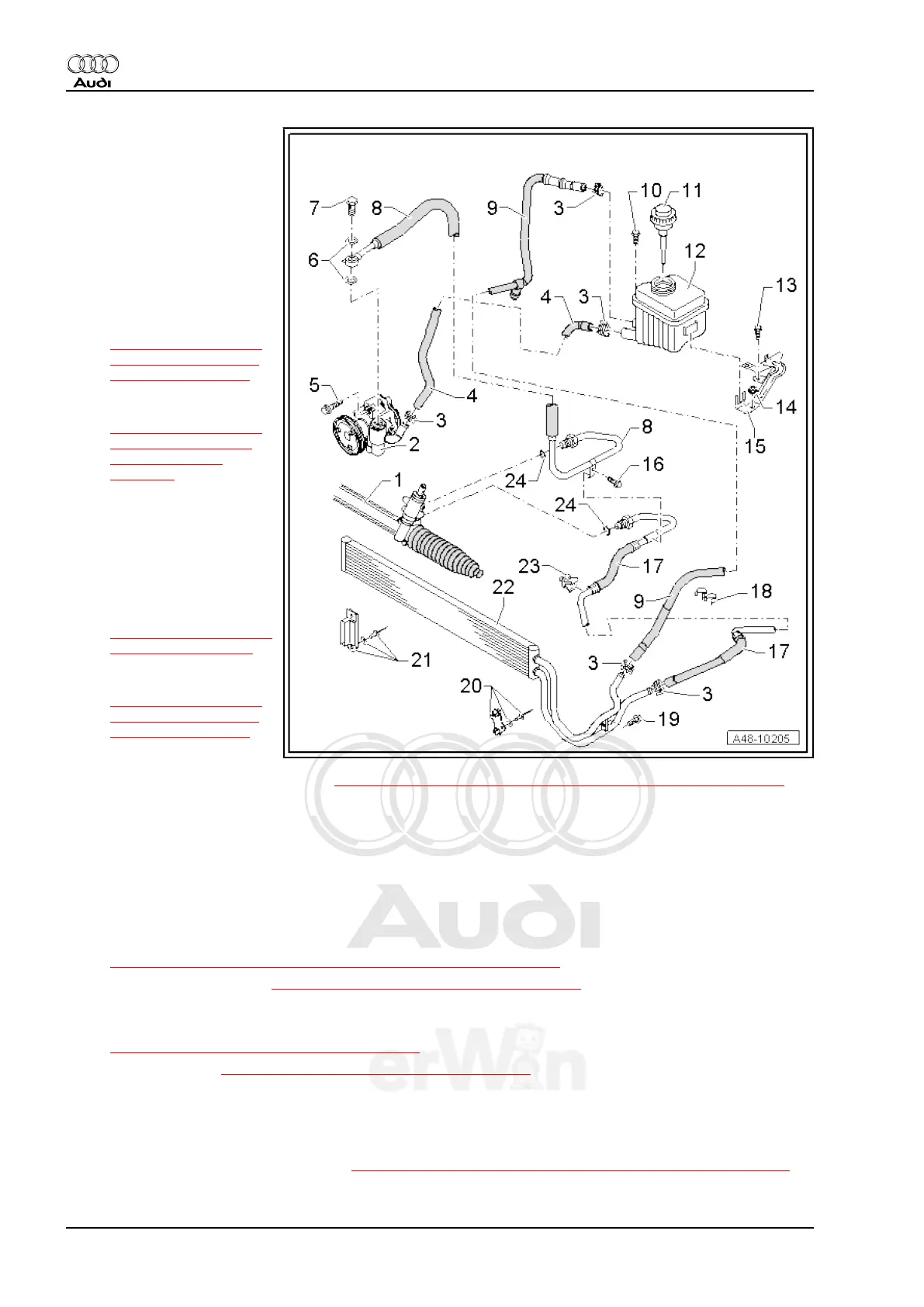

1 - Power-assisted steering
gear
❑ Allocation, refer to the
Parts Catalog.
2 - Power Steering Pump
❑ Allocation, refer to the
Parts Catalog.
❑ Fill with Hydraulic Oil
before installing.
❑ Removing and Instal‐
ling, refer to
⇒ “6.4 Power Steering
Pump, Removing and
Installing”, page 342 .
❑ Delivery Pressure,
Checking, refer to
⇒ “6.3 Power Steering
Pump Delivery Pres‐
sure, Checking”,
page 339 .
3 - Spring Clamp
❑ Remove and install with
Hose Clip Pliers -
VAS5024A- .
4 - Intake Hose
❑ Note location on reser‐
voir, refer to
⇒ “6.2 Lines and Hoses
Overview”, page 338 .
❑ Note power steering
pump location, refer to
⇒ “6.4 Power Steering
Pump, Removing and
Installing”, page 342 .
5 - Bolt
❑ Tightening specification, refer to ⇒ “6.4 Power Steering Pump, Removing and Installing”, page 342 .
6 - Seal
❑ Always replace.
7 - Banjo Bolt
❑ 35 Nm
8 - Pressure Line
❑ Tighten the union nut to 32 Nm.
❑ Note power steering pump location, refer to
⇒ “6.4 Power Steering Pump, Removing and Installing”, page 342 .
❑ Attach to body, refer to ⇒ “6.2 Lines and Hoses Overview”, page 338 .
9 - Return Hose
❑ Note location on reservoir and hydraulic oil cooler, refer to
⇒ “6.2 Lines and Hoses Overview”, page 338 .
❑ Secure, refer to ⇒ “6.2 Lines and Hoses Overview”, page 338 .
10 - Bolt
❑ 8 Nm
11 - Cap with Dip Stick
❑ Check hydraulic fluid level, refer to ⇒ “4.1 Power Steering, Checking Hydraulic Oil Level”, page 310 .
