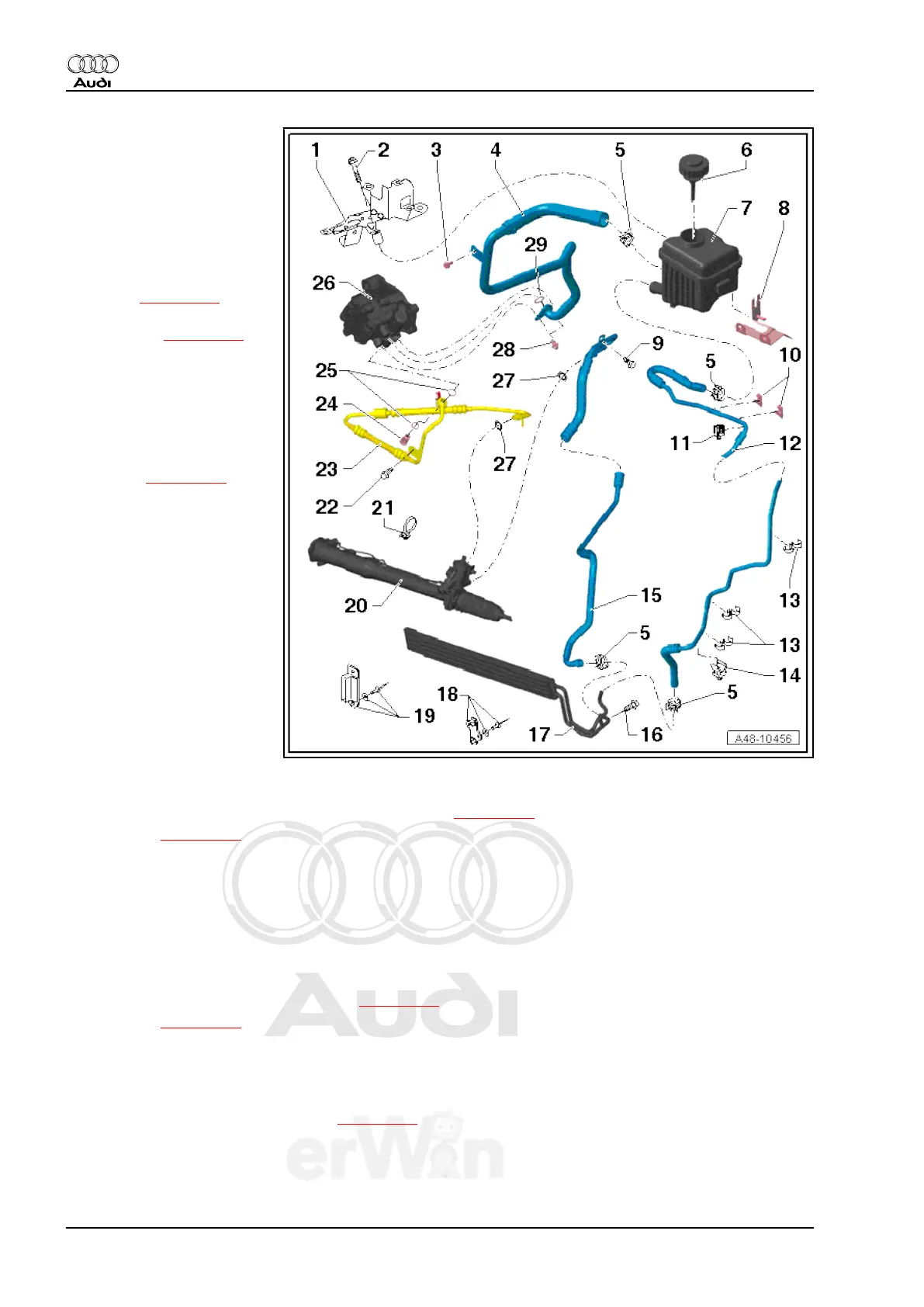

1 - Bolt
❑ 8 Nm
2 - Bracket
3 - Bolt
❑ 9 Nm
4 - Intake Hose
❑ Note location on reser‐
voir ⇒ page 350
❑ Secure to the engine,
refer to ⇒ page 350
5 - Spring Clamp
❑ remove and install with
Hose Clip Pliers -
VAS5024A-
6 - Cap with Dip Stick
❑ Check hydraulic fluid
level ⇒ page 310 .
7 - Reservoir
8 - Bracket
❑ for reservoir
9 - Bolt
❑ 9 Nm
10 - Wiring bracket
❑ With expanding rivet
❑ Quantity: 2
11 - Wiring bracket
❑ For attaching the return
line to the refrigerant
line for the refrigerant
line.
12 - Return Line
❑ Note location on reservoir and hydraulic oil cooler ⇒ page 350
❑ secure ⇒ page 350
13 - Clip
❑ Quantity: 3
14 - Wiring bracket
❑ Installed inside the subframe
15 - Return Line
❑ Tighten the union nut to 32 Nm.
❑ Note location on hydraulic oil cooler ⇒ page 350
❑ secure ⇒ page 350
16 - Bolt
❑ 9 Nm
17 - Hydraulic oil cooler
❑ Removing and Installing, refer to ⇒ page 393 .
18 - Bracket
❑ with washer and rivet
❑ for hydraulic oil cooler on condenser
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
348 Rep. Gr.48 - Steering
