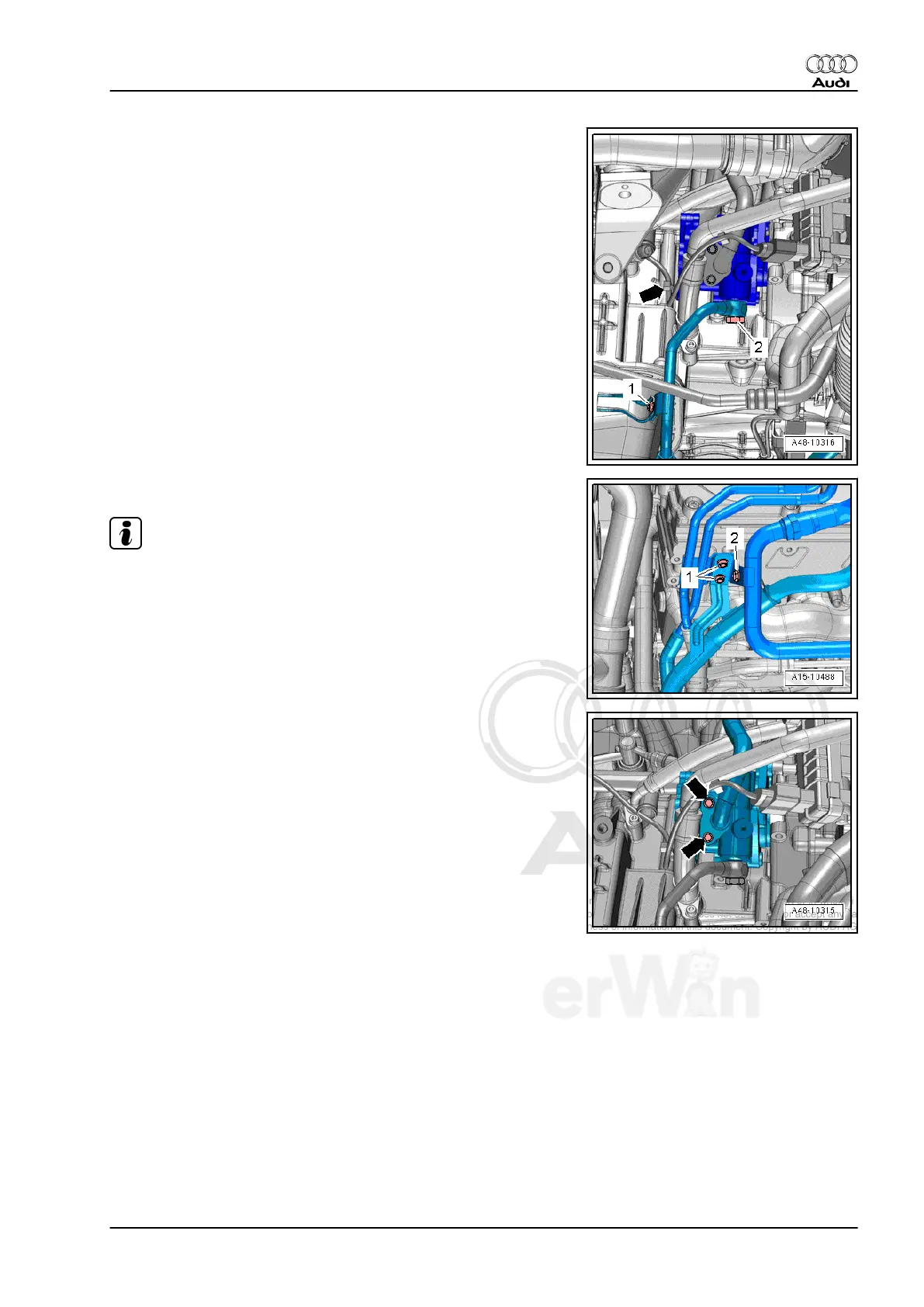

– Position the Used Oil Collection And Extraction Unit -
SMN372500- underneath.
– Loosen the bolt -1- and remove the banjo bolt -2-.
– Free up the wiring harness at the power steering pump
-arrow-.
– Remove the bolt -2- from the intake hose.
Note
Ignore -1-.
– Remove the screws -arrows- and remove the intake line from
the power steering pump.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
7. Power Steering Pump, Hydraulic Pipes and Reservoir, Vehicles with V8 TDI Engine 361
