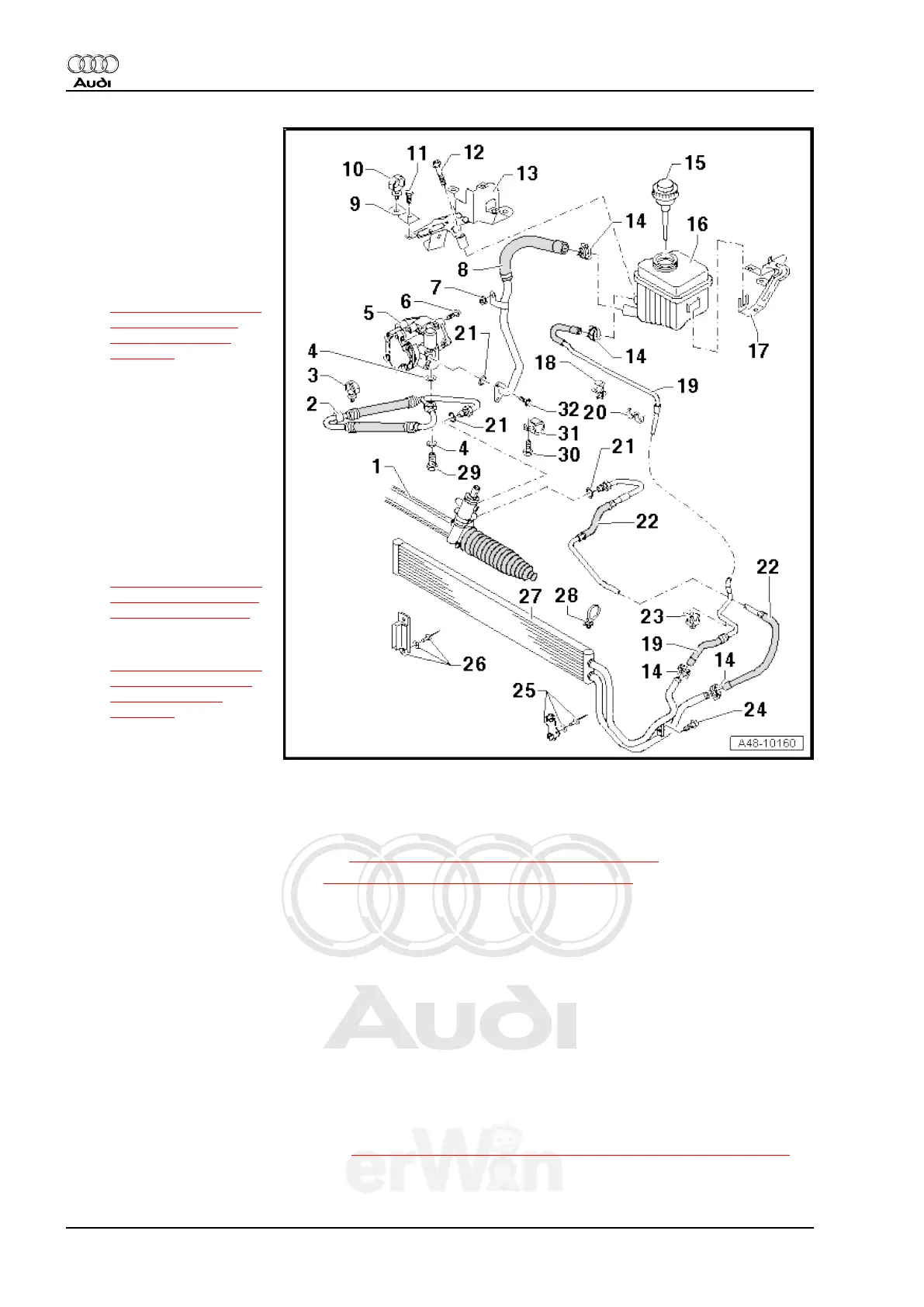

1 - Power-Assisted Steering
Gear
❑ Allocation, refer to the
Parts Catalog.
2 - Pressure Line
❑ Tighten the union nut to
32 Nm.
❑ Note power steering
pump location, refer to
⇒ Fig. ““Pressure Line
Location on Power
Steering Pump”“ ,
page 373 .
3 - Wiring Bracket
4 - Seal
❑ Always replace.
5 - Power Steering Pump
❑ Allocation, refer to the
Parts Catalog.
❑ Fill with Hydraulic Oil
before installing
❑ Removing and Instal‐
ling, refer to
⇒ “8.4 Power Steering
Pump, Removing and
Installing”, page 371 .
❑ Delivery Pressure,
Checking, refer to
⇒ “8.3 Power Steering
Pump Delivery Pres‐
sure, Checking”,
page 368 .
6 - Bolt
❑ 22 Nm
7 - Nut
❑ 9 Nm
8 - Intake Line
❑ Note location on reservoir, refer to ⇒ “8.2 Lines and Hoses Overview”, page 366 .
❑ secure to coolant pipe, refer to ⇒ “8.2 Lines and Hoses Overview”, page 366 .
9 - Bracket
10 - Wiring Bracket
11 - Bolt
❑ 9 Nm
12 - Bolt
❑ 8 Nm
13 - Bracket
14 - Spring Clamp
❑ Remove and install with Hose Clip Pliers - VAS5024A-
15 - Cap with Dip Stick
❑ Check hydraulic fluid level, refer to ⇒ “4.1 Power Steering, Checking Hydraulic Oil Level”, page 310 .
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
364 Rep. Gr.48 - Steering
