23 - drive axle
24 - Bolt
25 - Bolt
❑ M10: 50 Nm + 90°
❑ M12: 90 Nm + 90°
❑ Always replace if removed.
26 - Locking Plate
27 - Suspension Strut
28 - Stabilizer Bar
29 - Self-Locking Nut
❑ 110 Nm
❑ Always replace if removed.
30 - Subframe

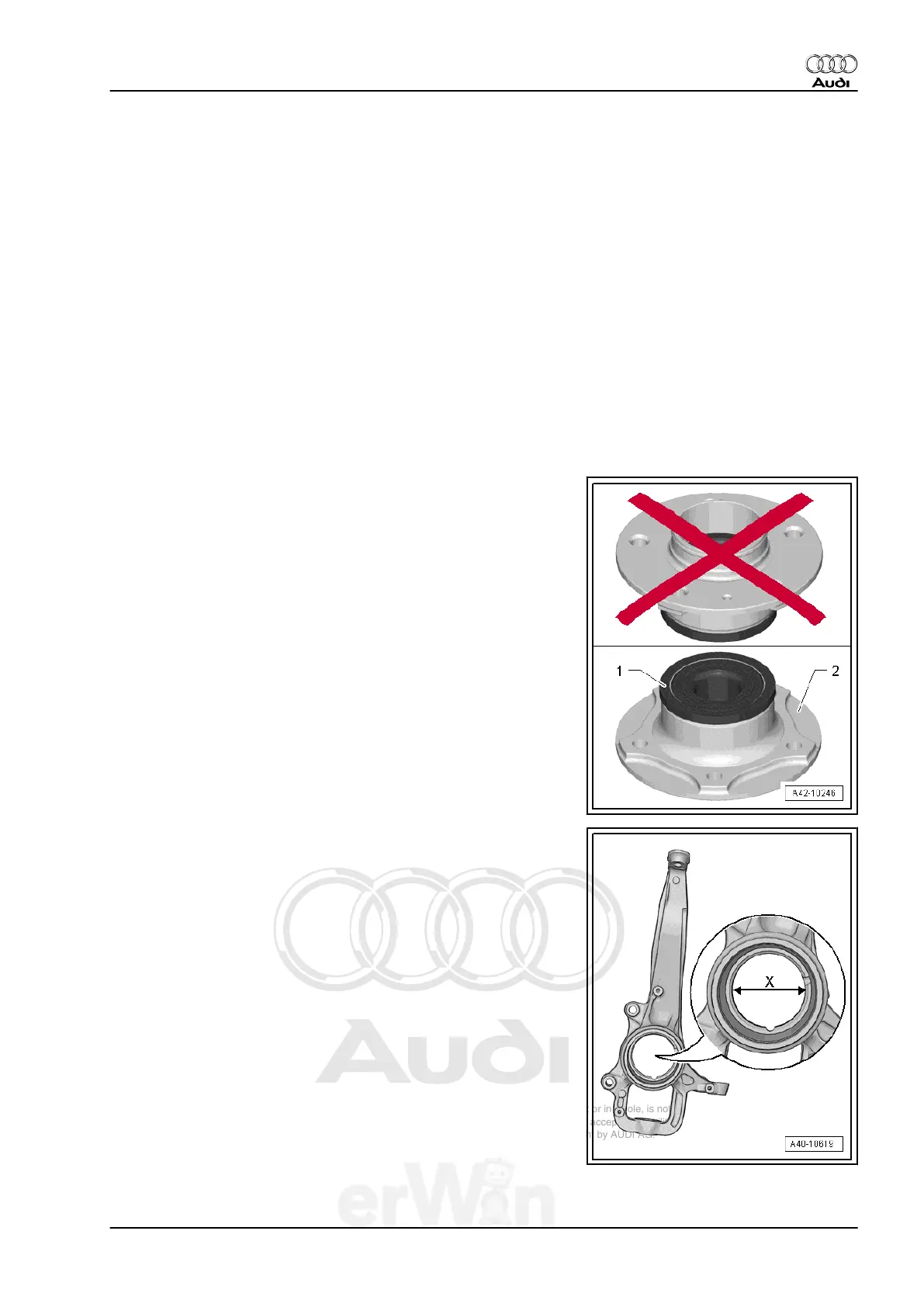

Avoid contaminating with dirt and damaging the seal when setting
down/storing.
♦ The wheel bearing -1- must always face up.
♦ Always set the wheel bearing unit down on the wheel hub
-2-.
Wheel Bearing Housing Characteristics
Different versions of the wheel bearing housing were installed in
production depending on the model year.
• With dimension -x- = 75 mm
or
• Dimension -x- = 83 mm
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
5. Lower Control Arm, Wheel Bearing Housing, Wheel Hub and Wheel Bearing 83
