Example with letterbox enabled
Image 7–134 Example letterboxing enabled

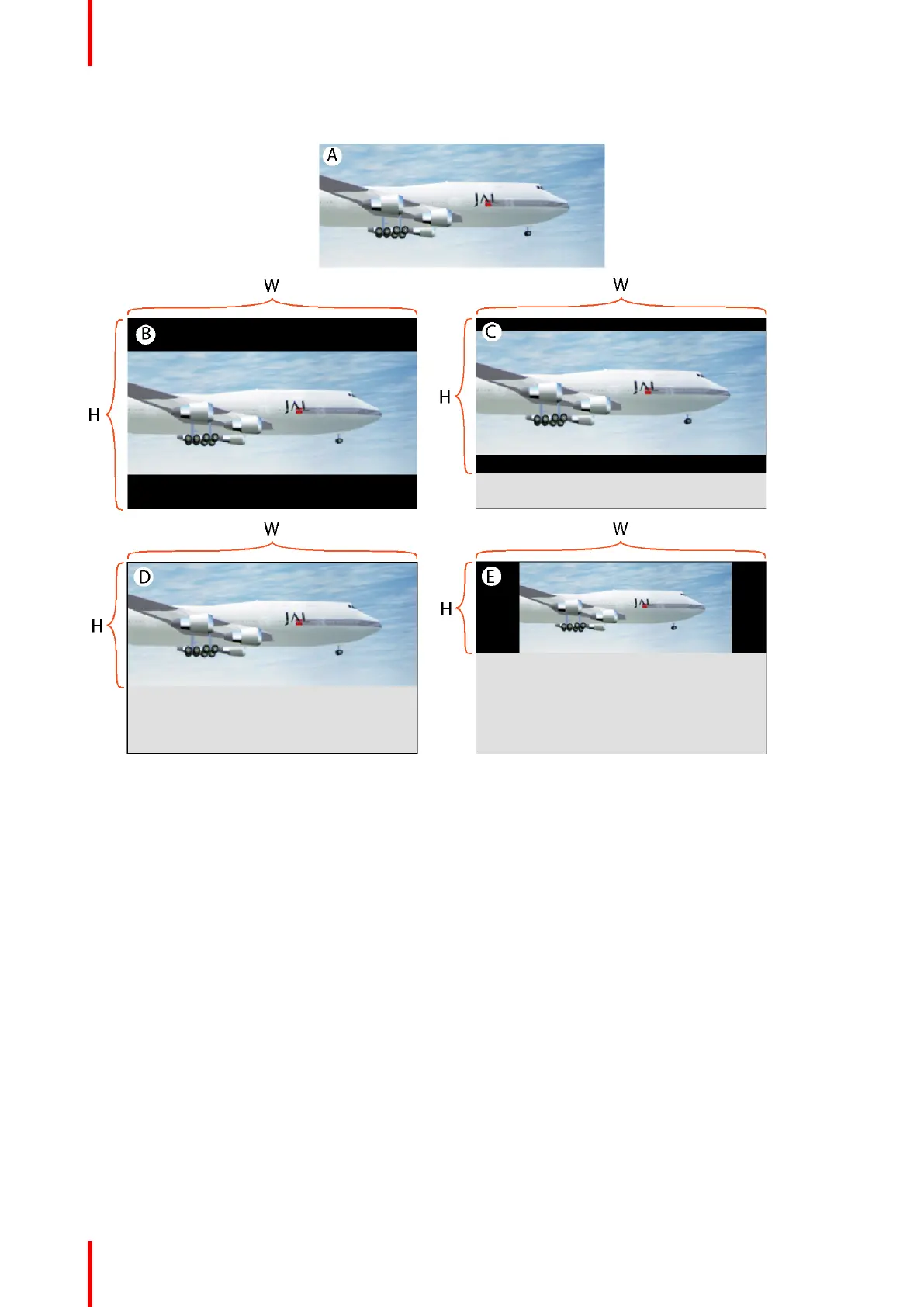

W and H are width and height of the resized area.
• A : input source
• B :
- Resized area equals the maximum DMD size
- The input image has a different aspect ratio from the resized area.
- Full image is letterboxed (top and bottom) and centered within the resized area.
• C :
- The screen height is narrowed, bottom is moved upwards.
- The input image has a different aspect ratio from the resized area.
- Full image is letterboxed (top and bottom) and centered within the resized area.
• D :
- Bottom of resized area is moved upward to where image fills this area.
- The input image has now the same aspect ratio from the resized area.
- Full input image centered within the resized area and letterboxing is not required.
• E :
- Bottom of resized area has moved upward to where image at previous size cannot be fully displayed.
- Resized area reduced in both directions (maintaining aspect ratio) so full scaled image can be
displayed.
- Image is letterboxed ( right side and left side).
