153R5910032 /00 Freya
Example with letterbox disabled

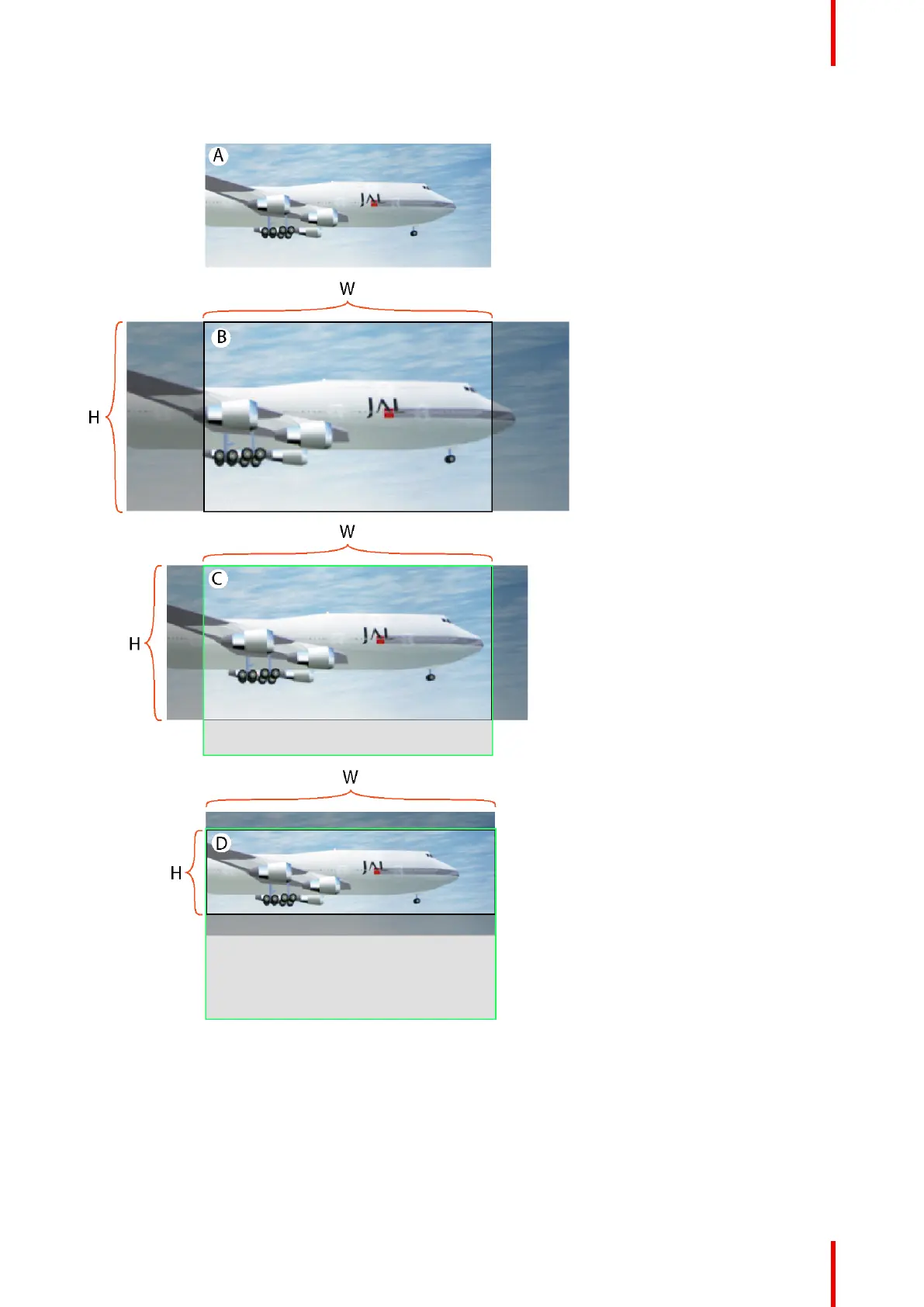

Image 7–135 Example letterboxing disabled
W and H are width and height of the resized area.
• A : input source
• B :
- Resized area equals the maximum DMD size
- The input image has a different aspect ratio from the resized area.
- Image is scaled up to fill resized area, requiring that some input data be discarded because it falls
outside the resized area (dark transparent areas left and right).
Configuration - Projector
