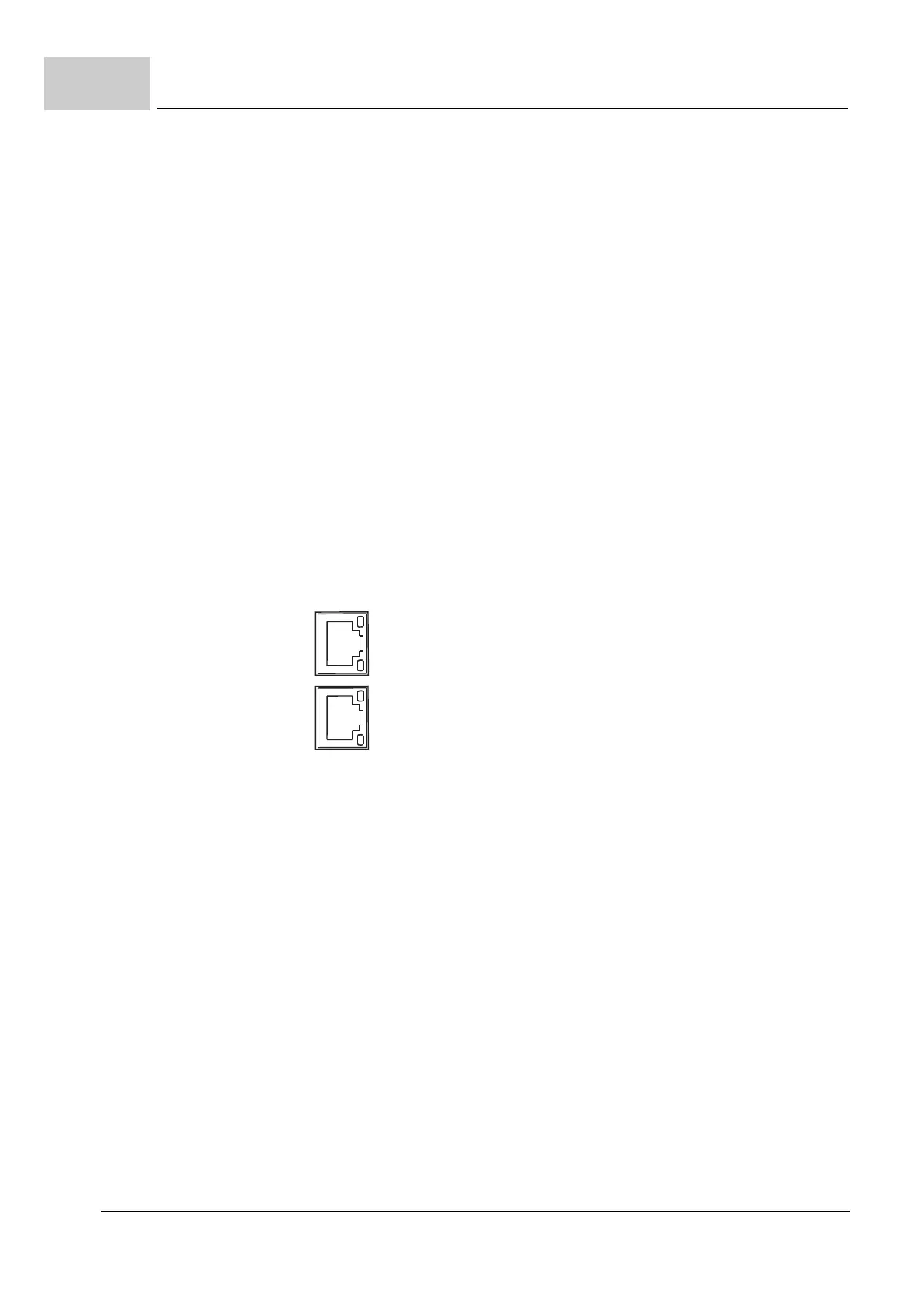

Connections on the front side
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
180
of 328
7.15
VARAN Type code b maXX 5000 with VARAN profile:
BM5XXX-XXXX-XXXX-02XX
X3
X4
VARAN IN
VARAN OUT
Number of bus connections 1 IN / 1 OUT
Bus connection RJ 45
Number of parameters refer to
p
arameter handbook b maXX 5000
Data size of parameters 16 / 32 Bit
Baud rates 10 / 100 Mbit/s
X3
X4
1: TX+
2: TX-
3: RX+
4: re
served
5: re
served
6: RX-
7: re
served
8: re
served
