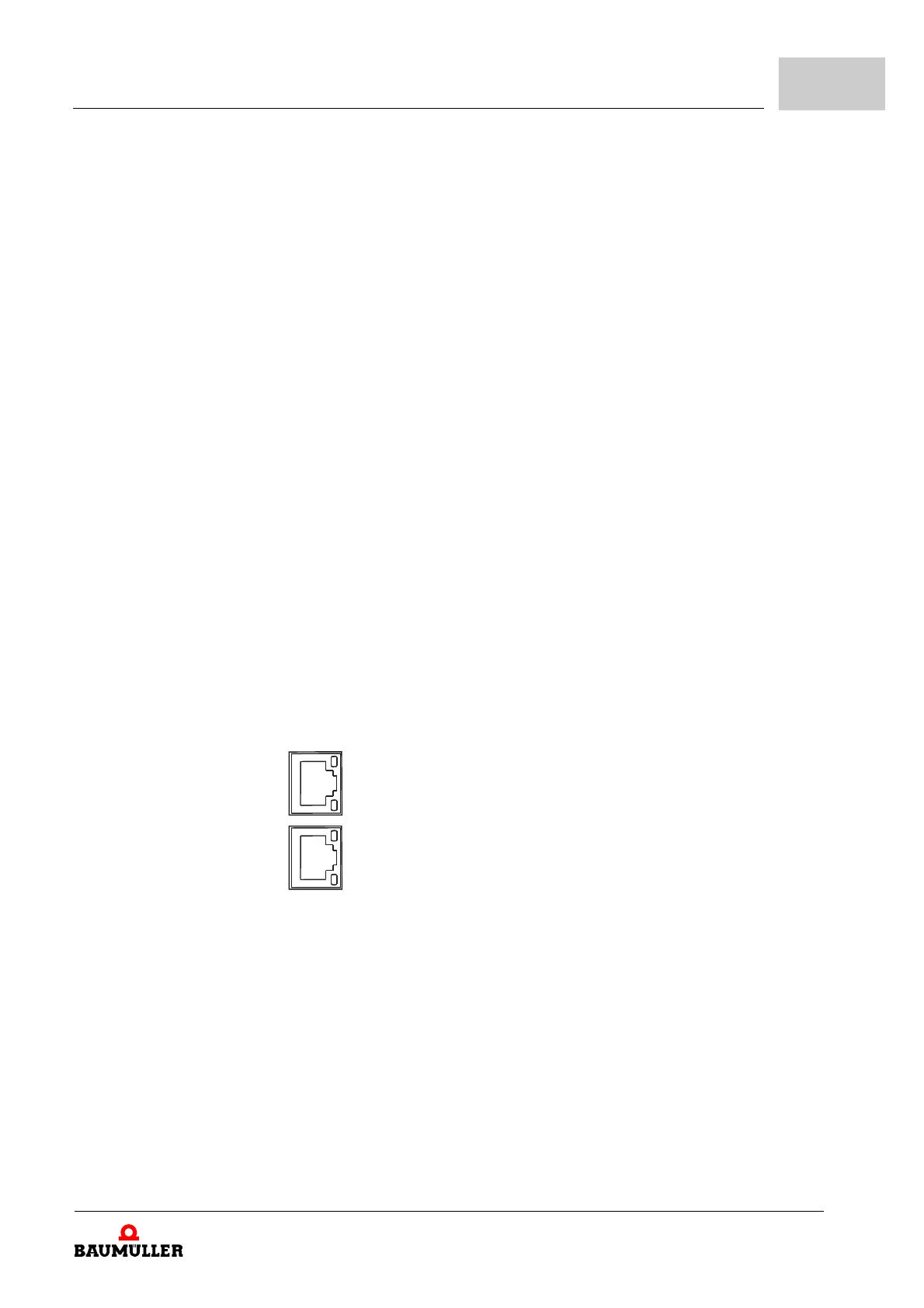

X3 / X4 - fieldbus
connection
EtherCAT
®
Type code b maXX 5000 with EtherCAT
®
CoE profile:
BM5XXX-XXXX-XXXX-01XX
Type code b maXX 500
0 with EtherCAT
®
SoE profile:
BM5XXX-XXXX-XXXX-07XX
X3
X4
EtherCAT
®
IN
EtherCAT
®
OUT
Number of bus connections 1 IN / 1 OUT
Bus connection RJ 45
Number of parameters refer to
p
arameter handbook b maXX 5000
Data size of parameters 16 / 32 Bit
Baud rates 10 / 100 Mbit/s
X3
X4
1: TX+
2: TX-
3: RX+
4: re
served
5: re
served
6: RX-
7: re
served
8: re
served
