Installation
Instruction handbook b maXX 5000
Document No.: 5.09021.16
187
of 328
7

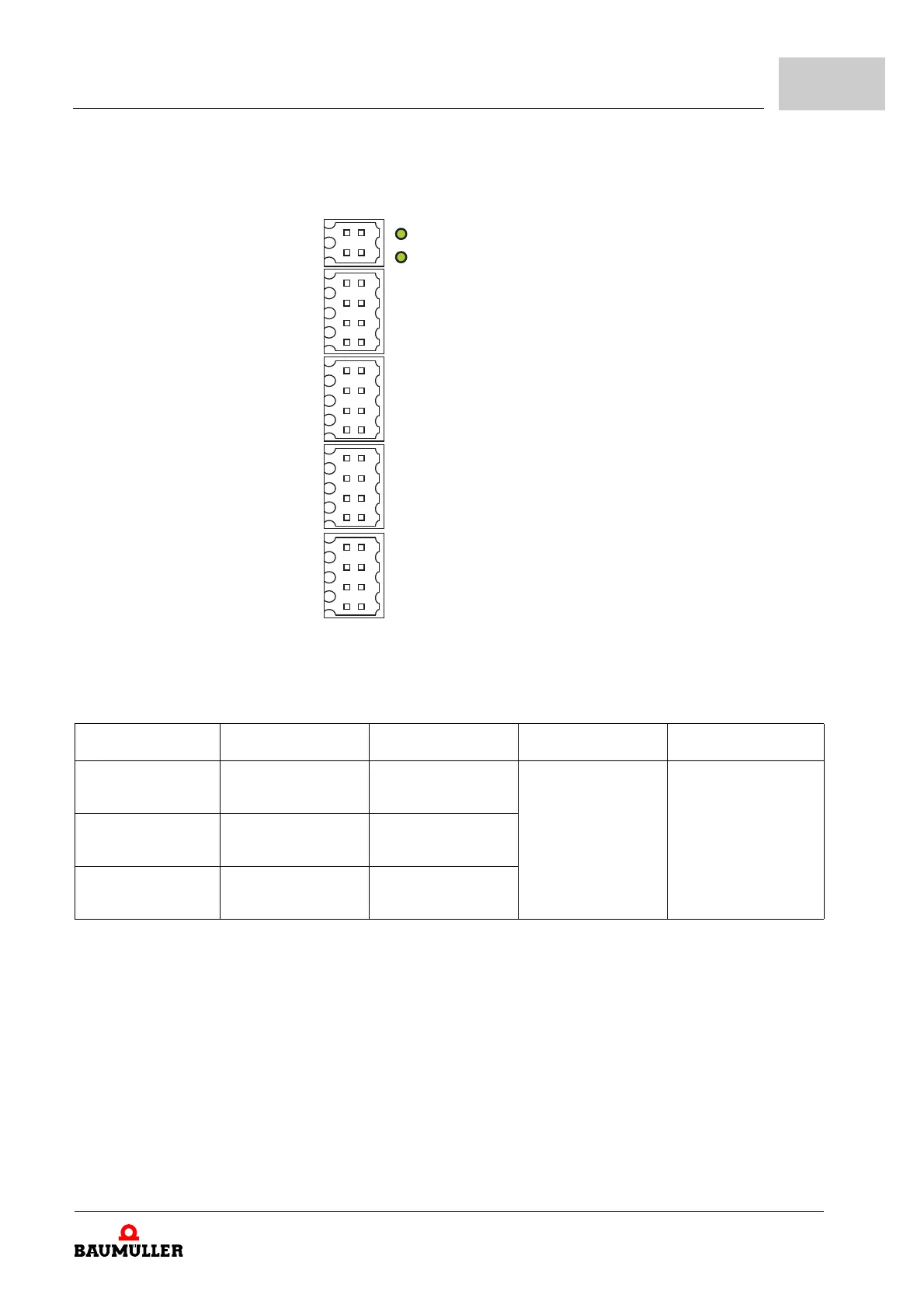

Pin assignment front side connectors:
2 x 24V in
2 x GND in
Digital out 1
Digital out 2
Digital out 3
Digital out 4
Digital in 1
Digital in 2
Digital in 3
Digital in 4
24V out
GND out
24V out
GND out
Analog in 1 +
Analog in 1 -
Analog in 2 +
Analog in 2 -
24V out
GND out
24V out
GND out
Analog in 3 +
Analog in 3 -
Analog in 4 +
Analog in 4 -
Analog out 1 -
Analog out 2 -
Analog out 3 -
Analog out 4 -
Analog out 1 +
Analog out 2 +
Analog out 3 +
Analog out 4 +
Types
Version Analog in 1 / 2 Analog in 3 / 4 Analog out 1 ... 4 Digital in 1 ... 4
Digital out 1 ... 4
SVP-001-001
BM53XX-XXXX-XX04
Analog voltage inputs
±10 V
Resolution 14 bit
Analog voltage inputs
±10 V
Resolution 14 bit 4 analog
voltage outputs
±10V
Resolution 12 bit
4 digital inputs
24 V /
4 digital outputs
24 V
SVP-001-002
BM53XX-XXXX-XX05
Analog voltage inputs
±10 V
Resolution 14 bit
Analog current inputs
(0) 4…20 mA
Resolution 14 bit
SVP-001-003
BM53XX-XXXX-XX06
Analog current inputs
(0) 4…20 mA
Resolution 14 bit
Analog current inputs
(0) 4…20 mA
Resolution 14 bit
