Connections on the front side
Instruction handbook b maXX 5000
Document No.: 5.09021.16 Baumüller Nürnberg GmbH
200
of 328
7.15
Motor brake/
temperature

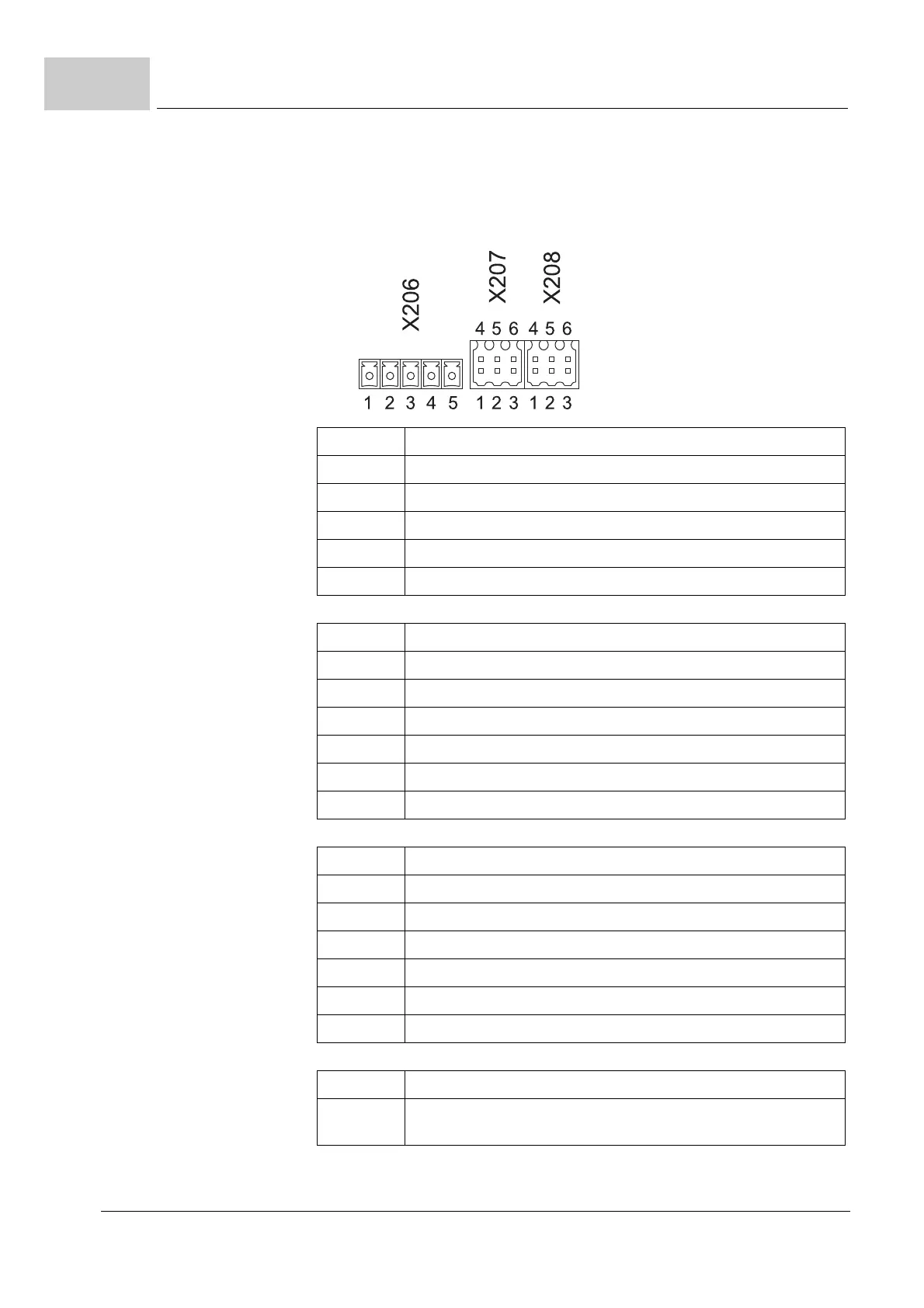

Double axis unit BM5323, BM5325, BM5328, BM5331, BM5332, BM5333
X206/X207/X208
X206 Pin No. Assignment
1 +24V motor brake
Supply voltage for 
motor brake
2 M24V motor brake
3 +24V motor brake
4 M24V motor brake
5 PE
X207 Pin No. Assignment
1 Motor brake 1-
Motor 1
motor temperature and
motor brake
2 Feedback signal motor brake 1-
3 Motor temperature 1-
4 Motor brake 1+
5 Feedback signal motor brake 1+
6 Motor temperature 1+
X207 Pin No. Assignment
1 Motor brake 2-
Motor 2
motor temperature and
motor brake
2 Feedback signal motor brake 2-
3 Motor temperature 2-
4 Motor brake 2+
5 Feedback signal motor brake 2+
6 Motor temperature 2+
X207, X208 Pin No. Level
Response, 
motor brake
2, 5 Low: 0 V ... 10 V
High: 17.5 V ... 30 V
