82.3-0000010 OM
183

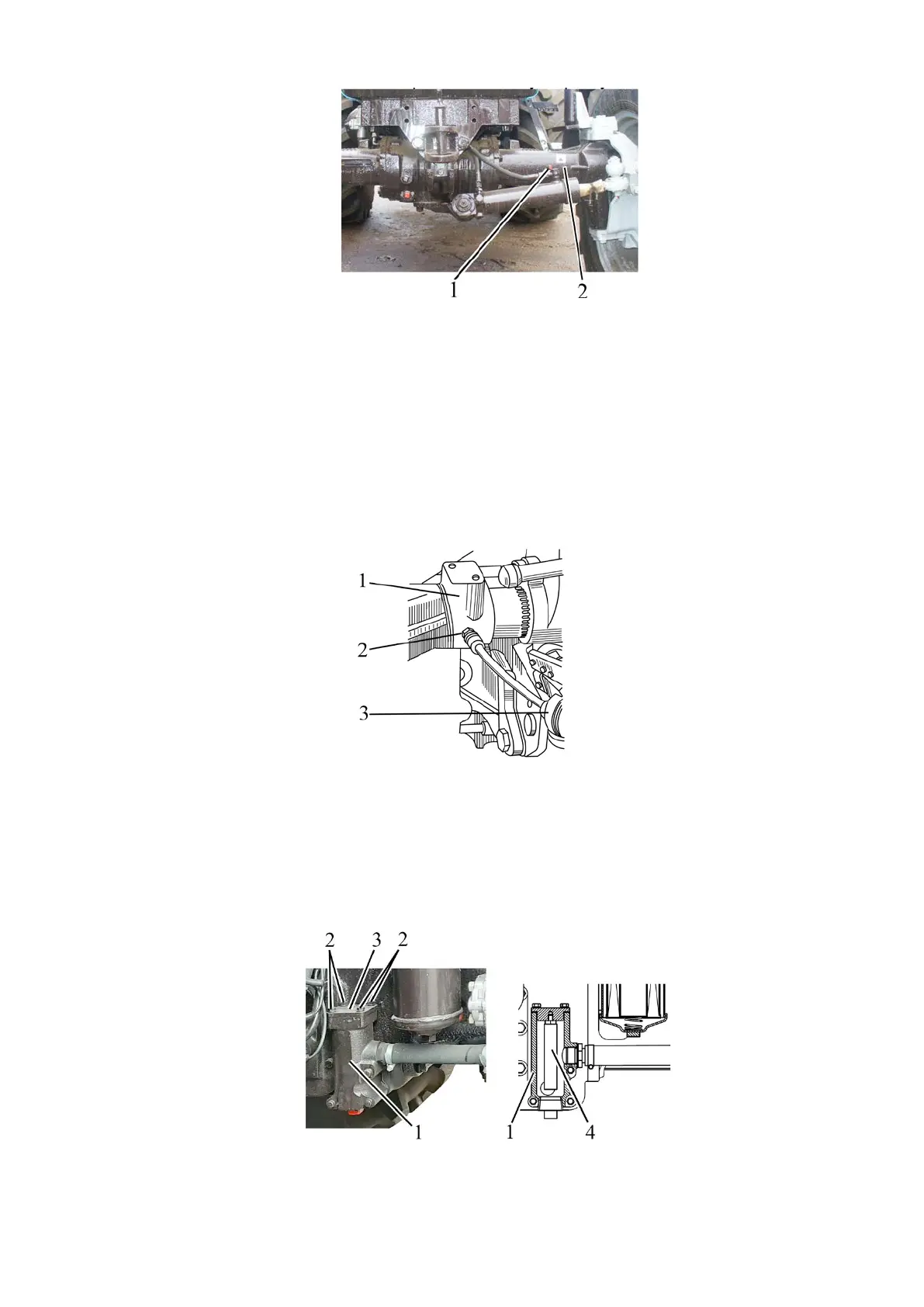

1 – level/fill plug of FDA housing; 2 – FDA beam tube.
Figure 5.4.39 – Check of oil level in main gear of FDA planetary-spur wheel gear
groups
WARNING: BE CAREFUL TO AVOID CONTACT WITH HOT OIL AND HOT SURFACES
OF THE FDA HOUSINGS!
5.4.4.11 Operation 41. Greasing of RLL turning shaft bushings
Note – If using grease MS-1000 TU 0254-003-45540231-99 the operation shall be
performed every 1000 hours of tractor operation.
To lubricate RLL turning shaft bushings, do the following:
- clean two grease fittings 2 (figure 5.4.40), located in RLL bracket 1, to remove dirt
and dried grease;
- inject grease into both grease fittings 2 until grease appears from the gaps.
1 – RLL bracket; 2 – grease fitting; 3 – grease gun.
Figure 5.4.40 – Greasing of RLL turning shaft bushings
5.4.4.12 Operation 42. Cleaning magnetic filter of transmission hydraulic system.
To clean magnetic filter 3 (figure 5.4.41) do the following:
- unscrew four bolts 2 and remove cover 3;
- clean magnetic catcher 4 with a rag;
- put cover 3 into body 1 and secure it with bolts 2.
1 - housing of magnetic filter of hydraulic system; 2 - bolts; 3 - cover; 4 – magnetic
catcher.
Figure 5.4.41 - Cleaning magnetic filter of hydraulic system
