82.3-0000010 OM
192
To fill in (prime) the fuel system, proceed as follows:
- unscrew the bolt of swivel bracket 1 (figure 5.4.52) by 2..3 turns;
- put a rag to the place where the swivel bracket bolt is attached and prime the system
with the help of a manual booster pump 3, screwing the swivel bracket bolt in as fuel appears
without air bubbles;
- unscrew plug 2 on the fuel pump housing;
- prime the system with the manual booster pump 3 until fuel without air bubbles ap-
pears, while screwing plug 2 in.

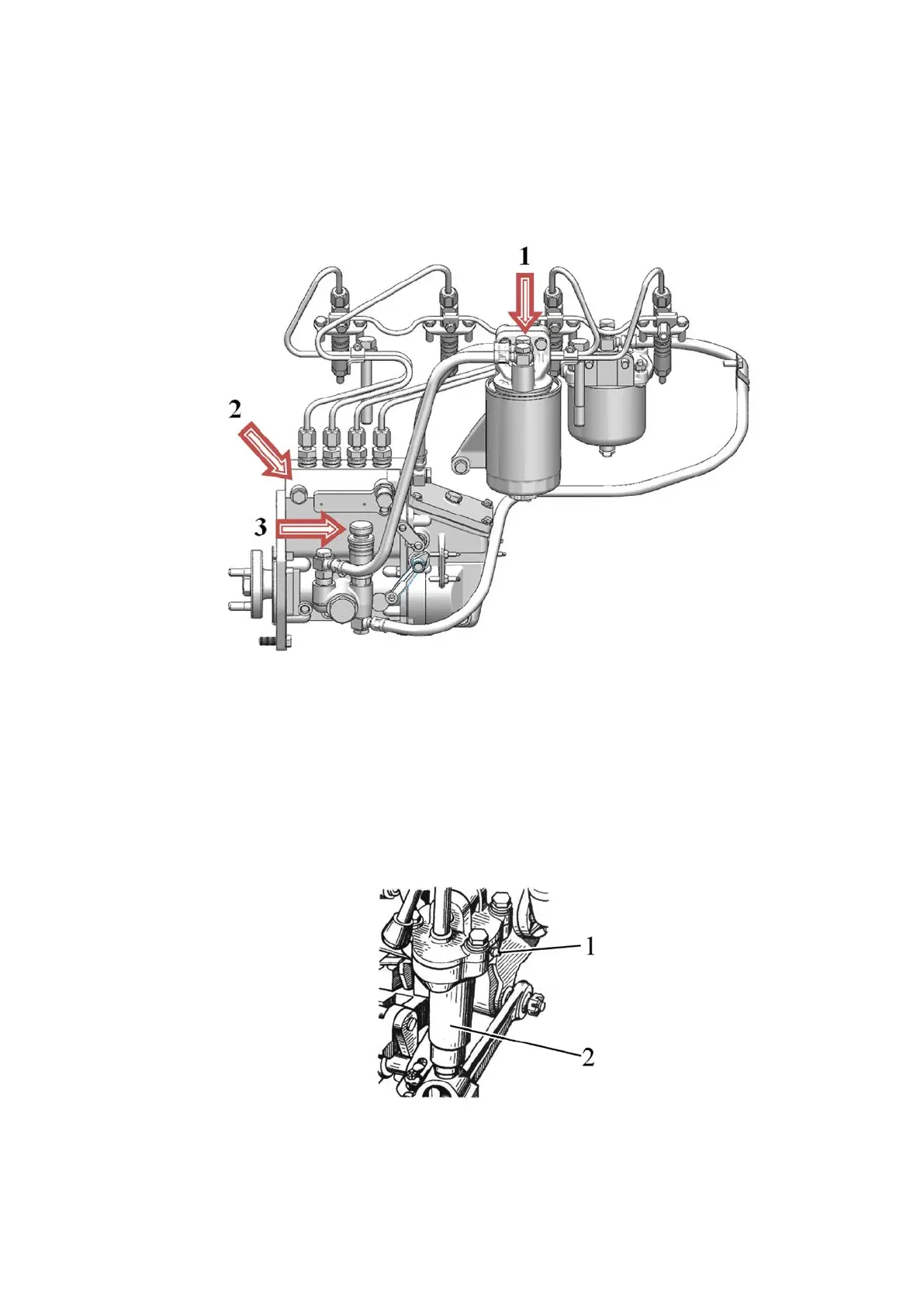

Figure 5.4.52 –
Diagram of filling-in (priming) of the fuel system
5.4.5.8 Operation 51. Greasing of RLL lifting rods of gear type
Note - The operation is carried out only on gear-type lifting rods. When using MS-1000
grease under TU 0254-003-45540231-99, the operation should be carried out every 2000
hours of tractor operation.
Syringe the lifting rod adjustment mechanism (one greasing point for each gear-type lift-
ing rod), for which make four to six injections of grease specified in Table 5.8.1 with a syringe
through greaser 1 (figure 5.4.53) in the upper part of lifting rod 2.
1 – greaser; 2 – gear-type lifting rod.
Figure 5.4.53 – Greasing of RLL lifting rod of gear type
