In field 3 (Figure 2.6.5), a group of parameters of a single parameter can be dis-
played depending on the screen number selected in the menu.
Parameters that are displayed in field 3 according to the screen number are given in
figures 2.6.7 and 2.6.8.
The current screen in field 3 (Figure2.6.5) is changed by pressing button 4 (Fig-
ure2.6.6) ( ).
Screen №1 displays oil pressure in transmission according to Figure2.6.5.
- remaining fuel volume in the tank, l;
- engine running time, h;
- time interval before MS, h;

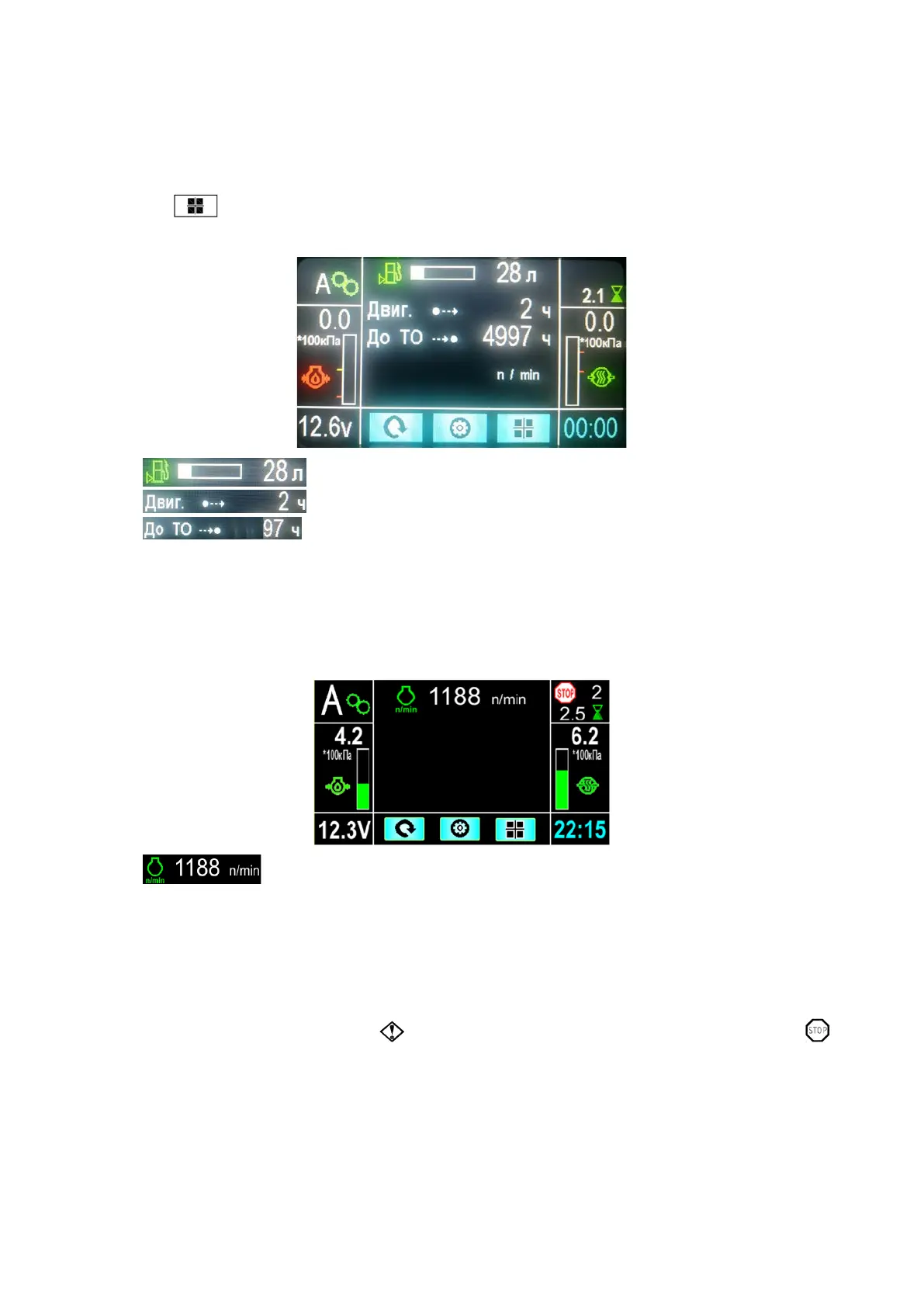

Figure 2.6.7 – Parameters displaying of screen №2
Screen №2 displays a group of parameters in accordance with Figure 2.6.7. In case
one of the parameters is missing or if its calculation is impossible, the digital value of the
such parameter is not displayed.
- engine speed, rpm;
Figure 2.6.8 – Parameters displaying of screen №3
Screen No.3 – the screen displays parameters according to the Figure 2.6.8.
Note - the parameter "engine speed" can be displayed on screen no. 2
When there are failures in the tractor, the display reveals information with the de-
scription of failure type. Simultaneously, the buzzer activates, which can be turned off for
non-critical failures (with the sign ); the buzzer for critical failures (with the sign )
cannot be turned off.
Field 4 (Figure 2.6.5) displays the total number of critical failures, if any. If there are
no critical failures, this field displays the total number of non-critical failures.
Critical failures include:
- emergency engine temperature;
- emergency oil pressure in the engine;
- temperature sensor is out of order;
- oil pressure sensor is out of order.
