2 Installation Volume 2

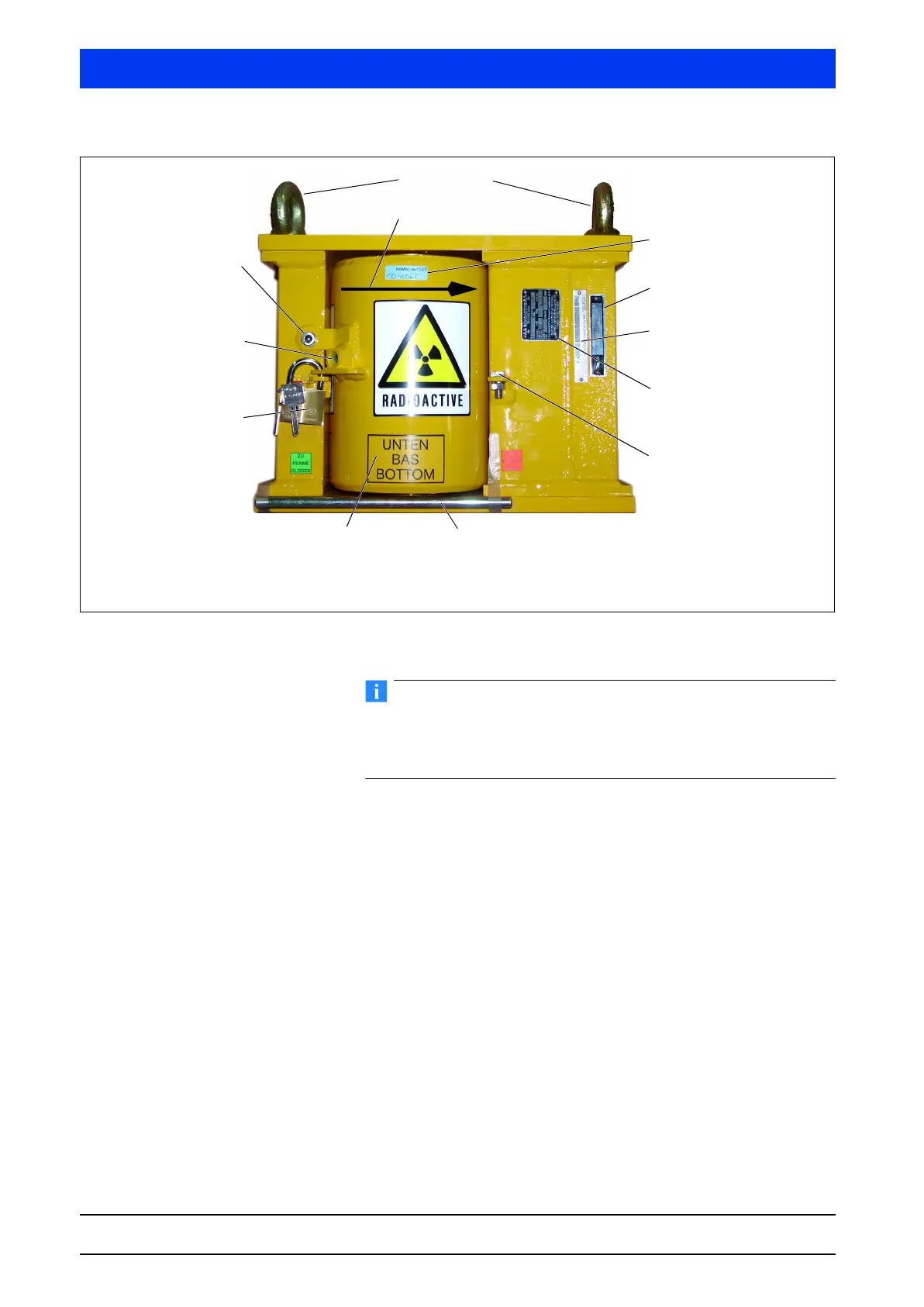

Figure 2-26 Shielding closed, view from the operator's side; the opposite
side is facing the vessel or the detector
Following installation of the shielding, the function of the locking
mechanism has to be tested periodically, depending on the operat-
ing conditions. The function check has to be carried out every six
months and recorded.
Open shielding
After the shielding has been installed, it may be opened only for
commissioning. Open the transportation safety device and open
the lock. Now use the lever fixed to the base by adhesive tapes and
insert it into the borehole for the locking mechanism. Open the
beam path by turning the lever right all the way to the right limit
stop.
This position can now be locked again with the padlock to prevent
inadvertent closing of the beam path during operation. If locking by
the lock should not be permitted, you may also fix the position with
the supplied screw.
Pneumatic actuator As an option, point source shieldings may be supplied with a pneu-
matic actuator. You find the technical data in section "6.5.2 Point
Source Shielding LB 744X with Pneumatic Actuator" on page 2–
275.
Order-related commission
number
Borehole for lever
Transportation safety device
Do not remove the transpor-
tation safety device before
completing the installation
Eyebolts
Direction of rotation for opening
Padlock
The padlock must
remain locked until the
measuring system is
taken into operation
Designation of measuring
system (option)
Safety screw to fix the shield-
ing in the open position when
locking by the lock is not per-
mitted
Type label of shielding with
model name and serial num-
ber
Marking for installation direction bottom
Source type label with
information on source and
dose rate, see Figure 6-1
on page 1–40
Lever for opening the source shielding
During transportation, the lever is fixed to the shielding
by adhesive tape. With the lever, the shielding can be
turned to the OPEN or CLOSED position.
