38477BA2B
2 – 176 25.5.09
2 Installation Volume 2

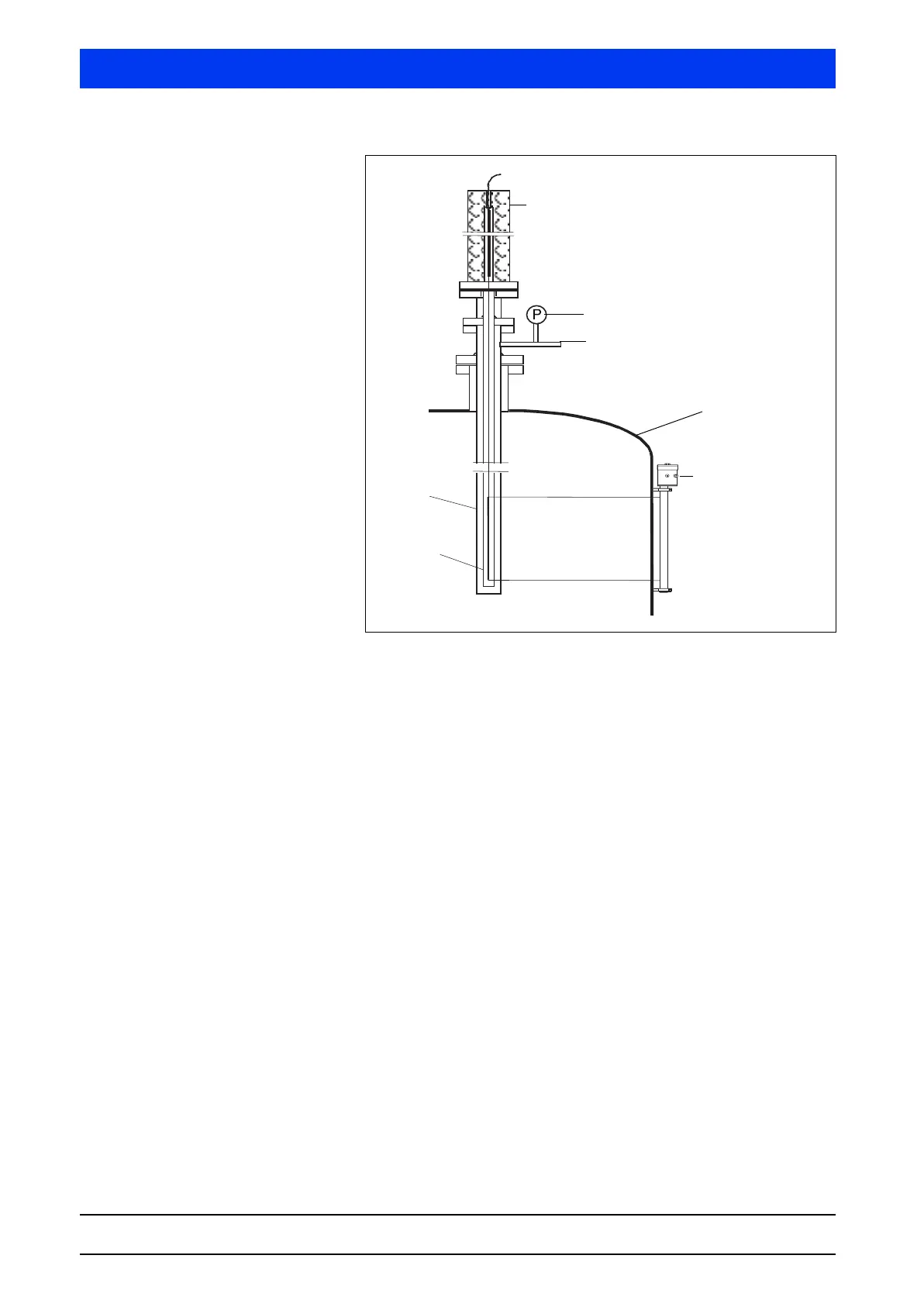

Figure 2-35 Dip tube installation with rod source and rod detector
One or up to five rod sources can be installed in a shielding,
depending on type (see section 6.10 on page 2–286). With several
rod sources, the individual sources are positioned in different
heights in order to cover the measurement range completely. The
shieldings can be adapted to your vessel flange using various
flange adapters (see section 6.11 on page 2–287).
Shielding with
source
Pressure control
Protection gas
Vessel wall
Detector
Dip tube
Protective tube
