Move source again to the shielding
position
Pull the source back into the shielding using the steel cables or
the shaft core.
Fix the source with the clamping screw at the head piece.
If the shielding contains several sources, then the order in which
the sources are pulled back into the shielding is important to rule
out that the cables get twisted:
The highest source has to be pulled back into the shielding first
and secured with the clamping screw.
Then pull the source in the second highest position into the
shielding, etc.
Connect the locking mechanism to the shielding.
Finally, put the cover over the shielding. It may be necessary to
unlatch the steel cables or the shaft core.
Operating the flange shielding with shaft core
Open the lock (padlock or safety screw).
Remove the covering cap.

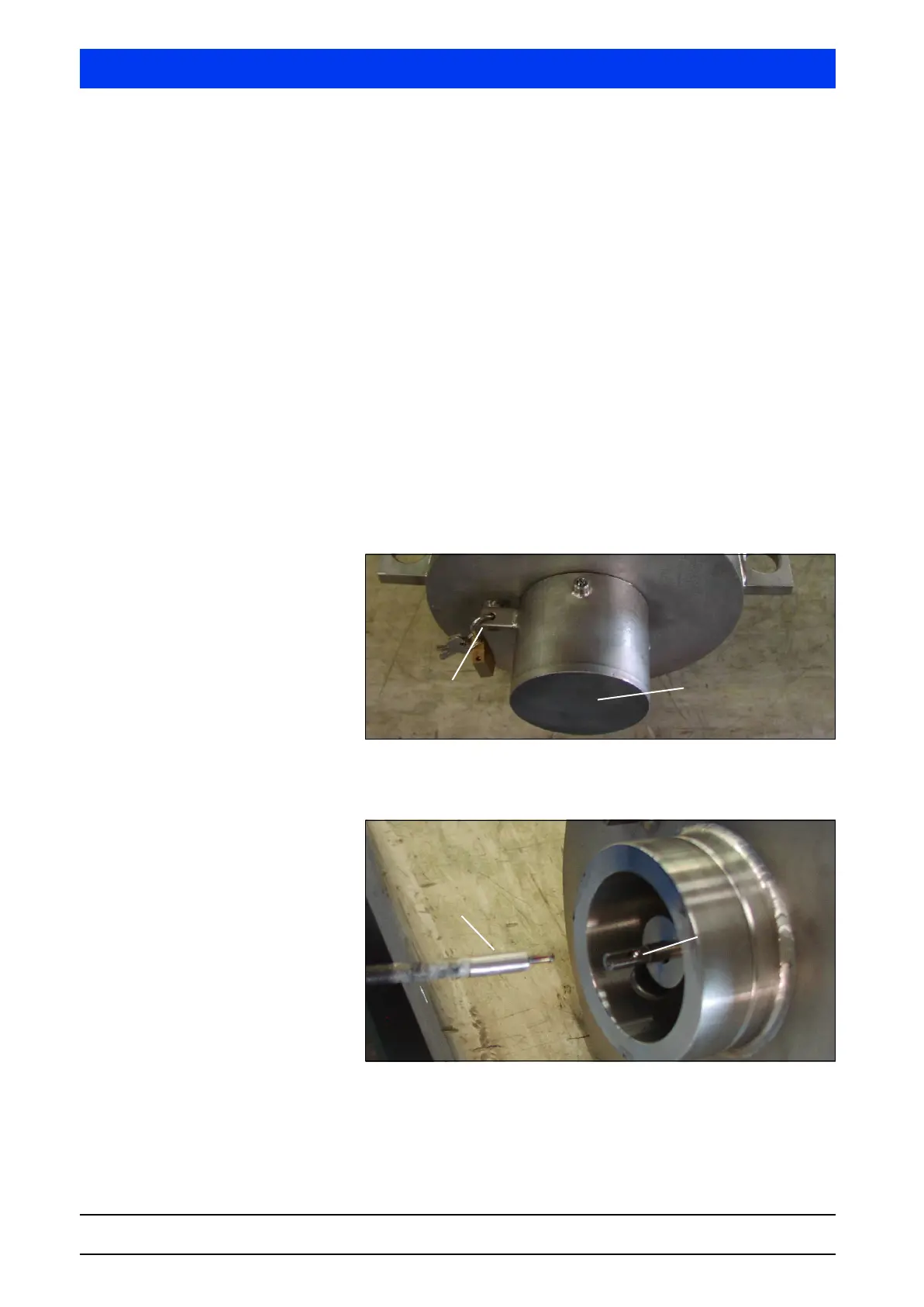

Figure 2-38 Lock and covering cap
Connect the shaft core with the source end piece.
Figure 2-39 Shaft core and source end piece
Shaft core with latch
for clutch
Source end piece
with clutch
