Uni-Probe LB 490
BERTHOLD TECHNOLOGIES GmbH & Co. KG
2 – 181
Volume 2 2 Installation
2

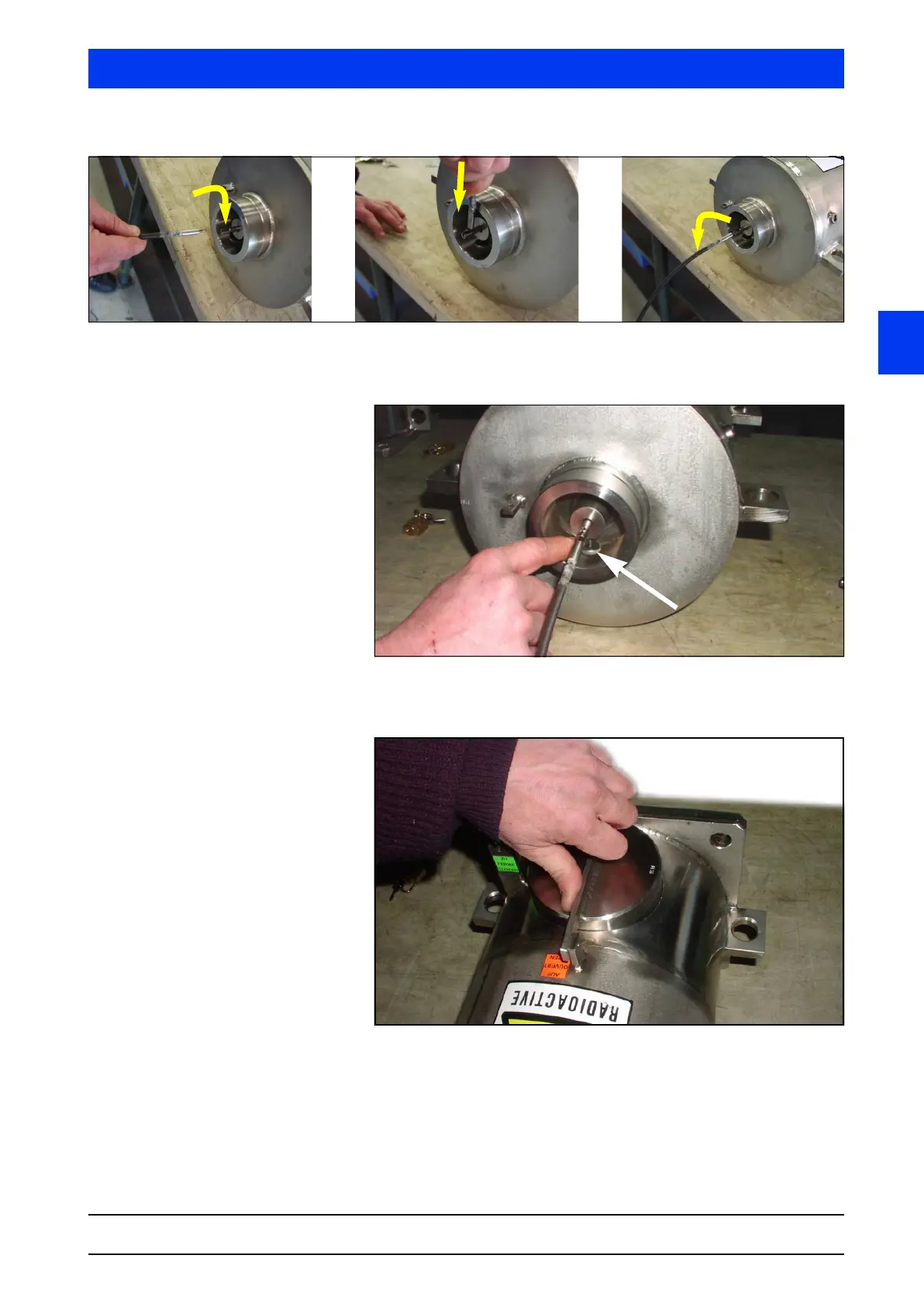

Figure 2-40 Connect shaft core and source end piece
Open the fixing screw at the head piece.
Figure 2-41 Open fixing screw
Open the source shielding.
Figure 2-42 Open source shielding
Push the shaft core in up to the limit stop.
