2 Installation Volume 2

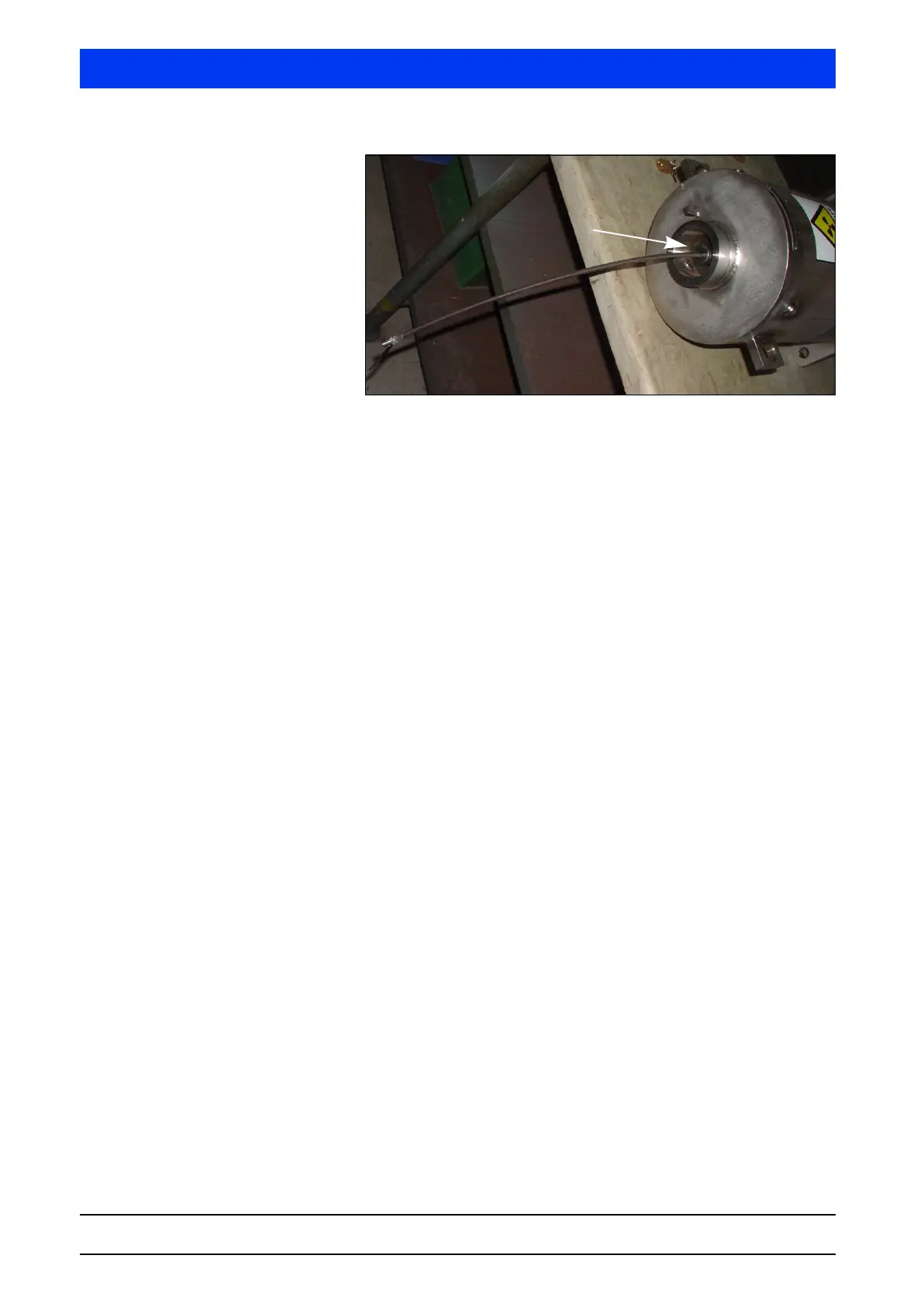

Figure 2-43 Push the shaft core in
 Fix the position with the fixing screw at the head piece.
 Attach the covering cap again.
 Secure the lock with a padlock or the safety screw.
The source is now installed.
