6 Technical Drawings Volume 2

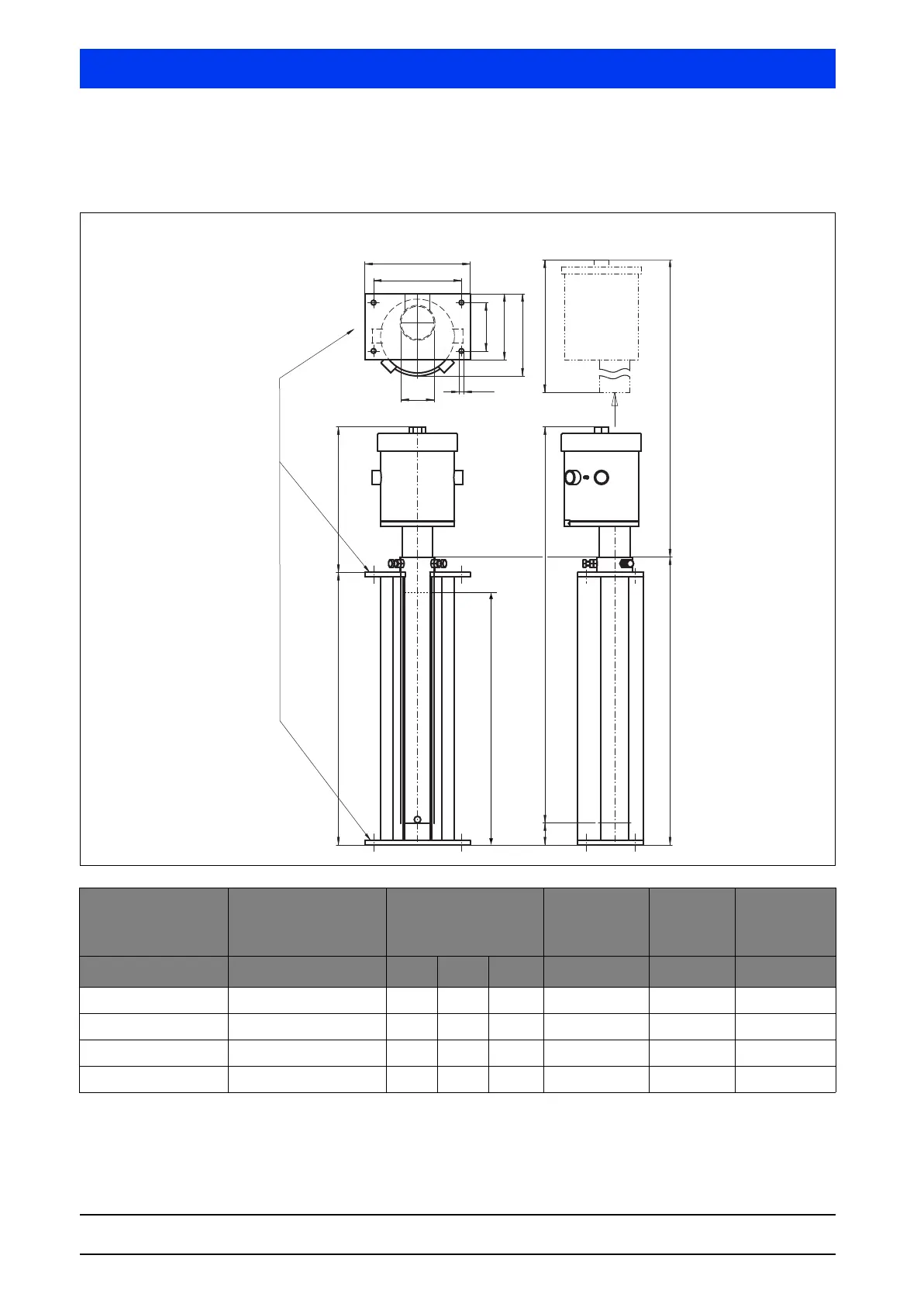

6.2.4 Shielding for Rod Detector without Water
Cooling
240
200
110
150
187
ca. 330
X
S
B
A
S
50
Ø 11
Ø 75
C
Mounting foot
top/bottom
Length scintillator
(mm)
Length rod detector
(mm)
Length shielding
(mm)
Dismantling
from above
ID no. Weight
approx.
(kg)
s A B C X
500 900 620 655 590 1000 42744-050 110
1000 1400 1120 1155 1090 1500 42744-100 195
1500 1900 1620 1655 1590 2100 42744-150 280
2000 2400 2120 2155 2090 2600 42744-200 365
