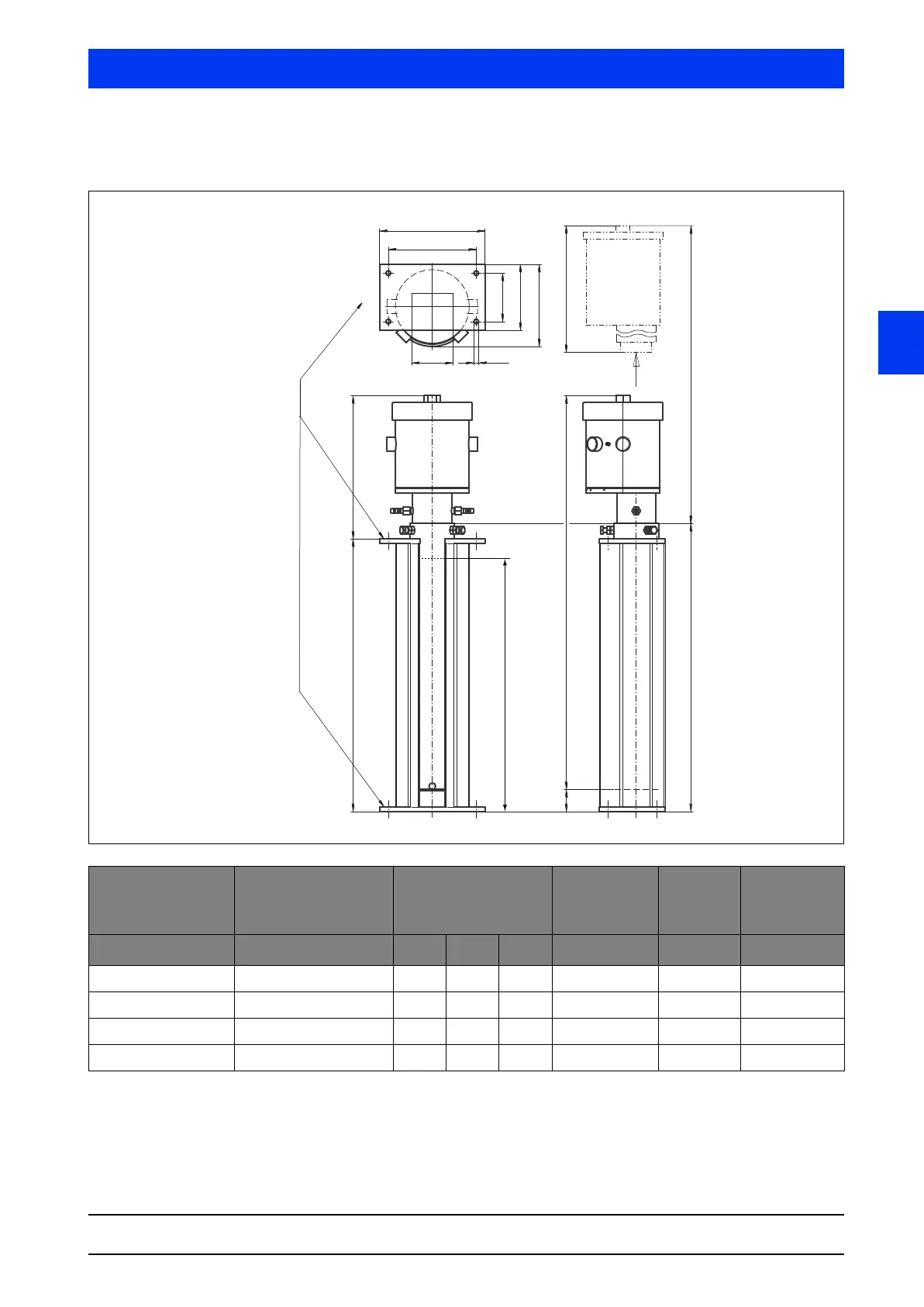

6.2.5 Shielding for Rod Detector with Water Cooling
240
200
110
150
187
ca. 330
X
S
B
A
S
50
Ø 75
B
C
Ø 11
Mounting foot
top/bottom
Length scintillator
(mm)
Length rod detector
(mm)
Length shielding
(mm)
Dismantling
from above
ID no. Weight
approx.
(kg)
s A B C X
500 900 620 655 590 1000 42131-050 100
1000 1400 1120 1155 1090 1500 42131-100 180
1500 1900 1620 1655 1590 2100 42131-150 255
2000 2400 2120 2155 2090 2600 42131-200 330
