Uni-Probe LB 490

BERTHOLD TECHNOLOGIES GmbH & Co. KG

2 – 265

Volume 2 6 Technical Drawings

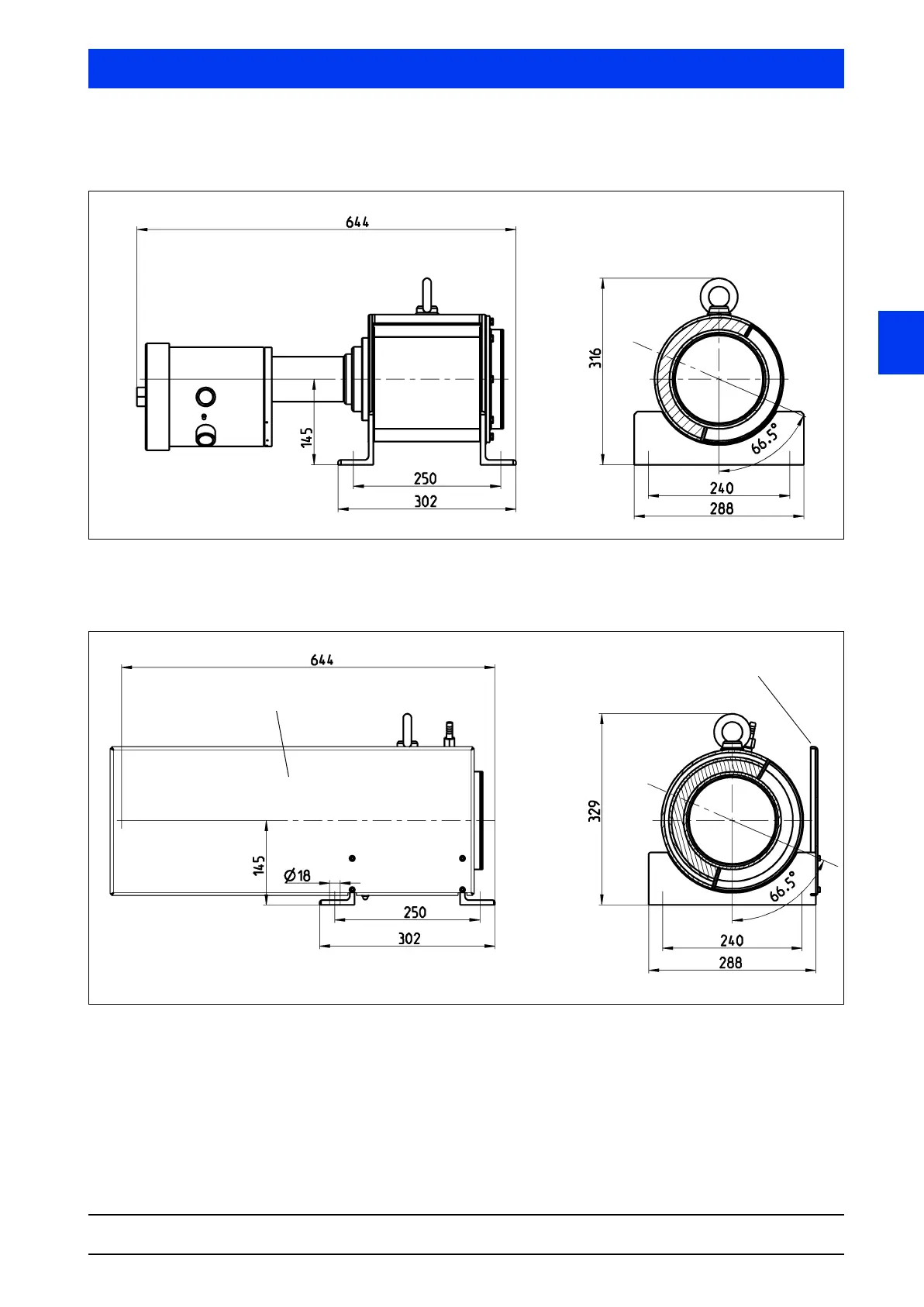

6.3.3 Super-Sens with Radial Irradiation

6.3.4 Super-Sens with Radial Irradiation and Water

Cooling

Weight approx. 45kg

Connection seal for water cooling: ø 10mm /R ¼"

Radial heat protection

Weight approx. 50kg
