4.2.11 CONFIGURATION MEASURE PARAMETER
PULSE RATE LIMITS

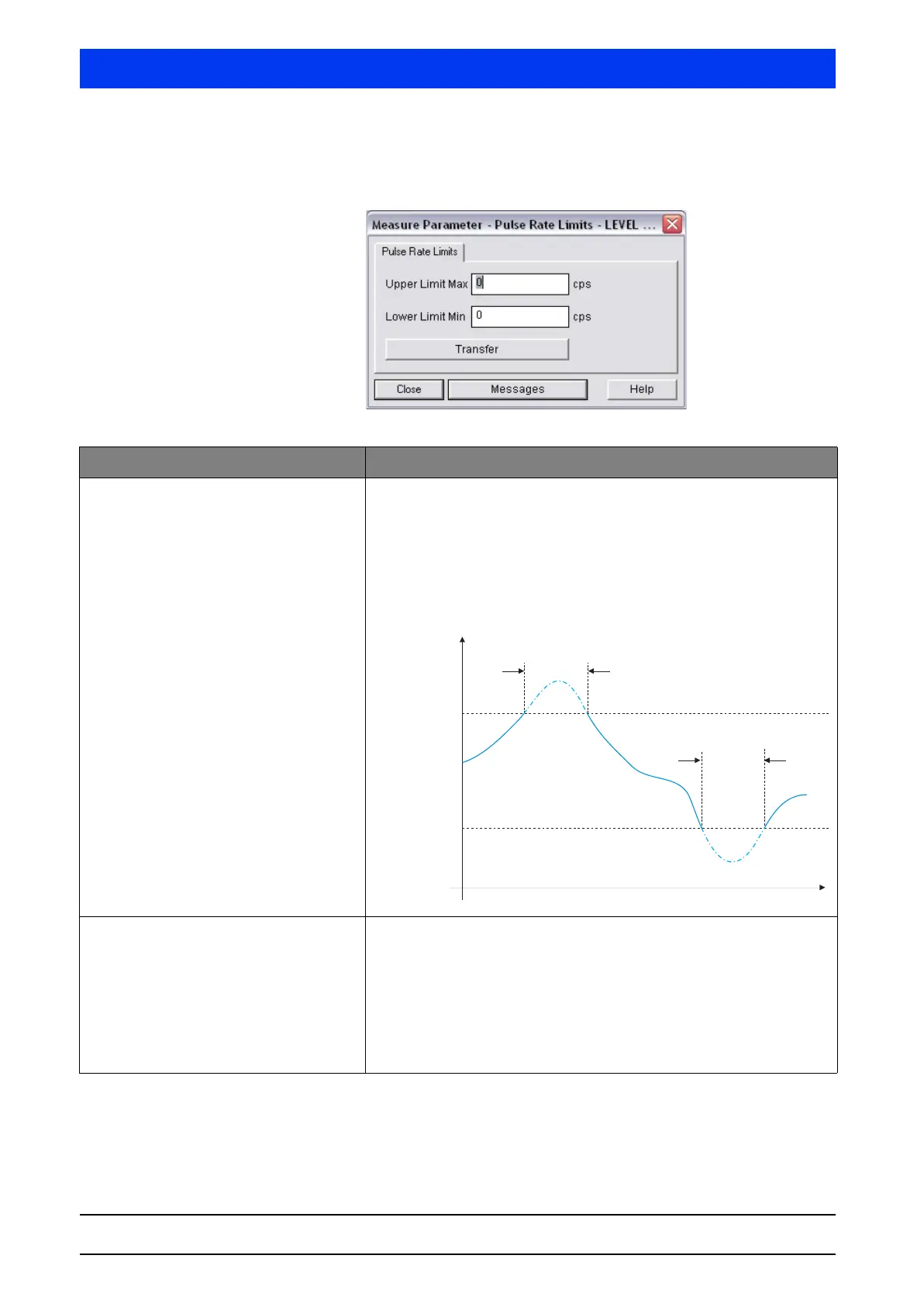

Enter the parameters in the text boxes of the MEASURE
PARAMETER - DAMPING DATA
/ PULSE RATE LIMITS dialog box.
Parameters Description
Up. limit Upper pulse rate limit
Enter “0” to disable this function. This function is enabled only for special
applications. Enter a value unequal to zero to enable the upper threshold.
If the current pulse rate exceeds the upper threshold, the measurement is
halted until the pulse rate has dropped below this threshold again. If the
measurement is stopped, the measured value display and the current out-
put are held. The count rate where switching takes place is the current
non-averaged count rate.
Lo. limit Lower pulse rate limit.
This function is enabled only for special applications. In all other cases the
function is disabled by entering “0”.
Enter a value unequal to zero to enable the lower threshold. If the current
count rate falls below the lower threshold, the measurement is halted
until the count rate threshold is exceeded again. If the measurement is
stopped, the measured value display and the current output are held. The
count rate where switching takes place is the current non-averaged count
rate.
Up. limit
Lo. limit
Measurement
halted
Measure-
ment halted
CPS
t
