Configuring Instrument Settings
Item Function

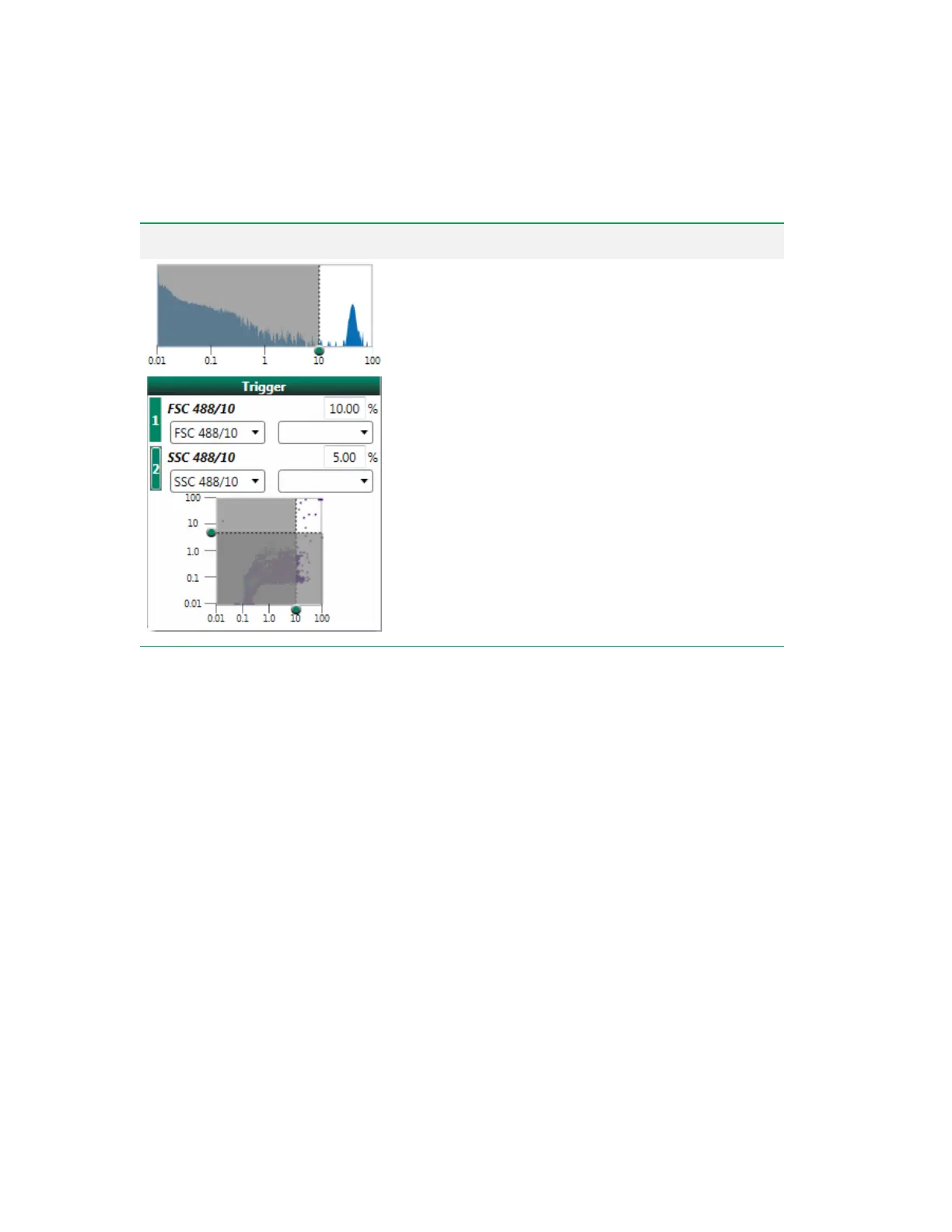

Current threshold position
(threshold plot) — this live data
plot shows all the data seen by the acquisition electronics in
the trigger parameter. The current threshold position is
indicated by the dotted line. Although the threshold plot shows
every event measured in this detector, events below the
threshold are not saved in the data file.
If two triggers are selected, the primary trigger threshold is
indicated by the vertical dotted line and the secondary trigger
threshold is indicated by the horizontal dotted line.
Table 38. PMT and Laser Control Items, continued
User Guide | 261
