BRP Evinrude E-TEC G2 - Ignition System Circuit Diagram

Electrical and Ignition
Ignition System
121
6

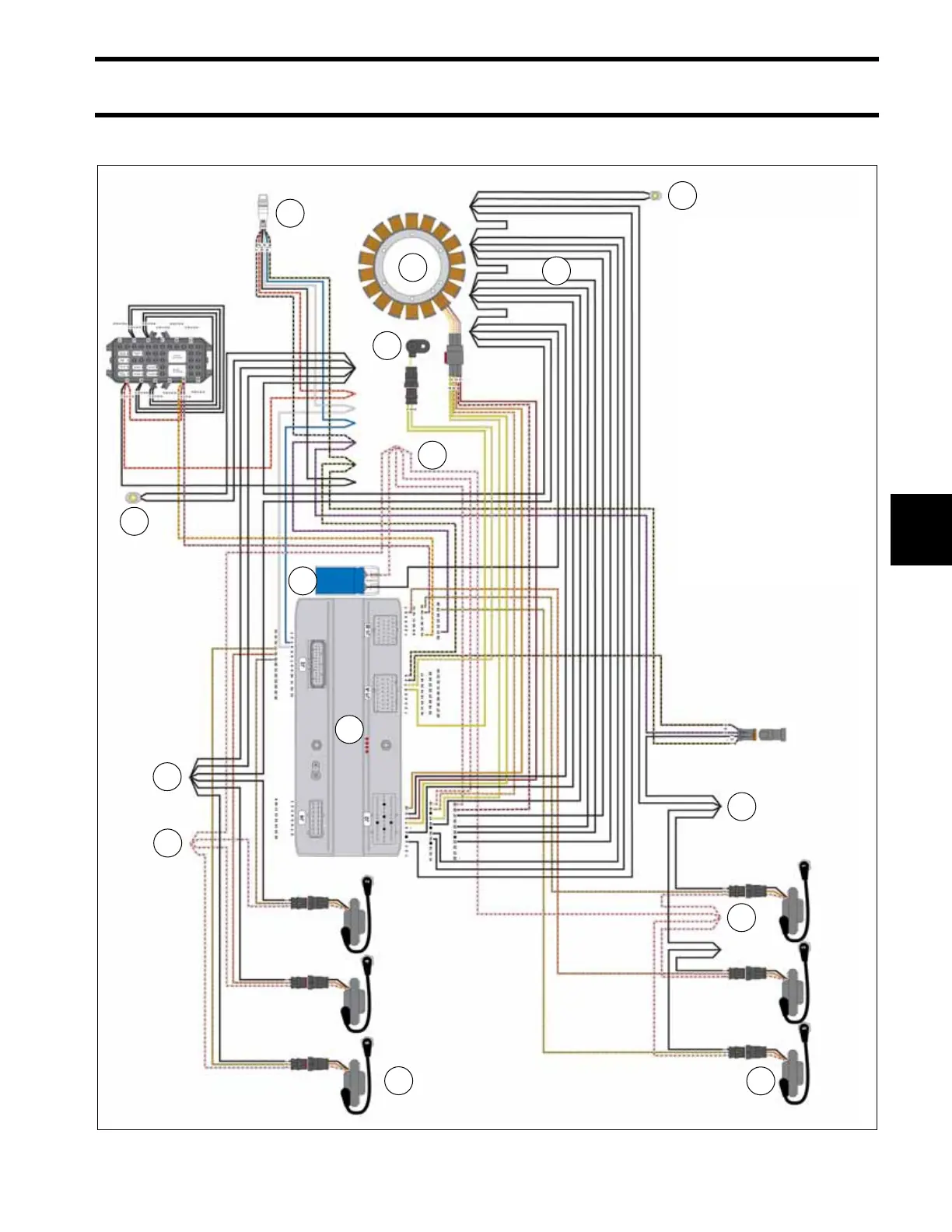

Ignition System Circuit Diagram
1
1
2
6
4
5
5
7
8
9
3
5
3
9
3
1. Ignition Coils
2. EMM
3. 55V Circuit
4. Capacitor
5. Grounds (Negative)
6. Crankshaft Position Sensor
7. Stator
8. Remote Control Private
Network (Stop Circuit)
9. Main Harness Grounds
009330
