Engine Cover and Frame Service
Frame Removal
64
Frame Removal
Starboard, Port, and Front Frame
Removal

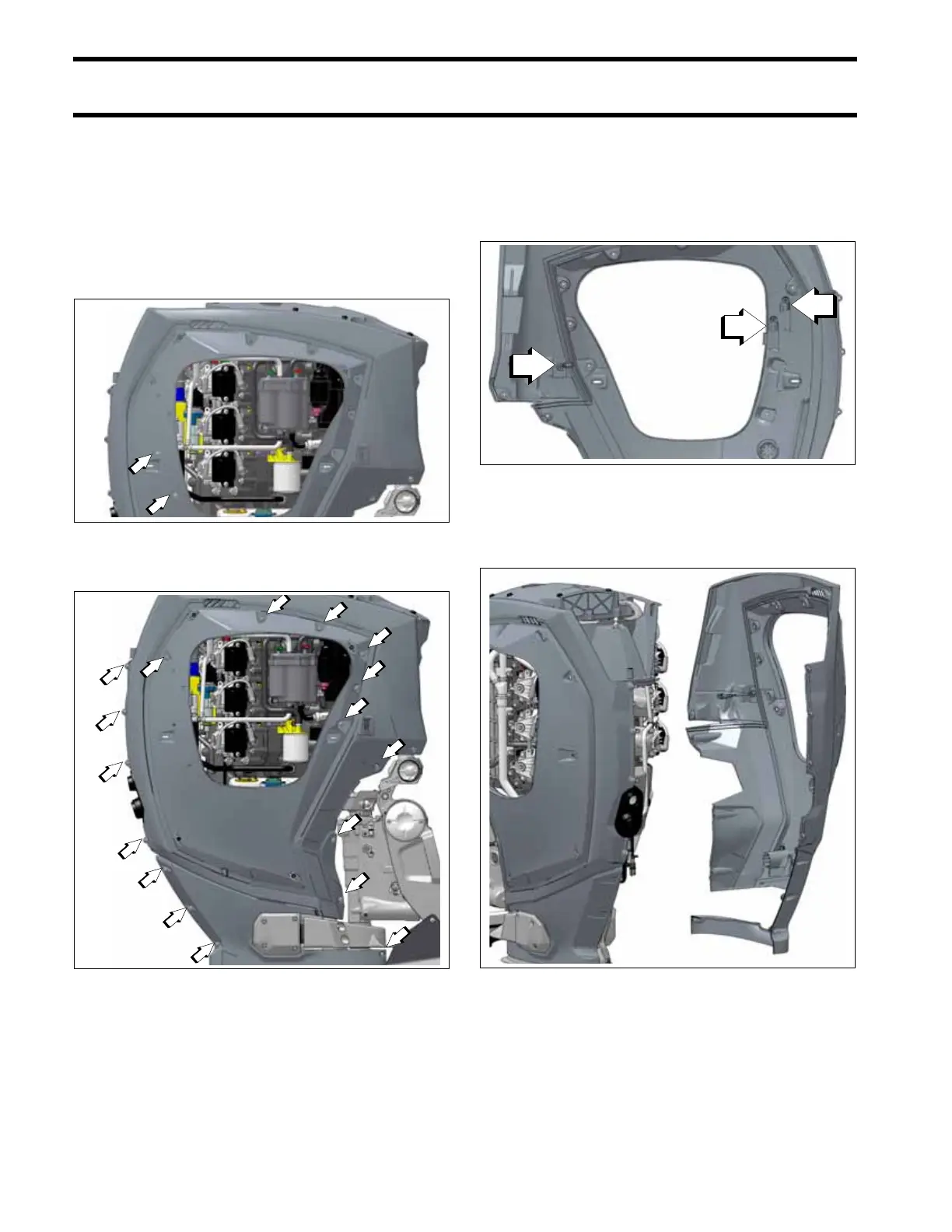

Use a #2 Posi-drive screwdriver to remove two
self-tapping screws which retain the gearcase oil
reservoir.
Remove the 17 starboard frame screws.
Pull the starboard frame slightly away from the
center frame.
Disconnect the trim and tilt switch connector.
Remove the two Deutsch connectors from their
protective caps.
Remove the starboard frame and lower exhaust
housing cover.
5008559_12A
5008559_12
1. Trim and Tilt connector
2. Protective caps
5008559_17
5008559_16
