73
Engine Cover and Frame Service
Frame Installation
3

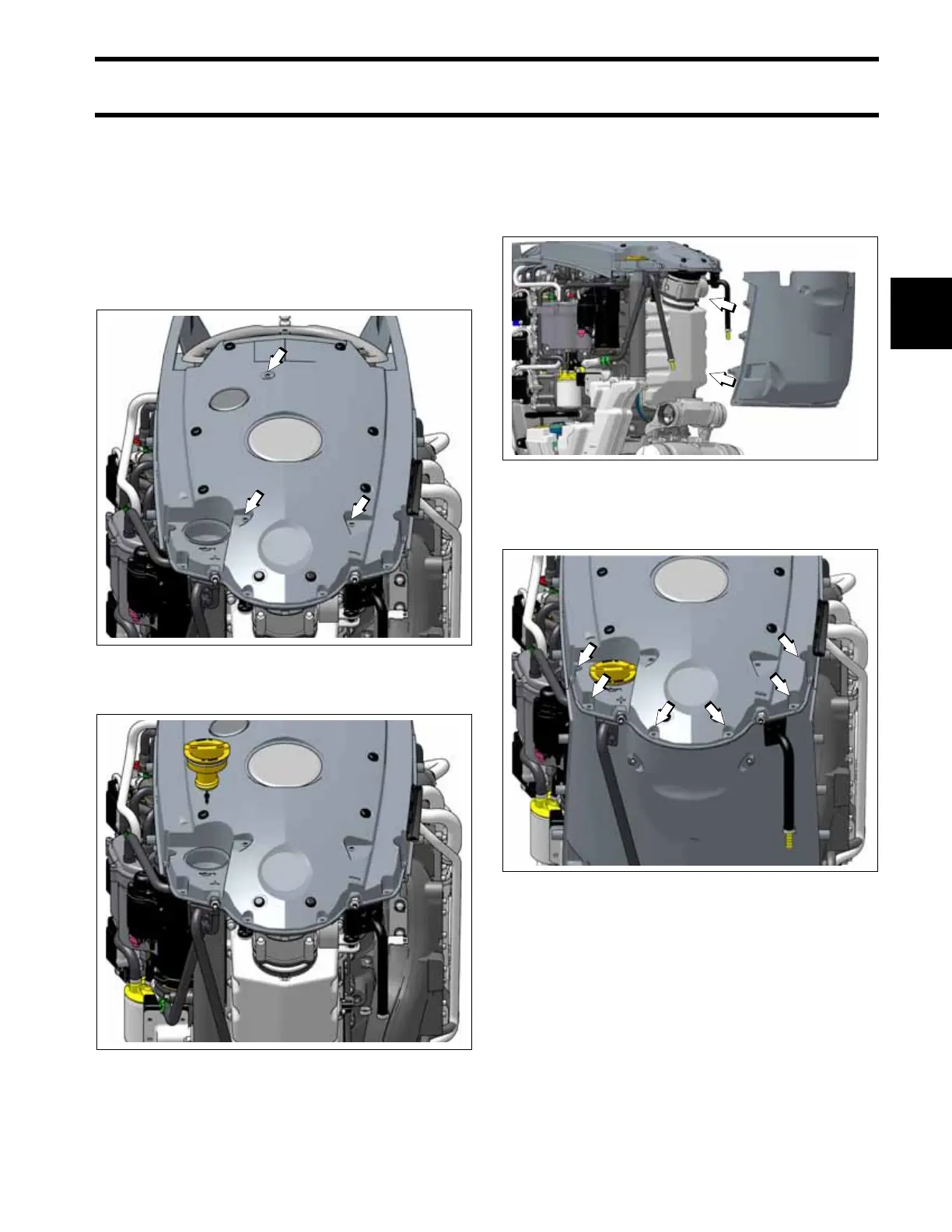

Use a #2 Posi-drive screwdriver and install the
center frame screws.
IMPORTANT: Turn self-tapping screws counter
clockwise to start the threads and clockwise to
tighten. Failure to follow this procedure can dam-
age the threads of the center frame mounts.
Tighten the screws securely.
Install the oil fill cap.
Front, Port, and Starboard Frame
Installation
Place the frame on the front of the powerhead.
insert the rigging grommets in to the frame.
Install the six front frame screws, tighten to a
torque of 18 to 30 in. lbs. (2 to 3 N·m).
5008559_25
5008559_26
5008559_24
5008559_23
